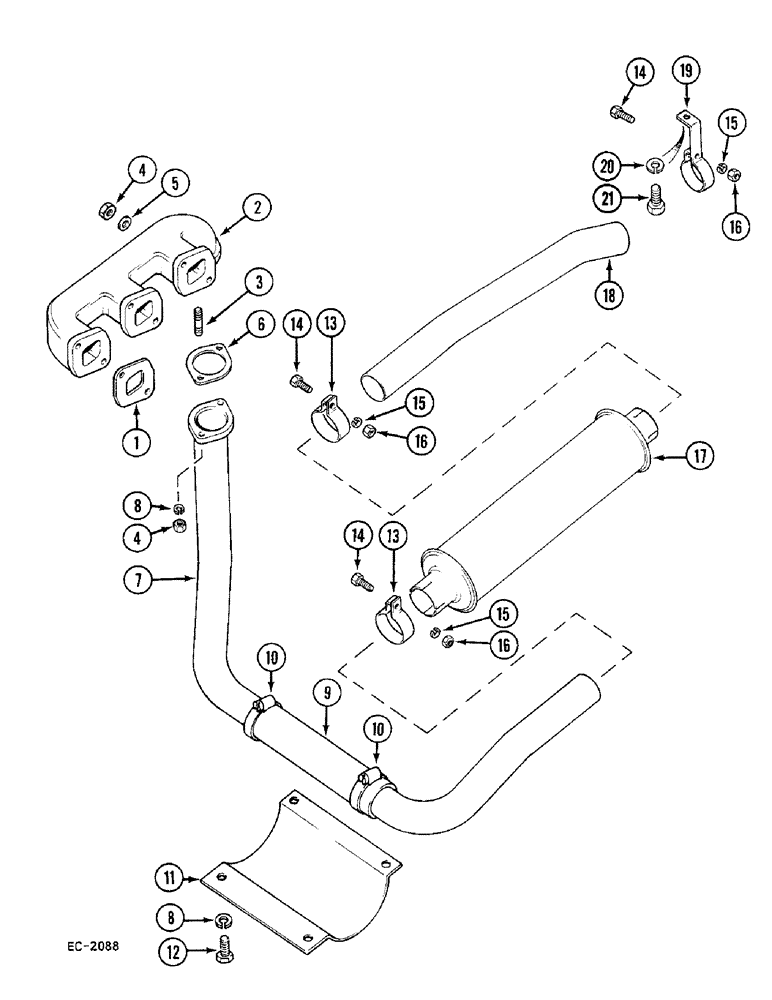

Запчасти Case 380B (2-28) - UNDERSLUNG EXHAUST, PRIOR TO P.I.N. 18001 (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

3шт.

2

3055124R12

MANIFOLD ASSY

MANIFOLD - exhaust, Includes: Ref. 3

1шт.

3

3055663R1

STUD

- exhaust manifold

2шт.

4

103026

NUT,3/8"-24, G5

8шт.

5

20285H

WASHER

- plain, 13/32 x 3/4 x 7/64 inch

6шт.

6

401486R1

MANIFOLD GASKET

- exhaust manifold pipe

1шт.

7

401485R12

PIPE ASSY.

PIPE - exhaust manifold

1шт.

8

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Includes: Ref. 9, 10 3/8"

6шт.

9

114614C1

SHIELD

- fibreglass heat

1шт.

10

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP - hose, no. 32, type F

2шт.

11

401488R1

GUARD

- pipe

1шт.

12

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

13

67672C1

CLAMP

- pipe

2шт.

14

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

- hex, 3/8 NC x 1-1/8 inch

3шт.

15

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

16

120377

NUT,3/8" - 16, Gr 5

3шт.

17

401489R2

MUFFLER

1шт.

18

401490R2

PIPE

- tail

1шт.

19

3125262R1

SUPPORT

- tail pipe rear

1шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

413-1014

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

- hex, 5/8 NC x 7/8 inch

1шт.
