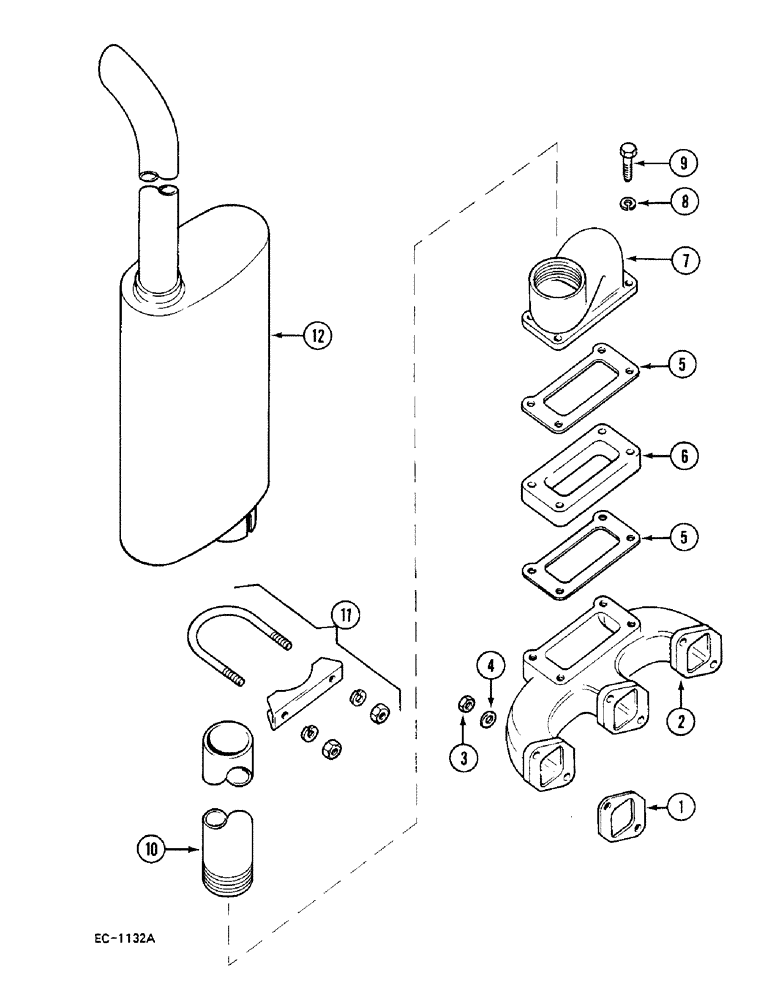

Запчасти Case 380B (2-26) - VERTICAL EXHAUST (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

3шт.

2

3121373R3

MANIFOLD

- exhaust

1шт.

3

103026

NUT,3/8"-24, G5

6шт.

4

20285H

WASHER

- plain, 13/32 x 3/4 x 7/64 inch

6шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

2шт.

6

3125792R1

SPACER

- manifold

1шт.

7

3136250R1

ELBOW

- exhaust manifold

1шт.

8

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

10

80547C1

TUBE

KIT - service, exhaust pipe, includes pipe and instructions

1шт.

NSS

NOT SOLD SEPARAT

PIPE - exhaust

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - fitting

1шт.

10

379661R1

PIPE

- exhaust extension (With ROPS canopy)

1шт.

11

1502294C1

CLAMP

- muffler, U-type

1шт.

12

83027C1

MUFFLER

- exhaust, curved end

1шт.

Ref. 12 (P/N 83027C1) - SB 038-87 - Vertical muffler and extension pipe

1шт.

12

83028C1

MUFFLER

- exhaust, curved end, Serial Range: (Optional-83027C1)

1шт.
