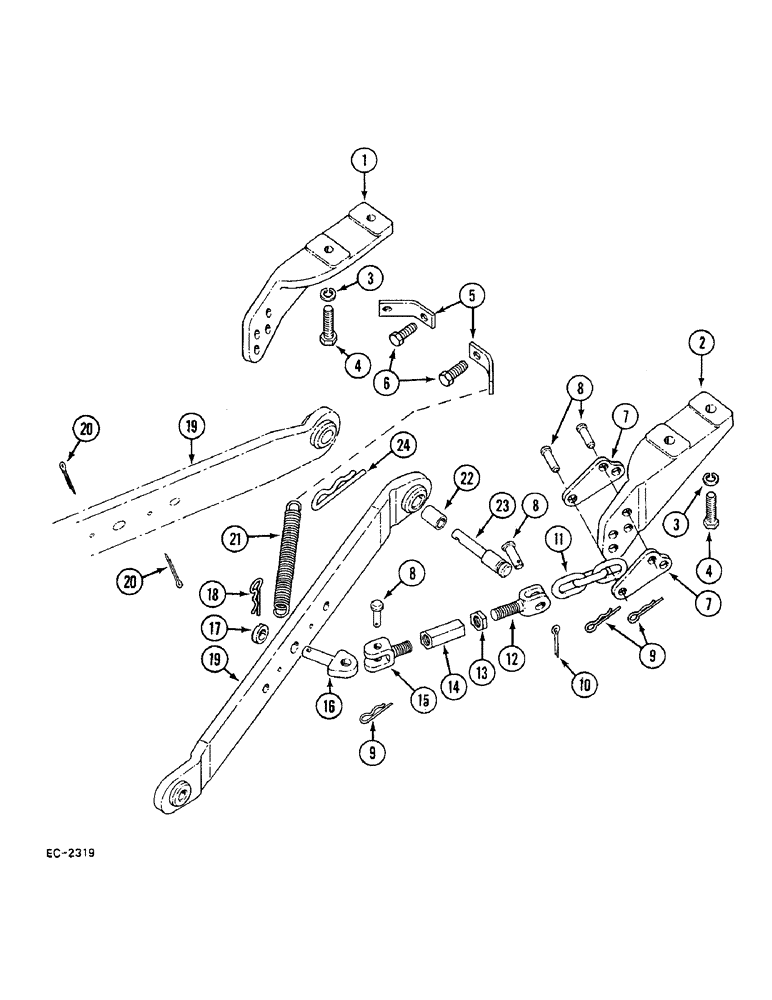

Запчасти Case 380B (9-306) - LOWER LINKS, THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

1

529874R1

SUPPORT

BRACKET - check chain, left

1шт.

2

529875R1

SUPPORT

BRACKET - check chain, right

1шт.

3

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

5

3121228R1

BRACKET

- sway chain

2шт.

6

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch

2шт.

7

3129005R1

SUPPORT

STRAP - check chain adjusting

4шт.

8

528112R2

PIN,15.77mm OD x 54.61mm L

- clevis

8шт.

9

720631R1

LINCH PIN

PIN - cotter

6шт.

10

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

11

3129007R1

CHAIN (AG)

CHAIN - limiter

2шт.

12

70622C1

CLEVIS,7/8" - 14

- limiter chain

2шт.

13

219754

BACK-UP RING

- hex jam, 7/8 inch NF

2шт.

14

3113596R1

NUT

- adjustment

2шт.

15

3118016R1

CLEVIS,7/8" - 14

- limiter chain, left thread

2шт.

16

3129014R1

EYEBOLT

BOLT - eye, rear stabilizer

2шт.

17

529894R1

WASHER

- adjustable eyebolt

2шт.

18

529895R1

CLIP

PIN - spring

2шт.

19

1286791C91

LOWER LINK

LINK - lower, 1-3/8 inch implement ball, Includes: Ref. 20

2шт.

20

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

4шт.

21

662632R1

SPRING

- check chain restraining

2шт.

22

530826R1

BUSHING

- lower link

2шт.

23

530825R1

PIN,31.75mm OD x 119.84mm L

- lower link

2шт.

24

538406R1

COTTER PIN

PIN - cotter, quick attachable

2шт.
