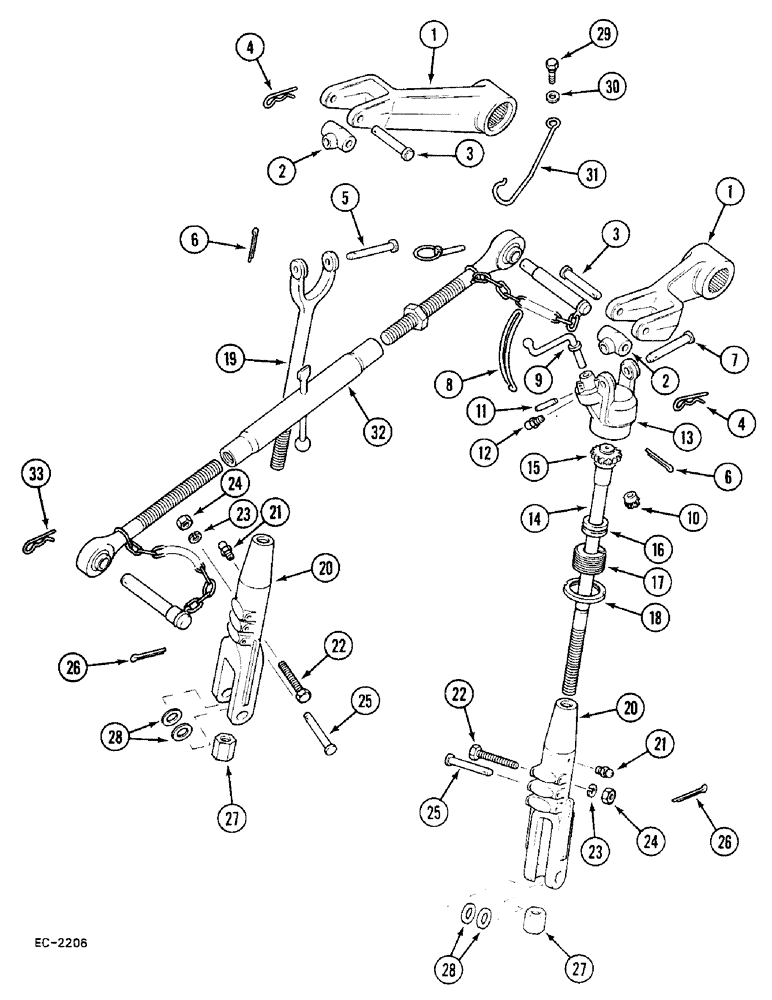

Запчасти Case 380B (9-302) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

1

402634R2

ROCKER ARM

ARM - rockshaft

2шт.

2

539247R1

BRACKET, PIVOT

SWIVEL - levelling screw

2шт.

3

3044309R1

PIN

- rockshaft arm

2шт.

4

720631R1

LINCH PIN

PIN - cotter

2шт.

5

3044309R1

PIN

- rockshaft arm

1шт.

6

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

3069069R1

PIN

- headed, 5/8 x 3-3/4 inch

1шт.

8

3072424R1

SPRING

- levelling screw handle

1шт.

9

527943R1

CRANK

HANDLE - levelling screw

1шт.

10

3069063R1

GEAR

- pinion

1шт.

11

142506

LATCH

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

13

3072422R1

HOUSING

- levelling screw

1шт.

14

69984C91

SCREW

- levelling

1шт.

14

69991C91

SCREW

- levelling (Optional to 69984C91) Includes: Ref. 15

1шт.

15

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

- bearing (With levelling screw 69991C91)

1шт.

16

3044346R91

BALL BEARING

BEARING - levelling screw

1шт.

16

3044347R91

THRUST BEARING

BEARING - levelling screw, Serial Range: (Optional-3044346R91)

1шт.

16

3044348R91

BEARING, THRUST

BEARING - levelling screw, Serial Range: (Optional-3044346R91)

1шт.

16

3068049R91

BALL BEARING

BEARING - levelling screw, Serial Range: (Optional-3044346R91)

1шт.

17

3069064R1

BEARING

- levelling screw

1шт.

18

3069065R1

LOCK NUT

- levelling screw bearing

1шт.

19

527967R1

CLEVIS,7/8" - 9

YOKE - lift link, left

1шт.

20

3121964R1

HOUSING

- lift link yoke

2шт.

21

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, straight drive type, 1/4 inch

2шт.

22

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

23

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

25

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

PIN - float stop

2шт.

26

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

27

527937R1

NUT

- lift link

2шт.

28

575814R1

WASHER

- plain, 0.781 x 2 x 0.105 inch

4шт.

29

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

BOLT - Shoulder

1шт.

30

23042R1

WASHER

- flat, 17/32 x 1 x 1/32 inch

1шт.

31

530050R3

CLIP,ELECTRICAL

CLIP - upper link storage

1шт.

32

528085R91

UPPER LINK

LINK - upper (See page 9-304)

1шт.

32

1328188C91

LINK

- upper (Optional to 528085R91) (See page 9-304)

1шт.

33

530049R1

CLIP, SPRING

PIN - cotter, quick attachable

1шт.
