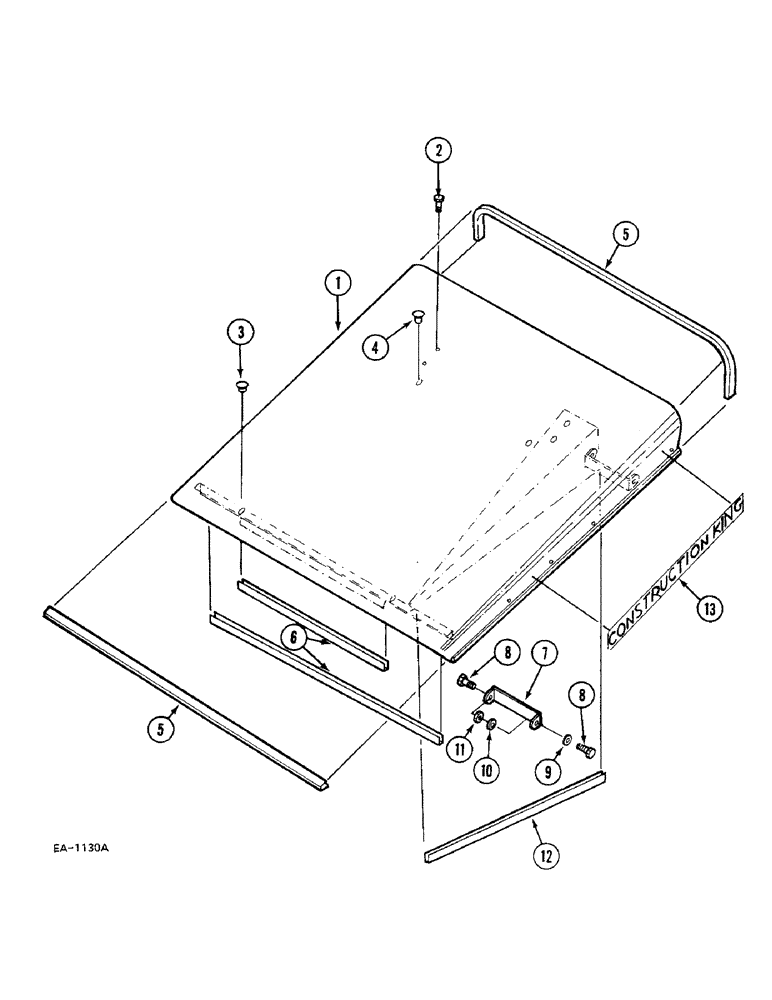

Запчасти Case 380B (9-296) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

118375C4

TOP

ROOF - canopy

1шт.

1

1281633C2

TOP

ROOF - canopy, Serial Range: (Optional-118375C1)

1шт.

2

28672R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch (See Figure 9-294)

8шт.

3

1332024C1

PLUG,5/8"

Restraining cable 5/8"

2шт.

4

3123992R1

PLUG

- 7 MM, canopy blanking, without headliner trim

2шт.

5

NSS

NOT SOLD SEPARAT

STRIP - trim (Cut from 118483C2) canopy with sheared front and rear edges

2шт.

5

118483C1

STRIP, METERS

STRIP - roof trim, bulk length

1шт.

6

NSS

NOT SOLD SEPARAT

STRIP - trim (Cut from 1327666C1)

2шт.

6

1327666C1

SEAL

STRIP - trim, bulk length 50 foot roll

1шт.

7

118531C2

BRACKET

- stabilizer

4шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

9

120392

WASHER,1/4", SAE

- flat, 1/4 inch

4шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

11

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

12

NSS

NOT SOLD SEPARAT

STRIP - trim (Cut from 118524C2)

2шт.

12

118524C2

SEALING STRIP

STRIP - trim

1шт.

13

D123950

DECAL

- canopy roof (Construction King)

2шт.
