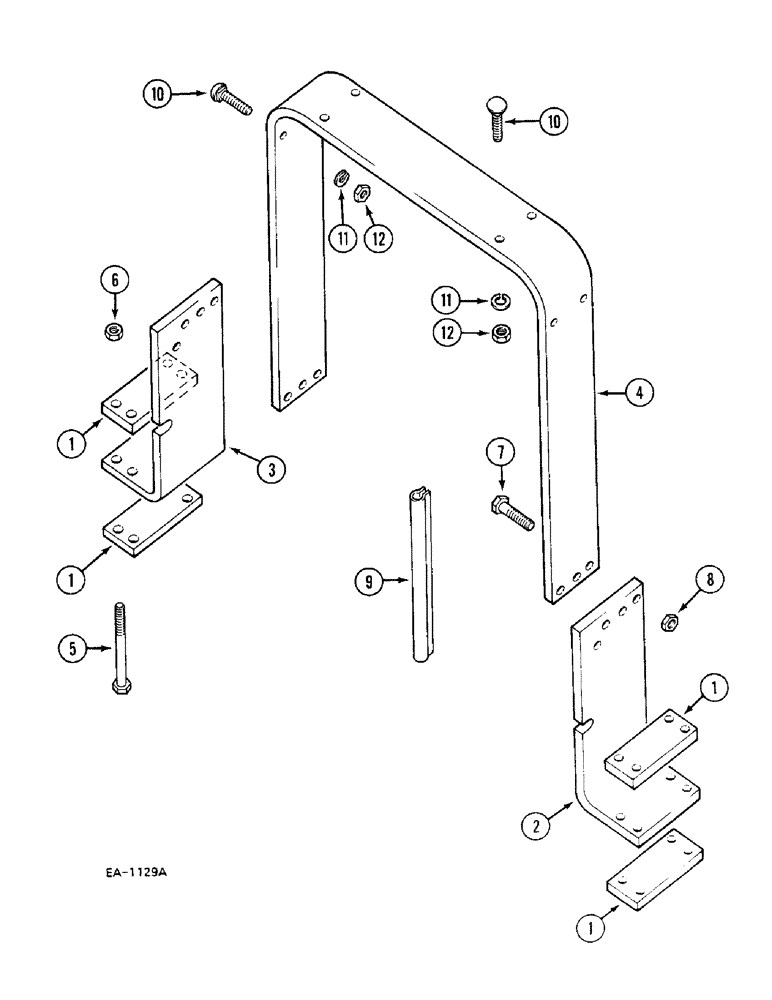

Запчасти Case 380B (9-294) - ROLL OVER PROTECTION FRAME (09) - CHASSIS/ATTACHMENTS

1

118309C1

PLATE

- clamp

4шт.

2

118306C1

SUPPORT

- lower mounting, left

1шт.

3

118307C1

SUPPORT

- lower mounting, right

1шт.

4

118377C2

FRAME

BAR - roll over protection structure

1шт.

5

1500799C1

BOLT,Spcl, Hex, 3/4" - 10 x 10", Type 8

- special

8шт.

6

22049R1

NUT,3/4"-10, G8

- hex, 3/4 inch NC

8шт.

7

118425C2

BOLT

- hex, 7/8 NC x 2-3/4 inch

6шт.

8

23831R1

NUT,7/8"-9, G8

- hex, 7/8 inch NC

6шт.

9

1286896C1

STRIP

CHANNEL - conduit, ROPS bar trim, with ROPS canopy

2шт.

10

28672R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch, with ROPS canopy

8шт.

11

120384

WASHER,1/2"

LOCK, , With ROPS canopy 1/2"

8шт.

12

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , with ROPS canopy 1/2"-13, G5

8шт.
