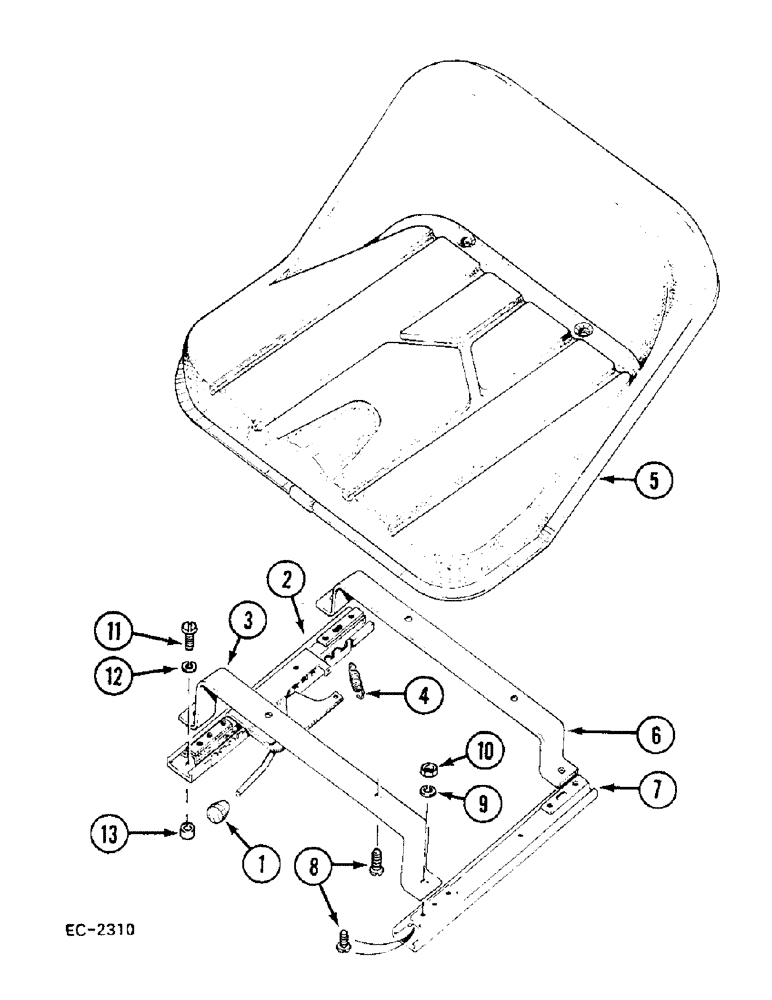

Запчасти Case 380B (9-290) - SEAT, NON-SUSPENSION, LCG TRACTORS (09) - CHASSIS/ATTACHMENTS

3121641R91

SEAT ASSY.

SEAT - static, Includes: Ref. 1 - 10

1шт.

1

538693R1

BUTTON

KNOB

1шт.

2

825199C91

SLIDE

RAIL - slide, right (With adjuster)

1шт.

3

3121642R1

SUPPORT

BRACKET - front mounting

1шт.

4

538694R1

SPRING

1шт.

5

538026R1

SEAT ASSY.

SEAT - pan

1шт.

6

3121643R1

SUPPORT

BRACKET - rear mounting

1шт.

7

825198C1

RAIL

- slide, left

1шт.

8

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

12шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

10

120376

NUT,5/16"-18, G5

4шт.

11

3123563R1

SCREW

- 5/16 NC x 1-1/2 inch

4шт.

12

3123564R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

13

3123562R1

SPACER

- seat

4шт.
