(9-288) - SUSPENSION SEAT, DELUXE, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, BOSTROM, SUSPENSION UNIT

Запчасти Case 380B (9-288) - SUSPENSION SEAT, DELUXE, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, BOSTROM, SUSPENSION UNIT (09) - CHASSIS/ATTACHMENTS

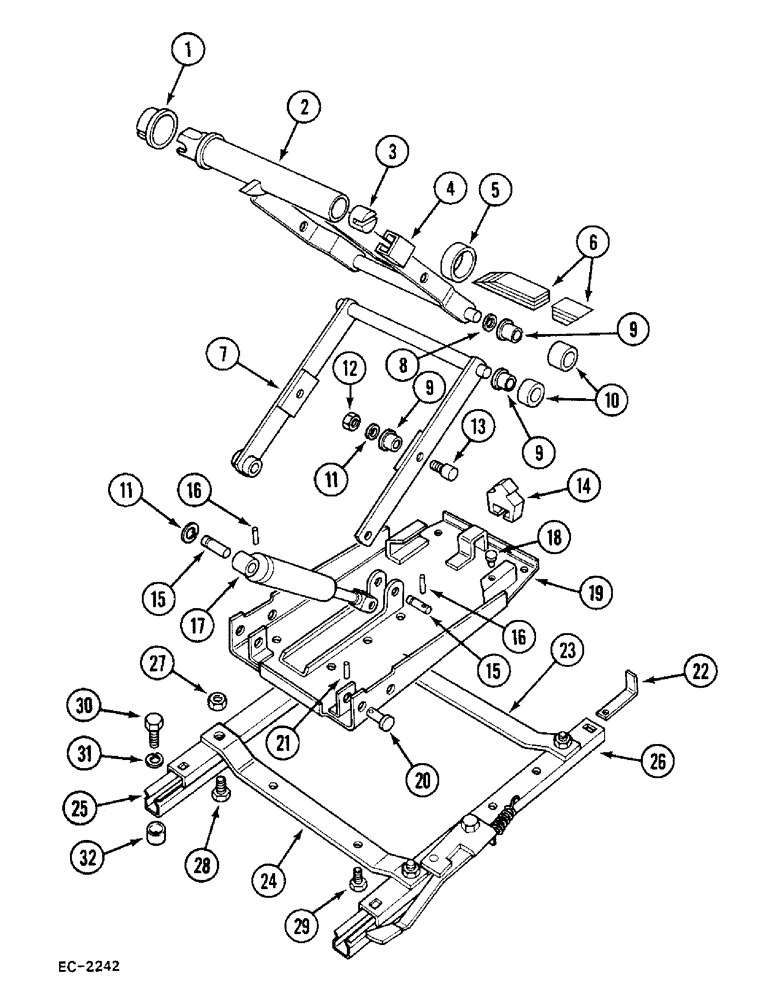

Схема запчастей Case 380B - (9-288) - SUSPENSION SEAT, DELUXE, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, BOSTROM, SUSPENSION UNIT (09) - CHASSIS/ATTACHMENTS
12
6
29
30
28
24
3
1
5
8
15
16
23
13
18
19
16
32
2
9
21
25
7
10
31
11
4
11
14
27
15
9
20
9
22
26
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

98137C92

SEAT

- deluxe suspension, PVC, Includes: Ref. 1 - 29

1шт.

1

3123316R1

BUSHING

BEARING - 4 MM

1шт.

2

3123315R1

LEVER

- centre

1шт.

3

3220529R1

RETAINER

1шт.

4

3220519R1

STOP

- limit

2шт.

5

3109331R1

FLANGED BEARING

BEARING

1шт.

6

3129922R1

BAR

- torsion (Set of 5)

1шт.

7

3220517R1

ARM

LEVER - outer

1шт.

8

538565R1

WASHER

4шт.

9

3123319R1

BUSHING

BEARING

4шт.

10

3123320R1

ROLLER BEARING

4шт.

11

934309R1

LOCK WASHER,M8

WASHER - lock, 8 MM

4шт.

12

934109R1

NUT

- hex, 4 MM

2шт.

13

3123321R1

PIVOT PIN

PIN - pivot

2шт.

14

3220516R1

STOP

BUMPER - rubber

1шт.

15

538578R1

PIN

- damper

2шт.

16

538579R1

PIN, ROLL

PIN - roll

2шт.

17

3123329R1

SHOCK ABSORBER

DAMPER

1шт.

18

3123308R1

BUMPER

BUTTON - bumper

2шт.

19

3220524R1

PLATE

- base

1шт.

20

3123318R1

PIVOT PIN

PIN - pivot

2шт.

21

3125165R1

PIN, ROLL

PIN - roll, 3 MM

2шт.

22

3123376R1

BRACKET

- stop

1шт.

23

3123306R1

BRACKET

STRAP - mounting, rear

1шт.

24

3123305R1

BRACKET

STRAP - mounting, front

1шт.

25

3123304R1

RAIL

- slide, right free

1шт.

26

3123303R1

RAIL

- slide, left adjustable

1шт.

27

43362

NUT,M8 x 1.25, Cl 10

- lock, 8 MM

4шт.

28

30001R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, M8 x 16 MM

2шт.

29

931237R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

BOLT - hex socket, M8 x 20 MM

4шт.

30

3123563R1

SCREW

- 5/16 NC x 1-1/2 inch

4шт.

31

3123564R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

32

3123562R1

SPACER

- seat

4шт.
