(9-286) - SUSPENSION SEAT, DELUXE, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, BOSTROM, PVC COVERED

Запчасти Case 380B (9-286) - SUSPENSION SEAT, DELUXE, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, BOSTROM, PVC COVERED (09) - CHASSIS/ATTACHMENTS

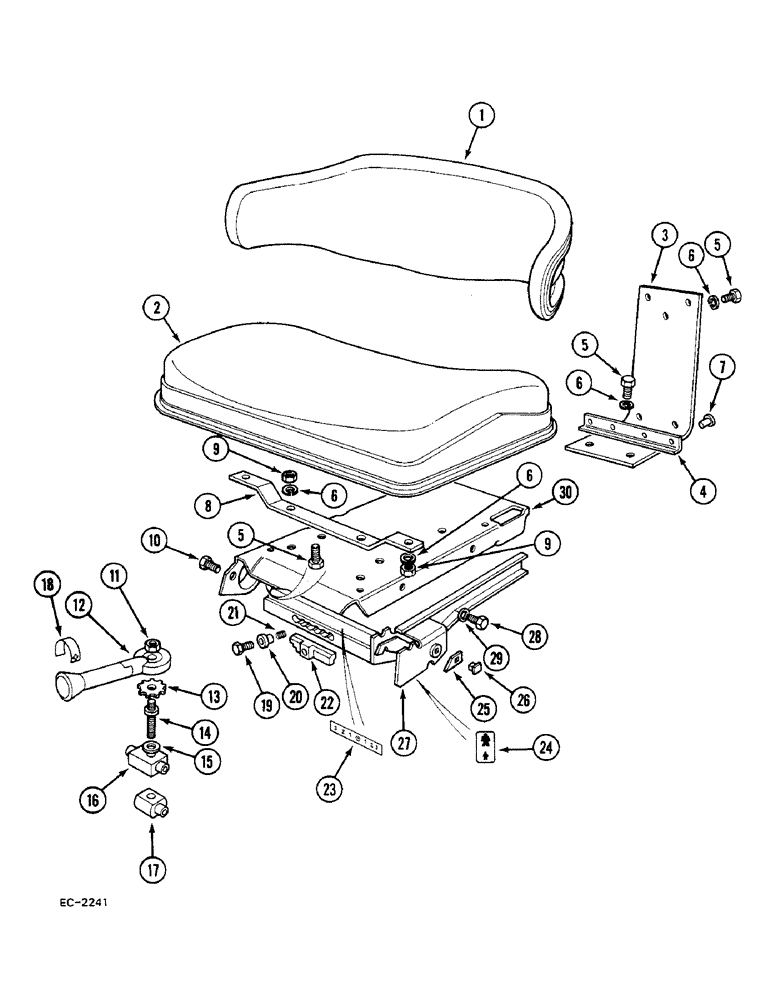

Схема запчастей Case 380B - (9-286) - SUSPENSION SEAT, DELUXE, WITH FORE AND AFT AND HEIGHT ADJUSTMENT, BOSTROM, PVC COVERED (09) - CHASSIS/ATTACHMENTS
11
16
9
3
17
19
8
1
15
18
4
30
22
25
10
23
5
6
5
6
5
6
9
2
29
13
12
24
28
21
14
20
6
26
7
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

98137C92

SEAT

- deluxe suspension, PVC, Includes: Ref. 1 - 30

1шт.

1

98139C1

CUSHION

- back, PVC

1шт.

2

98138C1

CUSHION

- seat, PVC

1шт.

3

3123331R2

SUPPORT

- seat back

1шт.

4

3125164R1

BRACKET

1шт.

5

30001R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, M8 x 16 MM

9шт.

6

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

7

3125163R1

RIVET

- pop

4шт.

8

3123334R1

SUPPORT

BRACKET - seat tilt

4шт.

9

934109R1

NUT

- hex, 4 MM

4шт.

10

3123312R1

SCREW

- taptite

1шт.

11

3123326R1

NUT

- clamp

1шт.

12

3123327R1

HANDLE

1шт.

13

538570R1

GEAR

1шт.

14

3123325R1

BOLT

- adjuster

1шт.

15

3123322R1

THRUST WASHER

WASHER - thrust

1шт.

16

3123323R1

TRUNNION

- adjuster (Large)

1шт.

17

3123324R1

TRUNNION

- adjuster (Small)

1шт.

18

3220518R1

PRODUCT GRAPHIC

DECAL - (+/-)

1шт.

19

3220548R1

SCREW

BOLT - hex, M6 x 25 MM

1шт.

20

3123309R1

BUTTON

KNOB - slide

1шт.

21

3220537R1

SPRING

- slider

1шт.

22

3123307R1

SLIDE

- seat adjusting

1шт.

23

3220526R1

DECAL

- indicator

1шт.

24

3123311R1

DECAL

- descriptive

1шт.

25

3220525R1

INDICATOR

1шт.

26

538695R1

PLUG

- end

1шт.

27

3123314R1

SHROUD ASSY.

SHROUD - right

1шт.

28

3123317R1

BOLT

2шт.

29

933965R1

LOCK WASHER,M10

2шт.

30

3123313R1

SEAT PLATE

PLATE - top

1шт.
