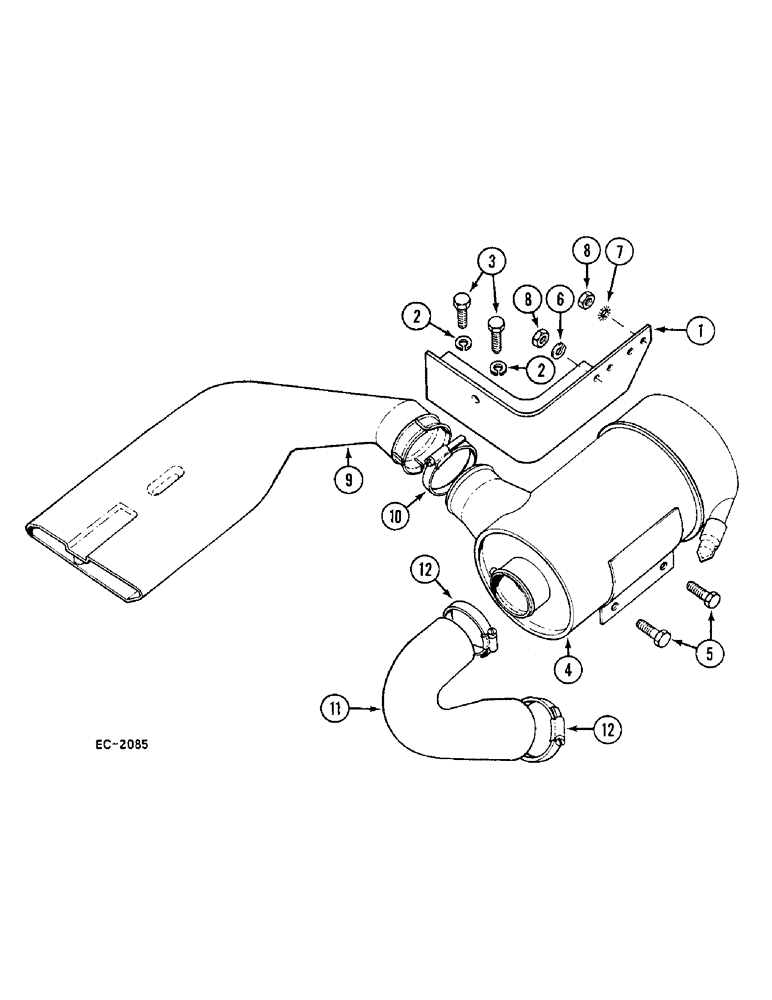

Запчасти Case 380B (2-14) - AIR CLEANER MOUNTING (02) - ENGINE

1

1502064C1

SUPPORT

BRACKET - air cleaner mounting

1шт.

2

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

4

3125250R92

AIR CLEANER

CLEANER - air, Donaldson (See Figure 2-18)

1шт.

4

3125198R94

AIR CLEANER

CLEANER - air, Coopers (See Figure 2-16)

1шт.

4

3125248R94

AIR CLEANER

CLEANER - air, Coopers (See Figure 2-20)

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

6

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, external tooth, 3/8 inch

1шт.

8

120377

NUT,3/8" - 16, Gr 5

2шт.

9

529864R1

DUCT

- air inlet

1шт.

10

21423R1

CLAMP

- hose, 3-5/16 inch

1шт.

11

1502062C1

INTAKE AIR HOSE,63.50 mm ID, 71.12 mm ID x 170.94 mm

HOSE - air cleaner outlet

1шт.

12

539994R1

CLAMP

- hose, 3-5/16 inch

2шт.
