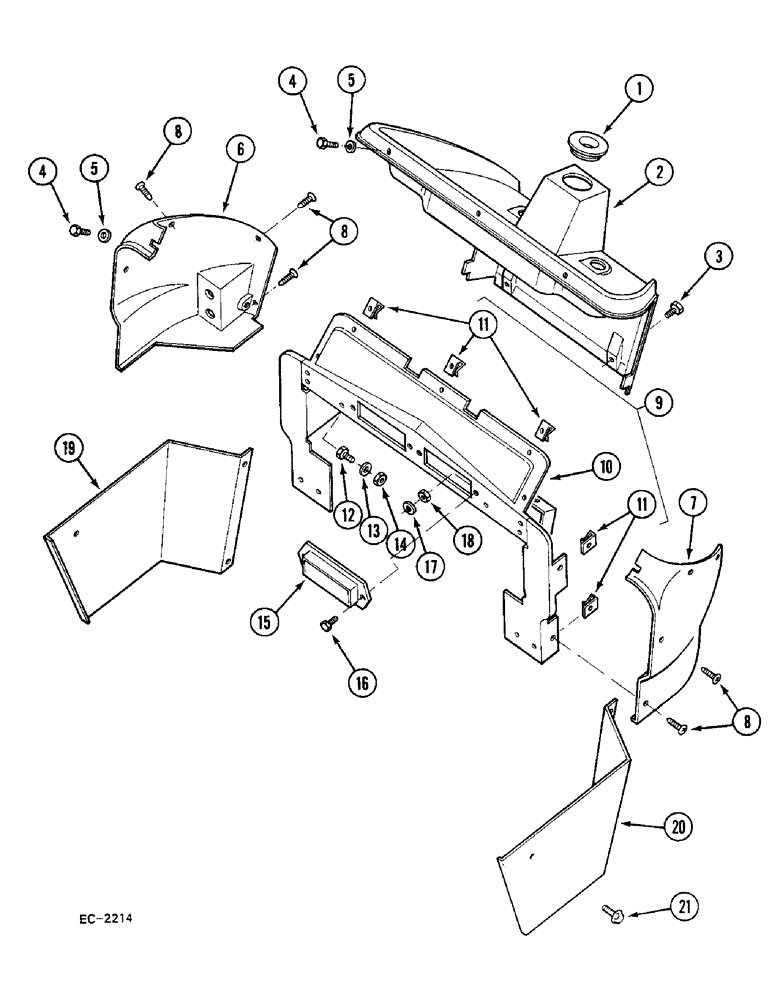

Запчасти Case 380B (9-276) - INSTRUMENT HOUSING AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

3123366R1

PLUG

- rubber (Steering column)

1шт.

2

1500974C3

PANEL, INSTRUMENTS

HOUSING - instrument panel

1шт.

2

1332884C1

PANEL, INSTRUMENTS

HOUSING - instrument panel, with oil pressure gauge and ammeter fit

1шт.

3

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

2шт.

4

23994R1

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

SCREW, SELF TAPPING, Hex Hd, #10 x 5/8"

5шт.

5

120391

WASHER,#10

- plain, no. 10

5шт.

6

3121712R3

HOUSING

- instrument panel side, right

1шт.

7

3121711R1

HOUSING

- instrument panel side, left

1шт.

8

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - phillips pan, tapping, no. 10 x 5/8 inch

10шт.

9

3125771R92

PLATE ASSY.

PLATE - instrument panel support, Includes: Ref. 10, 11

1шт.

10

3121684R4

PLATE

- instrument panel back

1шт.

11

3123171R1

NUT

- captive

7шт.

12

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

13

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

15

NSS

NOT SOLD SEPARAT

BOX - fuse (See Figure 4-94)

1шт.

16

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

2шт.

17

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

19

3121638R1

GUARD

PANEL - lower rear side right

1шт.

20

3121637R1

GUARD

PANEL - lower rear side left

1шт.

21

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

- cap, 1/4 NC x 5/8 inch

6шт.
