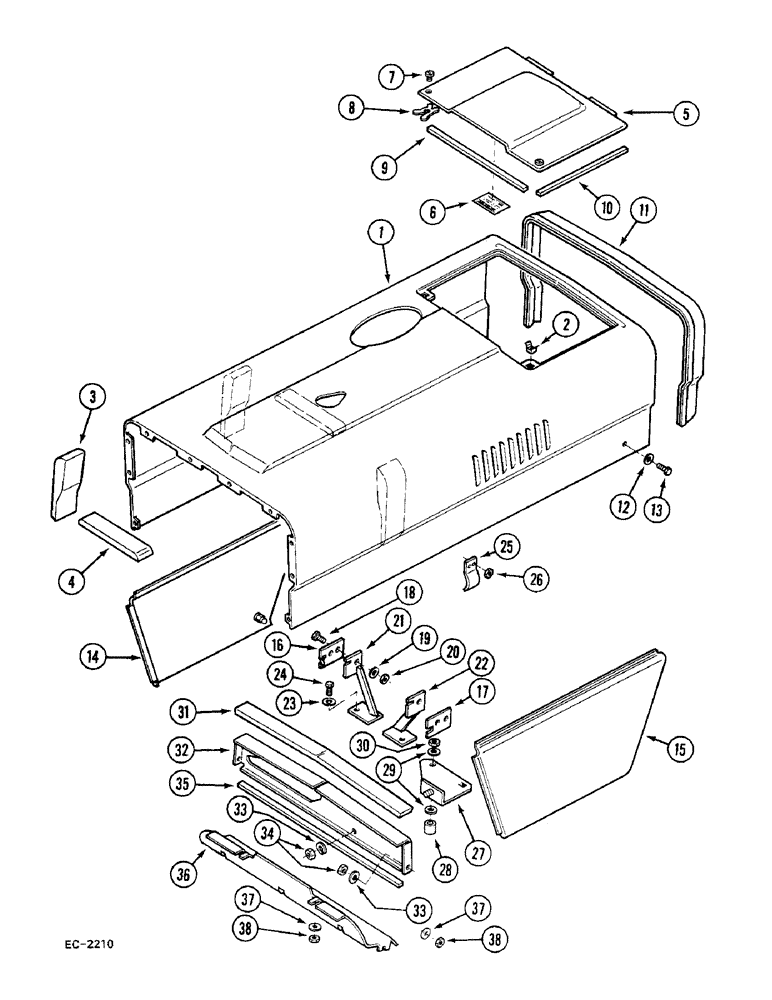

Запчасти Case 380B (9-274) - HOOD AND PANELS (09) - CHASSIS/ATTACHMENTS

1

94192C93

HOOD ASSY.

HOOD - vertical exhaust, 53" long, Includes: Ref. 2 - 4

1шт.

1

99623C93

HOOD ASSY.

HOOD - underslung exhaust, Includes: Ref. 2 - 4

1шт.

2

1502286C1

NUT

- cage floating, 5/16 inch NC

2шт.

3

98935C1

SEAL

- foam hood corner

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL - hood centre, 200 MM (Cut from bulk length)

1шт.

5

1330795C1

COVER

- rear hood (With decal 321-6714) Includes: Ref. 6 - 10

1шт.

6

321-6714

DECAL

- battery jump start

1шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW

2шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - (Optional to 389872R1)

2шт.

8

376787R1

WASHER

- x-type, 0.256 x 0.75 inch

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 10.9 inch (Cut from 1265282C1)

1шт.

9

1265282C1

STRIP

SEAL - bulk length

1шт.

9

73211C1

GASKET

SEAL - bulk length, Serial Range: (Optional-1265282C1)

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rear hood sheet, 17 inch (Cut from 1265282C1)

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - hood sheet, 47.7 inch (Cut from 1265280C1)

1шт.

11

1265280C1

SEAL

- rubber, bulk length, 4 foot roll

1шт.

12

98775C1

WASHER

- flat, 5/16 inch, painted black

2шт.

13

98778C1

BOLT

- hex, 5/16 inch NC, painted black

2шт.

14

94406C1

PANEL

- side, right

1шт.

15

94407C1

PANEL

- side, left

1шт.

16

99642C1

PLATE

- adjustable, right

1шт.

17

99644C1

PLATE

- adjustable, left

1шт.

18

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - carriage, 1/4 NC x 1/2 inch

4шт.

19

120392

WASHER,1/4", SAE

- flat, 1/4 inch

4шт.

20

231-4144

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

21

99627C1

SUPPORT

- side panel, right

1шт.

22

99628C1

SUPPORT

- side panel, left

1шт.

23

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

25

94367C1

SPRING

RETAINER - side panel

2шт.

26

30267R1

NUT,M4, Cl 8

- hex, M4

4шт.

27

98911C1

BRACKET

- mounting, upper baffle

1шт.

28

3118801R1

SPACER

- insulation

1шт.

29

95-11034

WASHER,1/4"

- flat, 5/16 inch

2шт.

30

120376

NUT,5/16"-18, G5

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - upper, 465 MM (Cut from bulk length)

1шт.

32

98906C1

DEFLECTOR

BAFFLE - upper air

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

34

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

35

NSS

NOT SOLD SEPARAT

SEAL - baffle lower, 425 MM (Cut from bulk length)

1шт.

36

3121397R2

BAFFLE

- upper

1шт.

37

30209R1

WASHER,M6 x 13 x 2, HT

- plain, 6 MM

4шт.

38

30381R1

NUT,M6 x 1, Cl 10

NUT - hex, M6

4шт.
