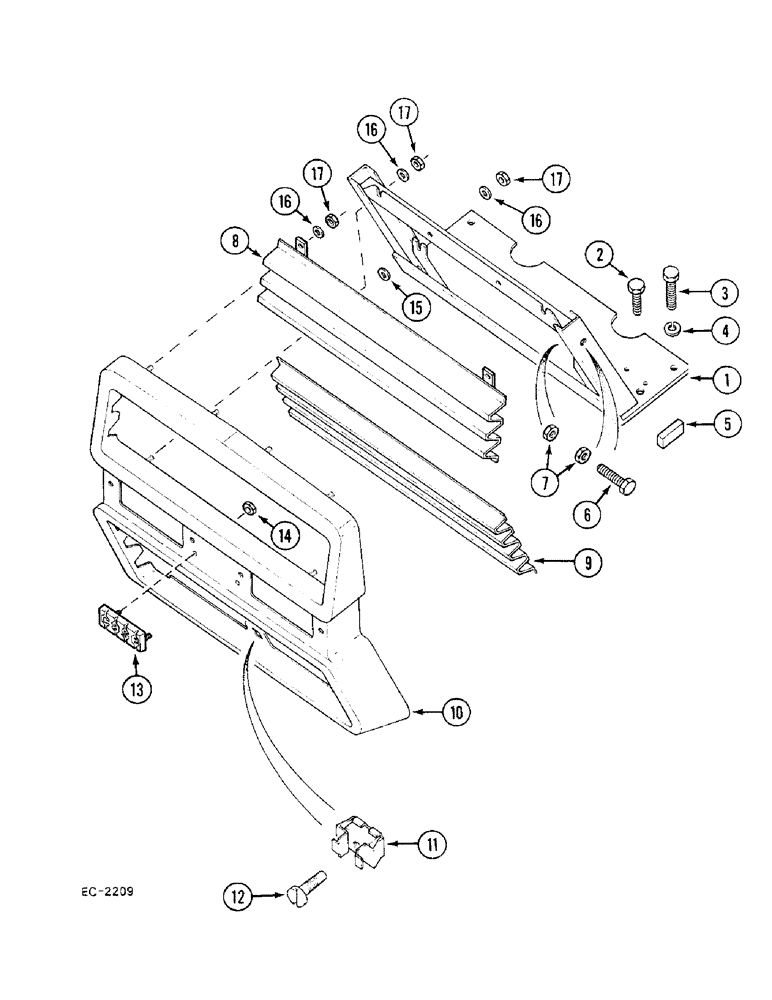

Запчасти Case 380B (9-272) - RADIATOR GRILLE (09) - CHASSIS/ATTACHMENTS

1

94301C2

SUPPORT

- grille and hood

1шт.

2

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, use with cast bolster

2шт.

2

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, use with fabricated bolster

2шт.

3

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, use with cast bolster

2шт.

3

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, use with fabricated bolster

2шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Use with cast bolster 3/8"

2шт.

4

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Use with fabricated bolster 3/8"

4шт.

5

NSS

NOT SOLD SEPARAT

SEAL - grille support, 1.5 inch (Cut from 73220C2)

2шт.

5

73220C2

GASKET

SEAL - foam, bulk length, 4 foot roll

1шт.

6

598798R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT - carriage 6.35 x 38.10 MM

2шт.

7

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

8

94283C1

SCREEN

- upper grille

1шт.

9

94285C1

SCREEN

- lower grille

1шт.

10

94229C1

GRILLE

- front

1шт.

11

99424C1

NUT

RETAINER - nut

1шт.

12

160544

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1шт.

13

321-4739

EMBLEM

- 'Case'

1шт.

14

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - emblem retaining

2шт.

15

99854C1

SHIM

- grille support

1шт.

16

120392

WASHER,1/4", SAE

- flat, 1/4 inch

12шт.

17

120375

NUT,Hex, 1/4" - 20, Gr 5

12шт.
