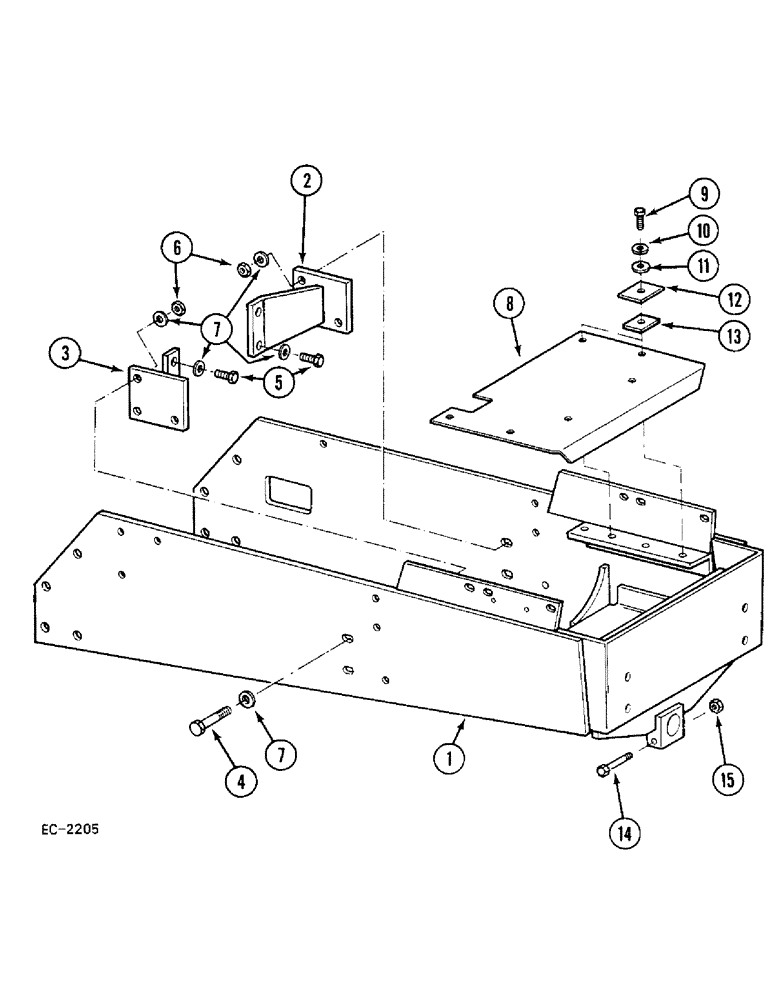

Запчасти Case 380B (9-270) - FRONT BOLSTER, FABRICATED, LOADER AND LOADER EQUIPPED TRACTORS (09) - CHASSIS/ATTACHMENTS

1

99707C1

FRAME

- fabricated

1шт.

2

70131C1

SUPPORT

- left, engine front

1шт.

3

70132C1

SUPPORT

- right, engine front

1шт.

4

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

6шт.

5

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

4шт.

6

25528R1

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8

6шт.

7

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

- hardened flat, 0.656 x 1.312 x 0.095 inch

16шт.

8

99708C1

SHEET

- air seal

1шт.

9

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

10

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

95-11041

WASHER,3/8"

4шт.

12

47240D

PAD

- radiator

4шт.

13

84525C1

SPACER

4шт.

14

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch

1шт.

15

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
