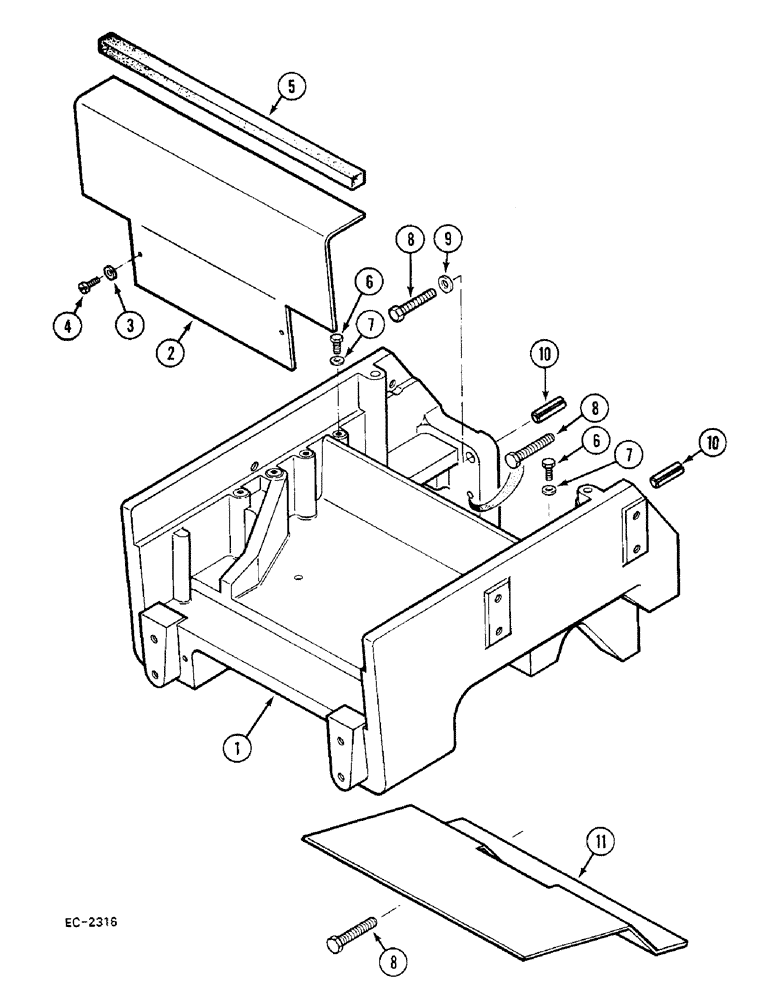

Запчасти Case 380B (9-268) - FRONT BOLSTER, CAST (09) - CHASSIS/ATTACHMENTS

1

94179C1

SUPPORT

BOLSTER - cast, front

1шт.

2

94334C1

COVER

- bolster front

1шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

3118624R1

SCREW

- hex washer head, 5/16 inch NC

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - (Cut from 73212C2)

1шт.

5

73212C2

GASKET

SEAL - foam, bulk length, 4 foot roll

1шт.

6

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

7

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

24878R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

8шт.

9

82744C1

WASHER

- hardened

2шт.

10

99499C1

PIN

- spring

2шт.

11

99512C1

PLATE

BAFFLE - bolster, air

1шт.
