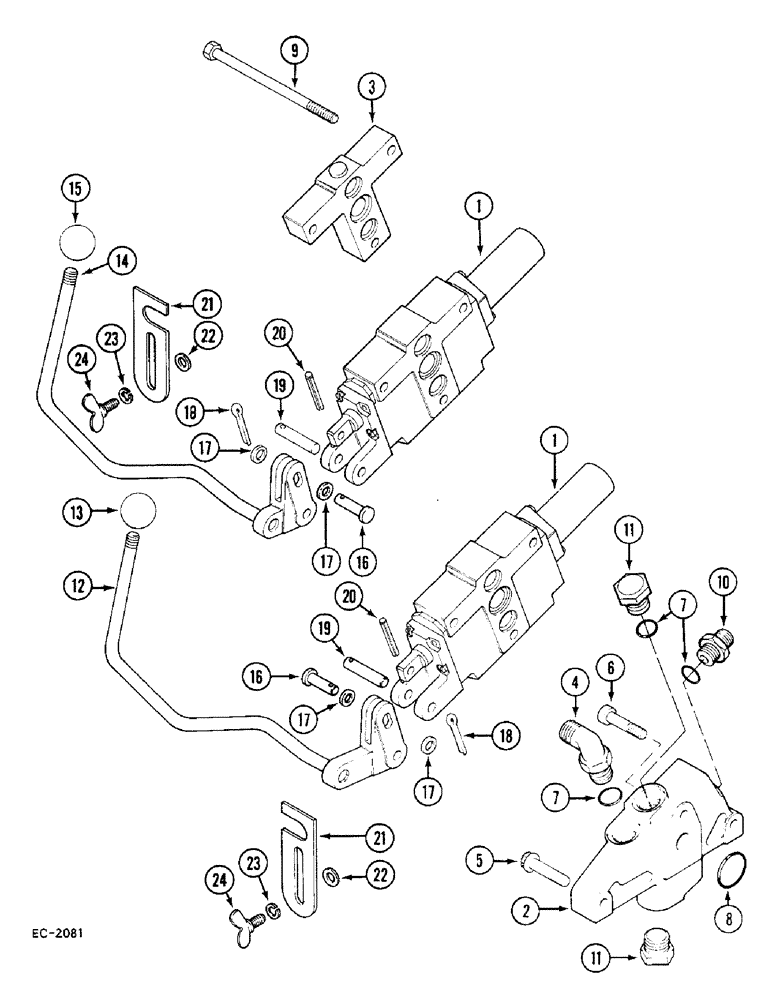

Запчасти Case 380B (8-264) - AUXILIARY VALVES AND CONTROLS, BOSCH (08) - HYDRAULICS

1

1287379C91

VALVE

- double-acting, without check valve

2шт.

Seals between sections, 1328382C1 two-piece, 1328393C1 one-piece.

1шт.

2

94070C1

PLATE

BLOCK - control valve transfer

1шт.

3

89464C91

COVER

- valve end

1шт.

4

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, 7/8 inch NF

1шт.

5

347756R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

SCREW - 12 point flanged, 3/8 NC x 1-3/4 inch

2шт.

6

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - cap, 3/8 NC x 1-3/4 inch

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

3шт.

8

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

- 1-1/4 inch ID

1шт.

9

931628R1

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

- hex, M8 x 120 MM, two-valve fit

3шт.

9

31291R1

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, M8 x 80 MM, one-valve fit

3шт.

10

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION - short swivel, 5/8 inch OD tube

1шт.

11

9410360

PLUG

- o-ring boss, 7/8 inch NF

2шт.

12

94134C1

LEVER ASSY.

LEVER - complete, 1st bank auxiliary valve

1шт.

13

3123087R1

BUTTON

KNOB - ball (Black), 1st. bank valve control lever

1шт.

14

94136C1

LEVER ASSY.

LEVER - complete

1шт.

15

99876C1

BUTTON

KNOB - ball (Green), 2nd. bank valve control lever

1шт.

16

23840R1

CLEVIS PIN,5/16" x 1 3/16"

PIN, CLEVIS, 5/16" x 1 3/16"

2шт.

17

31130R1

WASHER,M8 x 17.5 x 2, HT

- plain, 8 MM

4шт.

18

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

19

99609C1

PIN

- straight, 3/8 x 1.45 inch

2шт.

20

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

21

3125862R1

PLATE

- auxiliary valve lever lockout

2шт.

22

120394

WASHER,3/8", SAE

WASHER - plain, 3/8 inch

2шт.

23

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW - adjusting

2шт.
