Запчасти Case 380B (8-252) - DRAFT CONTROL (08) - HYDRAULICS

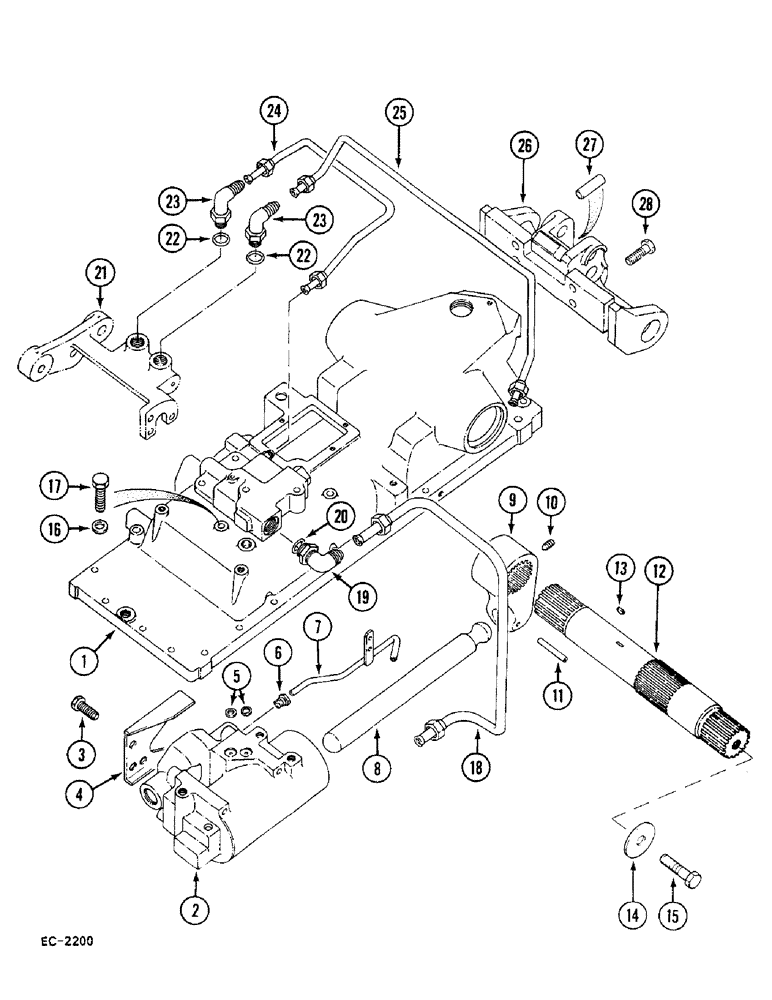

Схема запчастей Case 380B - (8-252) - DRAFT CONTROL (08) - HYDRAULICS
5
6
9
21
18
7
4
19
17
23
24
23
14
3
12
2
16
8
26
28
22
13
25
27
20
15
11
22
1
10

Артикул

Название

Примечание

Количество

1

406003R32

HOUSING ASSY.

HOUSING - hydraulic unit (See Figure 8-254)

1шт.

2

NSS

NOT SOLD SEPARAT

CYLINDER - (See Figure 8-260)

1шт.

3

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

4

400026R2

SUPPORT

BRACKET - switch lever (See Figure 8-256)

1шт.

5

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- 9/16 ID x 3/32 inch

2шт.

6

222-504

TUBE NUT,9/16"-20

NUT - hi-duty, 3/8 inch OD tube

1шт.

6

700153R11

NUT

- hi-duty, 3/8 inch OD tube, Serial Range: (Optional-37165D)

1шт.

7

60652C1

TUBE ASSY.

TUBE - lubrication

1шт.

8

400054R2

ROD

- hydraulic cylinder connecting

1шт.

9

400053R3

LEVER

- rockshaft bellcrank

1шт.

10

376069R1

SET SCREW

SCREW - rockshaft bellcrank set

1шт.

11

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

12

400049R2

SHAFT

ROCKSHAFT - hydraulic draft control

1шт.

13

376057R1

BUCKET TOOTH KEY

KEY - rockshaft hub

1шт.

14

537126R2

PLATE

- retaining lift arm

2шт.

15

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, grade 5

2шт.

16

400000R1

SEALING WASHER

- cap screw sealing

3шт.

17

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

- hex, 1/2 NC x 1-3/8 inch

3шт.

18

3129243R2

PIPE

TUBE - draft control pressure

1шт.

19

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, 7/8 inch NF

1шт.

20

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

1шт.

21

529349R3

SUPPORT

- hitch control shaft (See Figure 8-258)

1шт.

22

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

2шт.

23

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch tube

2шт.

24

66759C1

TUBE ASSY.

TUBE - variable flow, Serial Range: -18001

1шт.

24

3129774R2

PIPE

TUBE - variable flow, Start Serial: 18001

1шт.

25

1500296C1

TUBE,0.5" OD, 475.5, 75 mm Length

- variable flow control supply, Serial Range: -18001

1шт.

25

1289959C2

PIPE

TUBE - variable flow control supply, Start Serial: 18001

1шт.

26

527229R91

SUPPORT

SPRING - draft sensing

1шт.

27

19842R1

DOWEL,5/16" x 1/2"

PIN - dowel, 5/16 x 1/2 inch

1шт.

28

21047R1

HEX SOC SCREW,5/8"-11 x 1 3/4"

BOLT - hex socket, 5/8 NC x 1-3/4 inch

4шт.

28

109041C1

SCREW

- hex socket, 5/8 NC x 1-3/4 inch, Serial Range: (Optional-21047R1)

4шт.

Выбрано товаров: 32
