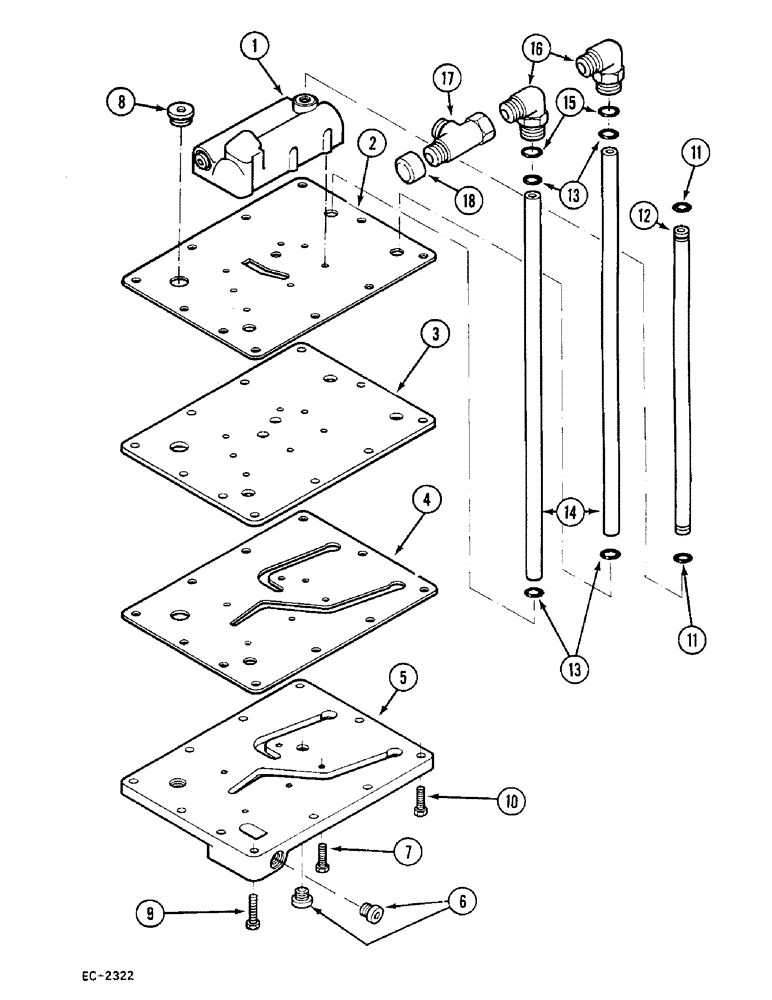

Запчасти Case 380B (8-248) - REGULATOR VALVE AND PLATE, TRACTORS AND LOADERS WITH FORWARD AND REVERSE, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

94121C92

VALVE

- pressure regulator (See Figure 8-250)

1шт.

2

83009C2

GASKET

- separator plate

1шт.

3

83010C2

PLATE

- separator

1шт.

4

83011C2

GASKET,0.79mm Thk

- core plate

1шт.

5

83013C2

LARGE PLATE

PLATE - core

1шт.

6

86258C1

PLUG,M12 x 1.5

2шт.

7

931405R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M8 x 30 MM

5шт.

8

87953C1

PLUG

- metric

1шт.

9

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

10

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

9шт.

11

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 ID x 1/16 inch

2шт.

12

402544R1

SUCTION PIPE

TUBE - oil inlet

1шт.

13

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

- 1/2 ID x 1/16 inch

4шт.

14

402545R1

PRESSURE PIPE

TUBE - pump pressure

2шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

2шт.

16

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch tube

2шт.

17

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

UNION - tee, swivel, 1/2 inch OD tube

1шт.

18

9403372

CAP,37 Degree, 3/4"-16

- 1/2 inch OD tube

1шт.
