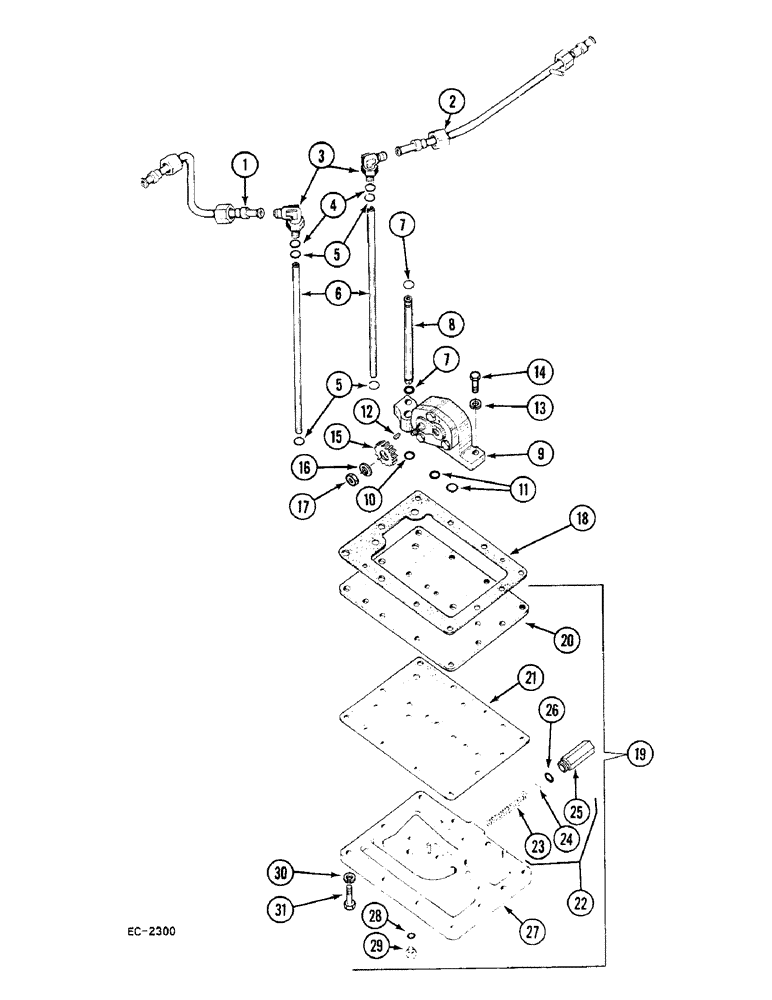

Запчасти Case 380B (8-246) - HYDRAULIC PUMP AND CONNECTIONS, TRACTORS AND LOADERS WITH FORWARD AND REVERSE, PRIOR TO P.I.N. 18001 (08) - HYDRAULICS

1

66117C1

TUBE ASSY.

TUBE - oil cooler return rear

1шт.

2

66116C2

TUBE ASSY.,0.5" OD, 13.04, 2.26" Length

TUBE - return, forward and reverse

1шт.

3

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch tube

2шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

2шт.

5

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

- 1/2 ID x 1/16 inch

4шт.

6

402545R1

PRESSURE PIPE

TUBE - pump pressure

2шт.

7

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 ID x 1/16 inch

2шт.

8

402544R1

SUCTION PIPE

TUBE - oil inlet

1шт.

9

527757R92

PUMP

- hydraulic, Includes: Ref. 10 - 12

1шт.

10

574069R1

O-RING,0.750" ID x .062"

- 3/4 inch OD tube

1шт.

11

379181R1

O-RING,0.614" ID x 0.07" Width

- 5/8 ID x 1/16 inch

2шт.

12

427261

KEY

- Woodruff, 1/8 x 3/8 inch

1шт.

13

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

2шт.

15

528076R1

GEAR

- pump driven, 14 teeth

1шт.

16

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

17

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

18

402556R2

GASKET

1шт.

19

402547R97

VALVE

- pressure regulator, Includes: Ref. 20 - 29

1шт.

20

402554R1

PLATE

- pump

1шт.

21

402555R3

GASKET

- pump plate

1шт.

22

1502344C92

PACKAGE

KIT - service, regulator valve, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM

4шт.

25

NSS

NOT SOLD SEPARAT

PLUG

1шт.

26

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - pressure regulator

1шт.

28

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

29

9410356

PLUG

- o-ring boss, 7/16 inch NF

1шт.

30

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

31

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT - hex, 3/8 NC x 1-3/8 inch

11шт.
