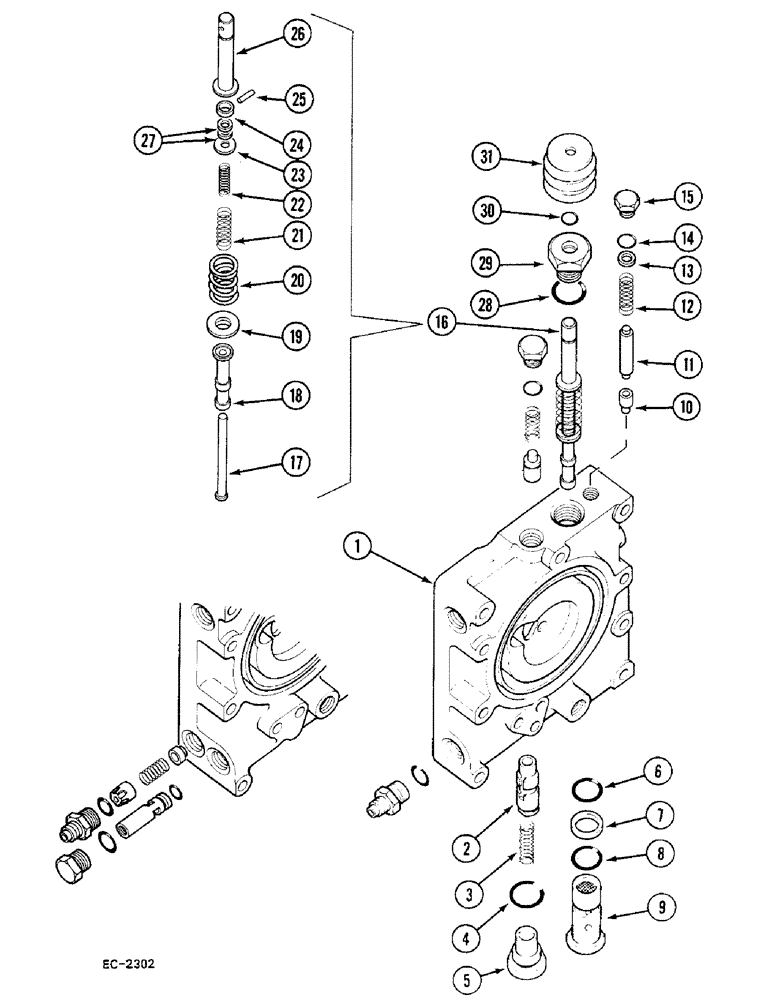

Запчасти Case 380B (8-242) - MULTIPLE CONTROL VALVE (08) - HYDRAULICS

57714C96

VALVE

- multiple control, Includes: Ref. 1 - 31 on this figure and Ref. 32 - 43 on Figure 8-244, Serial Range: -18001

1шт.

94281C91

VALVE

- multiple control, Includes: Ref. 1 - 31 on this figure and Ref. 32 - 43 on Figure 8-244, Start Serial: 18001

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

405448R1

SPRING

- flow divider valve

1шт.

4

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube

1шт.

5

405447R2

PLUG

- flow divider

1шт.

6

383219R1

O-RING,0.924" ID x 0.103" Width

- 15/16 ID x 3/32 inch

1шт.

7

378985R2

BACK-UP RING

- back up

1шт.

8

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- 7/8 ID x 3/32 inch

1шт.

9

399858R92

VALVE

- pilot relief, 2500 PSI

1шт.

10

399882R1

POPPET

1шт.

11

399881R2

PIN

- pressure regulator valve

1шт.

12

549850R1

SPRING

- pressure regulator valve

1шт.

13

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

- spring retainer

1шт.

14

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

15

573983R1

PLUG

- regulator valve

1шт.

16

530775R93

VALVE

ASSEMBLY - valve, Includes: Ref. 17 - 26

1шт.

17

405454R2

PIN

- control valve guide

1шт.

18

405452R1

CONTROL VALVE

VALVE - control

1шт.

19

405453R1

RETAINER

- IPTO valve

1шт.

20

530776R1

SPRING

- control valve

1шт.

21

381760R1

SPRING

- control valve (Light)

1шт.

22

399878R2

SPRING

- control valve (Heavy)

1шт.

23

556980R1

WASHER

- spring retainer

1шт.

24

530778R1

RETAINER

- pin

1шт.

25

405456R1

PIN

- control valve dowel

1шт.

26

530777R2

STEM

- control valve

1шт.

27

369107R1

SNAP RING,#21, Ext

Ring, Snap, #21, Ext

1шт.

28

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/16 ID x 7/16 inch

1шт.

29

530781R2

GUIDE

- control valve stem

1шт.

30

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- 9/16 ID x 3/32 inch

1шт.

31

530780R1

BOOT

- PTO control dust

1шт.
