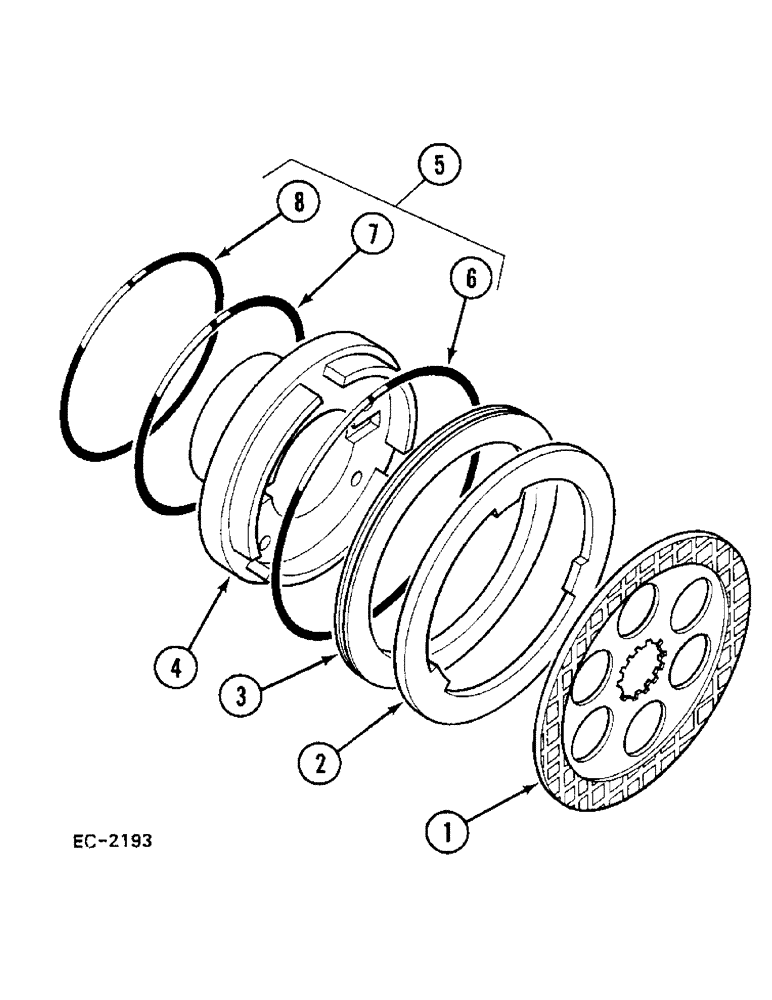

Запчасти Case 380B (7-228) - BRAKES (07) - BRAKES

1

114622C2

BRAKE DISC

DISC - brake center

2шт.

2

399736R3

RING

- brake (Assemble with numbered face inboard)

2шт.

3

114621C1

PISTON

- brake

2шт.

4

399770R2

BEARING CARRIER

CARRIER - differential bearing, right (See Figure 6-202)

1шт.

4

399769R2

BEARING CARRIER

CARRIER - differential bearing, left (See Figure 6-202)

1шт.

5

539535R91

O-RING KIT

- service, brake o-ring, Includes: Ref. 6 - 8

1шт.

6

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

- 10 ID x 1/8 inch

2шт.

7

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

- 8-1/4 ID x 1/8 inch

2шт.

8

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

- 7-1/2 ID x 3/16 inch

2шт.
