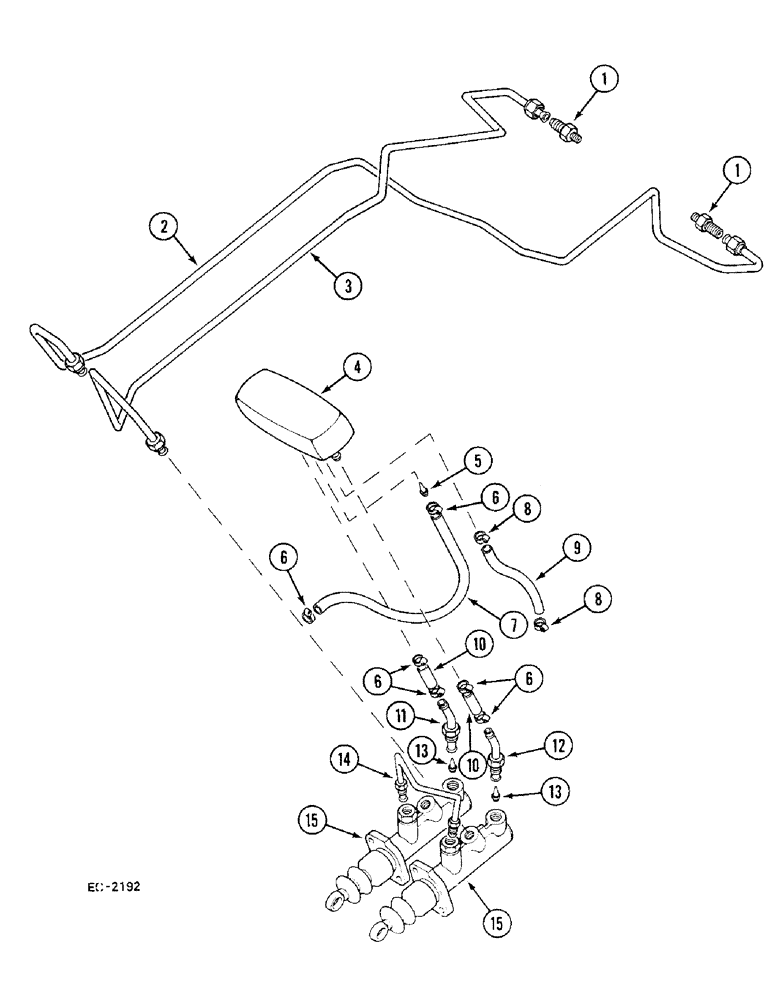

Запчасти Case 380B (7-224) - BRAKE CYLINDER AND CONNECTIONS (07) - BRAKES

1

3129671R1

FITTING

ADAPTER - brake pipe to rear frame

2шт.

2

1282572C3

PIPE,8" OD, 350, 263 mm Length

TUBE - brake, left, Serial Range: -18151

1шт.

2

1956753C1

PIPE

TUBE - brake, left, Start Serial: 18151

1шт.

3

1282573C2

BRAKE LINE

TUBE - brake, right

1шт.

4

3129644R1

RESERVOIR

- brake

1шт.

5

537518R1

SCREEN

ASSEMBLY - screen and orifice

1шт.

6

3125239R1

COLLAR

CLAMP - hose, worm drive

6шт.

7

3125841R1

HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14

- brake reservoir supply

1шт.

8

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP - hose, no. 10, type F

2шт.

8

3074617R1

CLAMP

- hose, Serial Range: (Optional-274085R91)

2шт.

9

1288340C1

HOSE

- reservoir dump, 250 MM

1шт.

10

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

Cylinder Supply 7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

11

98804C1

BRAKE LINE

TUBE - brake cylinder supply, right

1шт.

12

98805C1

BRAKE LINE

TUBE - brake cylinder supply, left

1шт.

13

537849R2

SCREEN

- with orifice

2шт.

14

1287847C2

BRAKE LINE,4.78 mm OD, 79, 65 mm Length

TUBE - equalizer

1шт.

15

1287843C91

MASTER CYLINDER

CYLINDER - brake master (See Figure 7-226)

2шт.
