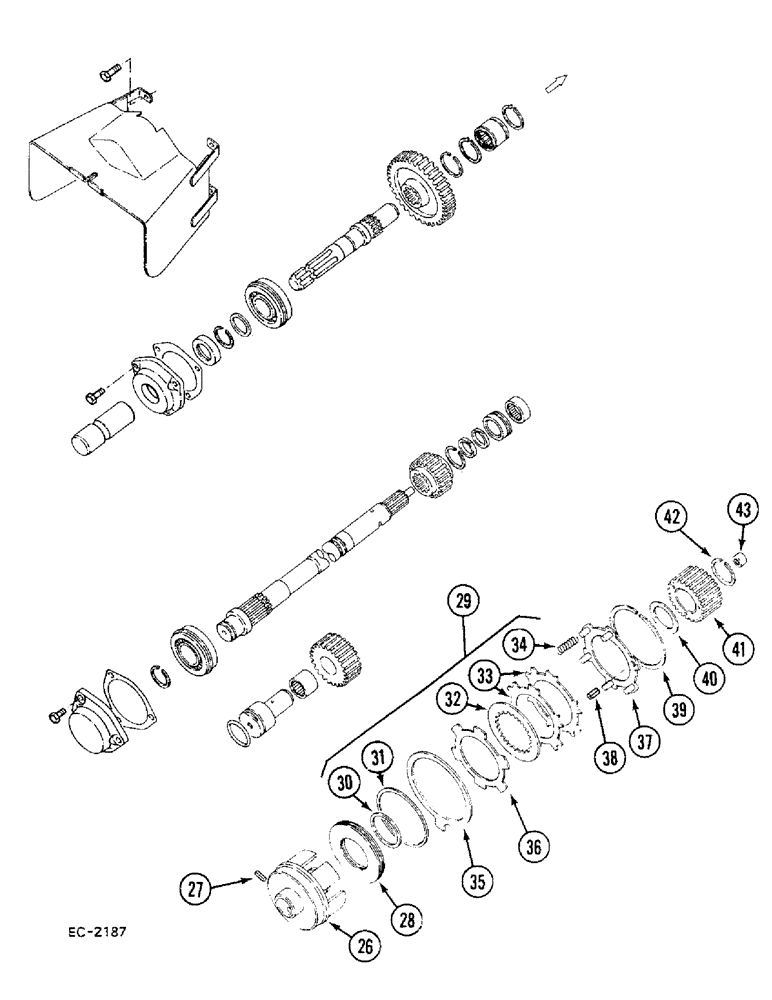

Запчасти Case 380B (6-212) - INDEPENDENT POWER TAKEOFF, SINGLE SPEED (CONTD) (06) - POWER TRAIN

26

3125149R1

CUP

- IPTO clutch, Serial Range: -18001

1шт.

26

1335402C1

CUP

- IPTO clutch, Start Serial: 18001

1шт.

27

617938R1

PIN,5/16" x 1 3/8", Coiled

, Serial Range: -18001

1шт.

27

617941R1

PIN,5/16" x 2", Coiled

, Start Serial: 18001

1шт.

28

401722R1

PISTON

- clutch

1шт.

29

66193C91

PACKAGE

KIT - service, clutch plate, Includes: Ref. 30 - 34

1шт.

30

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

- clutch piston, inner

1шт.

31

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING - clutch piston, outer

1шт.

32

NSS

NOT SOLD SEPARAT

PLATE - clutch driven

5шт.

33

NSS

NOT SOLD SEPARAT

PLATE - clutch separator

8шт.

34

66182C1

SPRING

- piston return

6шт.

35

404490R1

RING,140.25mm ID x 4.5mm Thk

- IPTO brake, Serial Range: -18001

1шт.

35

82349C1

RING

- IPTO brake, Start Serial: 18001

1шт.

36

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

- piston return

1шт.

37

66186C92

PLATE ASSY.

PLATE - clutch backing, Includes: Ref. 38

1шт.

38

19555R1

PIN,5/16" x 1", Coiled

6шт.

39

401720R1

CIRCLIP

RING - retaining, backing plate

1шт.

40

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

WASHER - thrust, clutch hub

1шт.

41

66183C2

HUB ASSY.,45T

HUB - clutch

1шт.

42

401756R1

SNAP RING,#206, 1.936", Ext

RING - retaining, external, 1.936 inch

1шт.

43

533325R91

BEARING, NEEDLE

BEARING - needle, IPTO driven shaft, Serial Range: -18001

1шт.

43

82351C91

NEEDLE BEARING

BEARING - needle, IPTO driven shaft, Start Serial: 18001

1шт.
