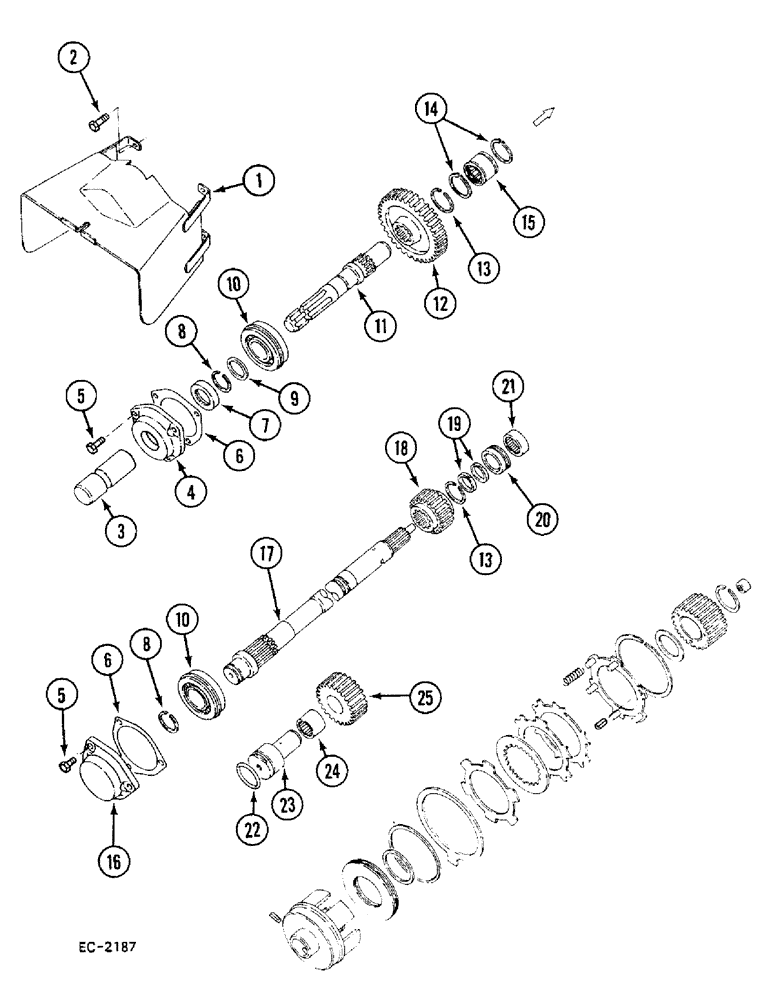

Запчасти Case 380B (6-210) - INDEPENDENT POWER TAKEOFF, SINGLE SPEED (06) - POWER TRAIN

1

401734R1

GUARD ASSY.

SHIELD - IPTO safety

1шт.

2

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

3

3054841R2

TUBE

CAP - protection, IPTO safety

1шт.

4

1500086C1

FLANGED BEARING

- bearing, IPTO shaft

1шт.

5

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

- hex, 3/8 NC x 7/8 inch

6шт.

6

399843R3

GASKET

- rear frame IPTO flange

2шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL - oil, output shaft

1шт.

8

607186R1

SNAP RING,#156, Ext

2шт.

9

1500085C1

WASHER

1шт.

10

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING - ball

2шт.

10

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - ball (Optional to ST236)

2шт.

10

533615R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST236)

2шт.

10

71268C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST236)

2шт.

10

67655C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST236)

2шт.

10

85657H

BEARING, BALL

BEARING - ball, Serial Range: (Optional-ST236)

2шт.

11

1500087C1

SHAFT

- upper, IPTO output

1шт.

12

404237R1

PINION

GEAR - upper driven, 36 teeth

1шт.

13

336000R1

SNAP RING,#175, 1.640", Ext

RING - retaining, external, 1.64 inch

2шт.

14

202307R1

SNAP RING,#206, Ext

Retaining, 1.906" #206, Ext

2шт.

15

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

- needle, top shaft

1шт.

16

66191C1

FLANGED BEARING

- bearing, IPTO shaft

1шт.

17

66189C1

SHAFT ASSY.

SHAFT - IPTO driving, Serial Range: -18001

1шт.

17

99463C1

SHAFT

- IPTO driving, Start Serial: 18001

1шт.

18

404233R1

PINION

GEAR - lower shaft drive, 22 teeth

1шт.

19

166972R1

RING

- shaft sealing, Serial Range: -18001

2шт.

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

- shaft sealing, Start Serial: 18001

2шт.

20

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

- lower shaft, Serial Range: -18001

1шт.

20

93506C1

BUSHING

- 1004 RPM shaft, Start Serial: 18001

1шт.

21

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING - needle, lower shaft, Serial Range: -18001

1шт.

21

93500C91

NEEDLE BEARING,37.033 mm ID x 52.0065 mm OD x 22.06 mm

- needle, 1004 RPM shaft, Start Serial: 18001

1шт.

21

93501C91

NEEDLE BEARING,37.03mm ID x 51.99mm OD x 21.94mm W

- needle (Optional to 93500C91)

1шт.

22

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- 2-1/16 ID x 3/32 inch

1шт.

23

401726R1

SHAFT

- IPTO idler

1шт.

24

570450R91

NEEDLE BEARING

- needle idler shaft

1шт.

24

528105R91

BEARING, NEEDLE

BEARING - needle, Serial Range: (Optional-570450R91)

1шт.

25

401727R1

PINION

GEAR - idler, 24 teeth

1шт.
