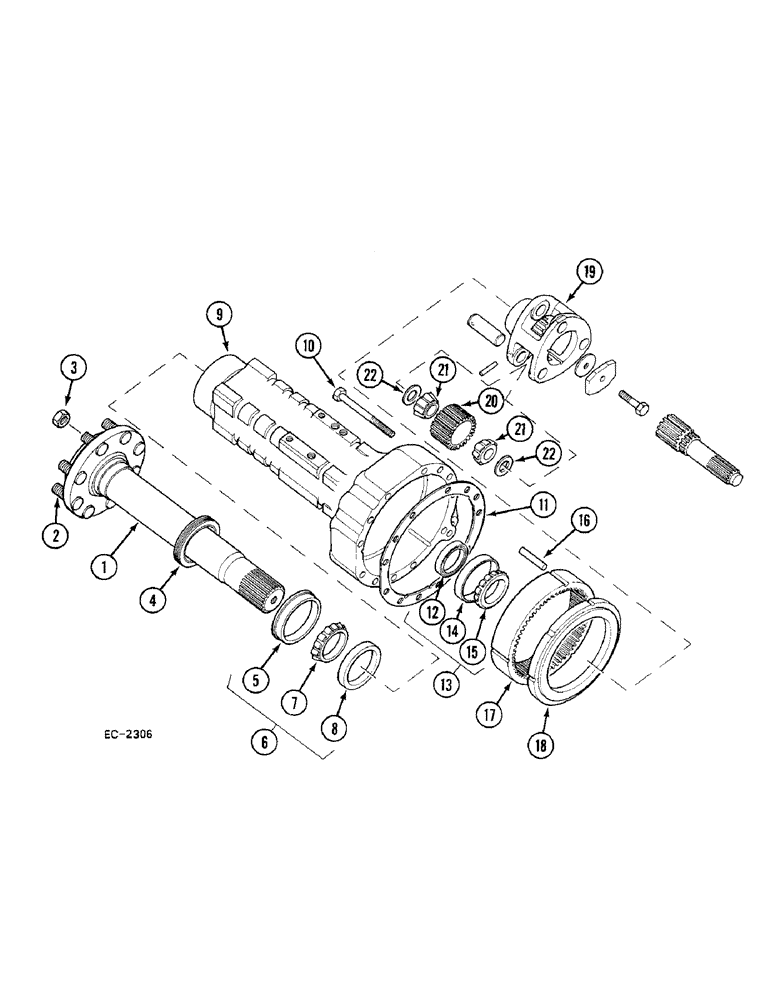

Запчасти Case 380B (6-206) - REAR AXLE, CARRIER AND CONNECTIONS (06) - POWER TRAIN

1

404340R21

HALF SHAFT

ASSEMBLY - rear axle, Includes: Ref. 2

2шт.

2

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT - rear wheel

8шт.

3

3047575R3

NUT,Wheel, 5/8"-18

- rear wheel

16шт.

4

105470C1

OIL SEAL

SEAL - oil, rear axle outer

2шт.

5

399754R1

SLEEVE

- wear

2шт.

6

1500904C91

ROLLER BEARING

- roller - rear axle outer

2шт.

6

ST2000A

TAPERED BEARING

BEARING - roller, Serial Range: (Optional-1500904C91)

2шт.

6

102160H

BEARING ASSY

BEARING - roller, Serial Range: (Optional-1500904C91)

2шт.

6

399756R91

BEARING ASSY,2.6876" ID x 4.3307" OD x 0.8661, 0.7411"

BEARING - roller (Optional to 1500904C91) Includes: Ref. 7, 8

2шт.

7

NSS

NOT SOLD SEPARAT

CONE - bearing assembly

1шт.

8

NSS

NOT SOLD SEPARAT

CUP - bearing assembly

1шт.

9

3123813R3

CARRIER

- rear axle, left, Serial Range: -18001

1шт.

9

94225C1

AXLE CARRIER

CARRIER - rear axle, left, Start Serial: 18001

1шт.

9

3123814R2

CARRIER

- rear axle, right, Serial Range: -18001

1шт.

9

94226C1

AXLE CARRIER

CARRIER - rear axle, right, Start Serial: 18001

1шт.

10

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, grade 8

22шт.

11

399762R3

GASKET

- rear axle carrier

2шт.

12

380200R92

OIL SEAL

- oil, rear axle inner

2шт.

12

530094R1

SEAL

- oil, Serial Range: (Optional-530094R1)

2шт.

13

299188R91

BEARING ASSY

- roller - rear axle inner

2шт.

13

298189R91

BEARING ASSY,2.5" ID x 4.3307" OD x 0.866"

- roller (Optional to 299188R91)

2шт.

13

1500907C91

ROLLER BEARING

- roller (Optional to 299188R91) Includes: Ref. 14, 15

2шт.

14

NSS

NOT SOLD SEPARAT

CUP - bearing assembly

1шт.

15

NSS

NOT SOLD SEPARAT

CONE - bearing assembly

1шт.

16

529685R1

DOWEL

PIN - dowel, 3/8 x 2-1/4 inch

6шт.

17

535316R1

GEAR, RING

GEAR - ring, 66 teeth

2шт.

18

114620C1

RING,260mm OD

- brake outer disc

2шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - planet gear

2шт.

20

399784R2

PINION

GEAR - planet, 25 teeth

6шт.

21

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - cone inner, planet gear

12шт.

22

65420C1

SHIM KIT

KIT - service, planet gear shim, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.049 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.056 inch

3шт.

23

399788R1

PIN

- planet shaft

6шт.

24

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.
