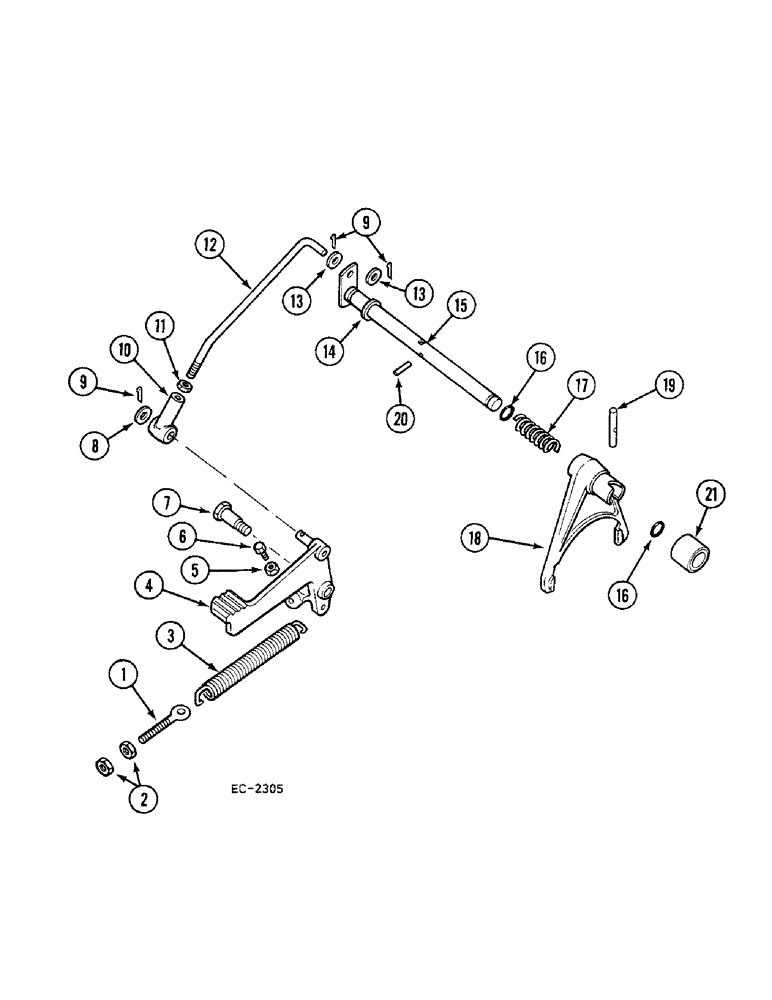

Запчасти Case 380B (6-204) - DIFFERENTIAL LOCK (06) - POWER TRAIN

1

3121850R1

EYEBOLT,3/8" - 16 x 3"

BOLT - eye, pedal return spring

1шт.

2

102635

NUT,3/8"-16, G5

2шт.

3

3121849R1

SPRING

- return, differential lock pedal

1шт.

4

66441C1

PEDAL

- differential lock

1шт.

5

109084

NUT,1/4"-20, G5

1шт.

6

1282707C1

BOLT,1/4" - 20 x 1", Full Thd

BOLT - pedal adjusting

1шт.

7

527885R1

BOLT

BOLT - pivot, differential lock pedal

1шт.

8

11002VA

WASHER

- plain, 0.531 x 0.875 x 0.054 inch

1шт.

9

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

3шт.

10

527880R1

END

- connecting rod, differential lock pedal

1шт.

11

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

12

527879R1

ROD

- differential lock pedal

1шт.

13

Q1597

WASHER

- plain, 0.406 x 0.734 x 0.056 inch

2шт.

14

Q3501

WASHER

- plain, 0.781 x 1.25 x 0.054 inch

1шт.

14

551658R1

WASHER

- plain, 0.781 x 1.25 x 0.027 inch

1шт.

15

1500384C1

SHAFT ASSY.

SHAFT - differential lock

1шт.

16

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- 9/16 ID x 3/32 inch

2шт.

17

527878R1

SPRING

- actuating, differential lock fork

1шт.

18

1500386C1

FORK

- differential lock shaft

1шт.

19

1500388C2

PIN

- cam actuating

1шт.

20

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

21

94272C1

BUSHING

- rear frame adaptor, Start Serial: 18001

1шт.
