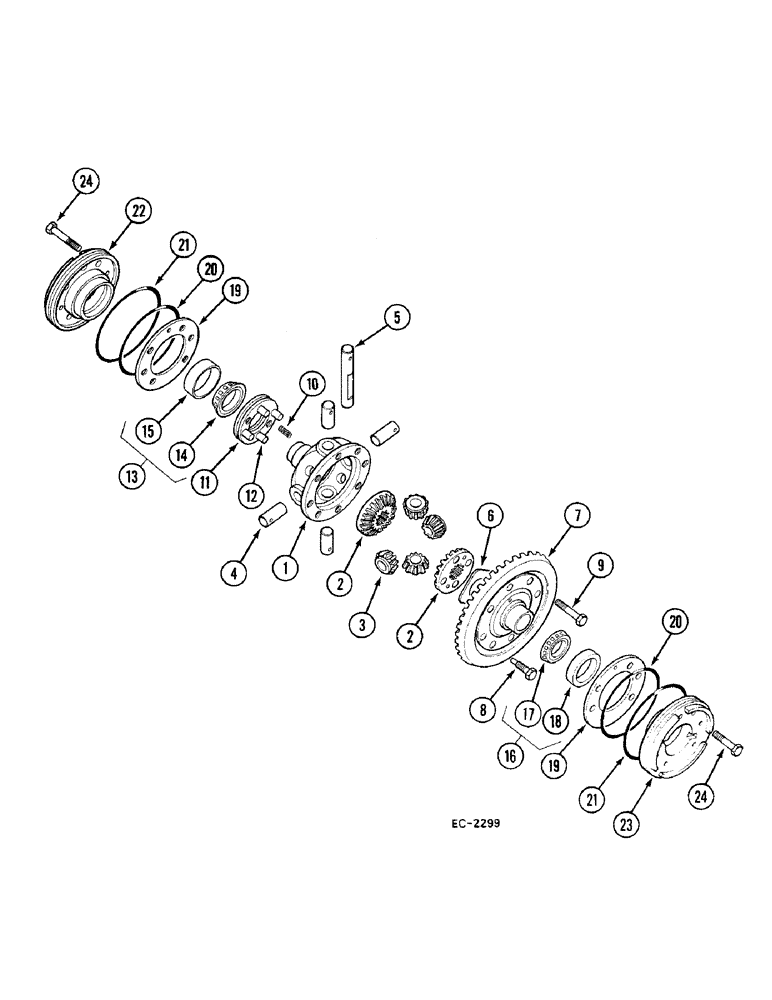

Запчасти Case 380B (6-202) - DIFFERENTIAL AND CONNECTIONS (06) - POWER TRAIN

1

399763R1

PINION CARRIER

CARRIER - differential

1шт.

2

404336R1

PINION

GEAR - bevel, differential, 20 teeth

2шт.

3

399776R1

PINION

GEAR - differential pinion, 10 teeth

2шт.

4

(Not used in this application)

1шт.

5

399775R1

SHAFT

- differential pinion

1шт.

6

399778R1

THRUST WASHER

- thrust, differential bevel gear

1шт.

7

99449C1

GEAR, BEVEL

GEAR - bevel, matched set with shaft, 12/53 teeth, Start Serial: 18001

1шт.

7

1954073C1

GEAR

- bevel, matched set, Serial Range: -18001

1шт.

8

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT - hex, 1/2 NC x 2-1/8 inch

1шт.

9

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch

7шт.

10

400867R1

SPRING

- differential lock

2шт.

11

399764R11

LOCKING RING

RING - differential lock, Includes: Ref. 12

1шт.

12

399765R1

PIN

- coupling

4шт.

13

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

- roller, differential, right

1шт.

13

402353R91

BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"

- roller (Optional to 105504H)

1шт.

13

1500909C91

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.1 mm

- roller (Optional to 105504H)

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING - cone

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - cup

1шт.

16

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

- roller, differential, left

1шт.

16

399766R91

ROLLER BEARING

BEARING - roller (Optional to 105502H) Includes: Ref. 17, 18

1шт.

16

1502182C91

TAPERED BEARING,57.163 mm ID x 97.655 mm OD x 24.808 mm

- roller (Optional to 105502H)

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING - cone

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING - cup

1шт.

19

65419C1

BEARING CARRIER

PACKAGE - shims, differential bearing carrier, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.012 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

3шт.

20

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

- 7-1/2 ID x 3/16 inch

2шт.

21

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

- 8-1/4 ID x 1/8 inch

2шт.

22

399770R2

BEARING CARRIER

CARRIER - differential bearing, right

1шт.

23

399769R2

BEARING CARRIER

CARRIER - differential bearing, left

1шт.

24

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch

8шт.
