(6-200) - TRANSFER PUMP, SYNCHROMESH DRIVE

Запчасти Case 380B (6-200) - TRANSFER PUMP, SYNCHROMESH DRIVE (06) - POWER TRAIN

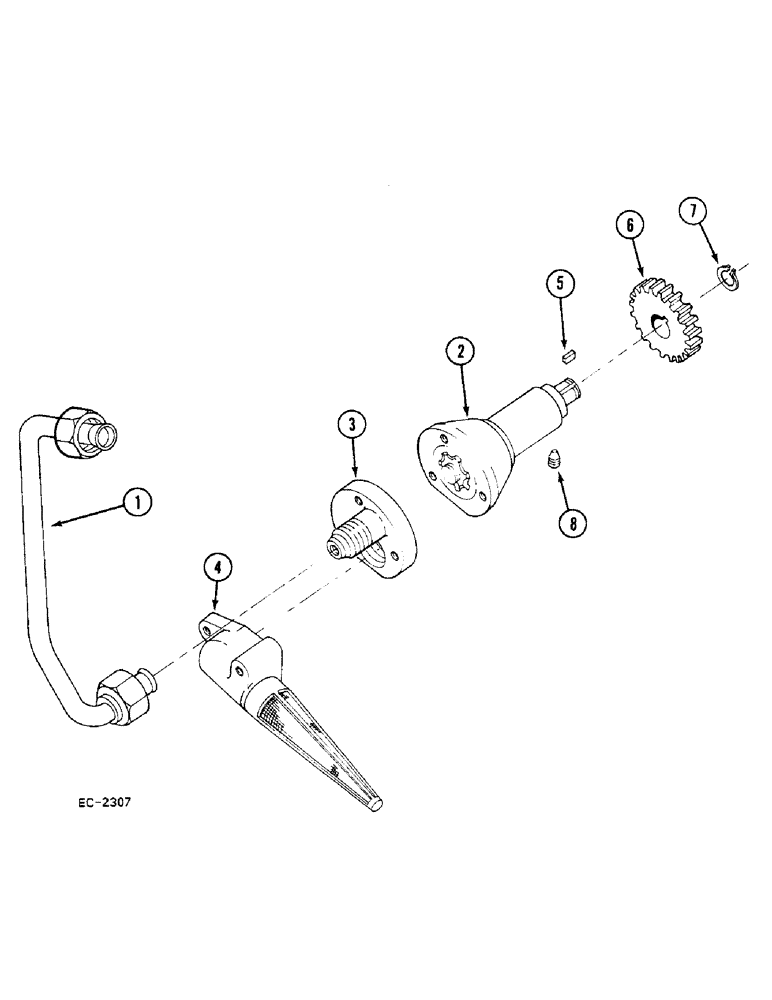

Схема запчастей Case 380B - (6-200) - TRANSFER PUMP, SYNCHROMESH DRIVE (06) - POWER TRAIN
4
3
6
2
1
5
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

527423R1

PRESSURE PIPE

PIPE - transfer pump outlet

1шт.

2

3123726R92

PUMP, HYDRAULIC

PUMP - oil transfer, Includes: Ref. 3, 4

1шт.

3

3123727R1

PLATE

- end

1шт.

4

1282191C2

STRAINER ELEMENT

STRAINER ASSEMBLY - pump

1шт.

5

529100R1

BUCKET TOOTH KEY

KEY - transfer pump driven gear

1шт.

6

528095R1

PINION

GEAR - transfer pump driven, 21 teeth

1шт.

7

3042123R1

RING, SNAP

RING - retaining, driven gear

1шт.

8

527424R1

SCREW

- pump retaining

2шт.
