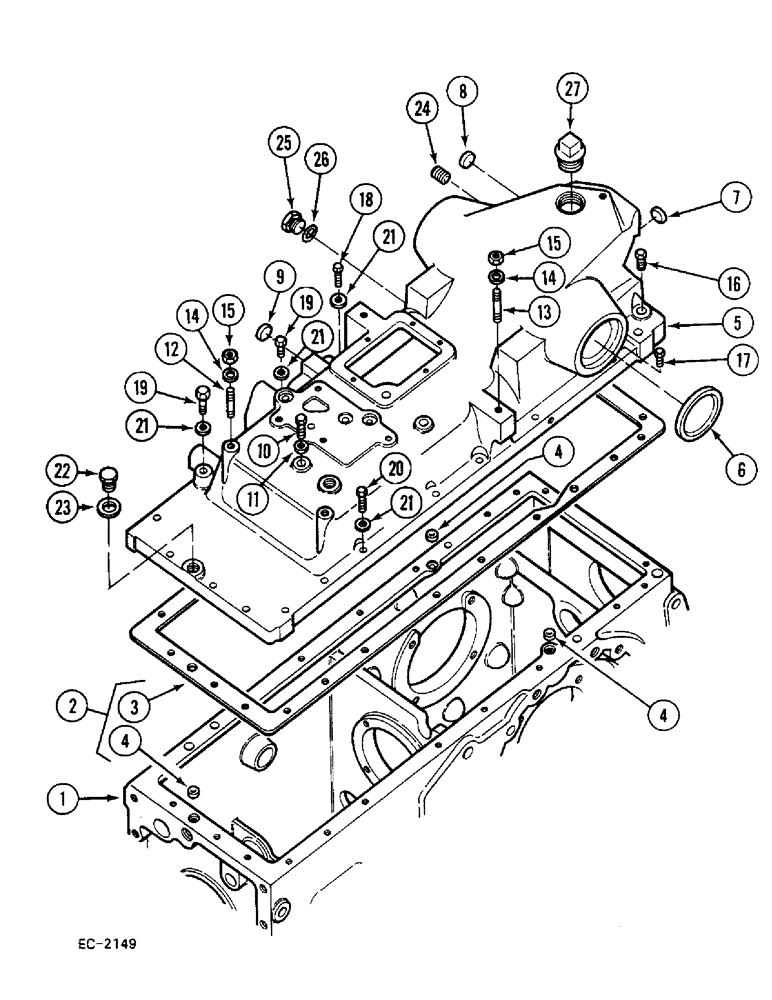

Запчасти Case 380B (6-196) - REAR FRAME TOP COVER (06) - POWER TRAIN

1

1289949C91

FRAME ASSY

FRAME - rear (See Figure 6-190)

1шт.

1

82793C91

FRAME

- rear (See Figure 6-192)

1шт.

2

538649R92

GASKET KIT

KIT - rear frame cover gasket, Includes: Ref. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - rear frame cover

1шт.

4

406734R1

SEAL

- teflon

3шт.

5

406003R32

HOUSING ASSY.

HOUSING - hydraulic unit (With draft control) (See Figure 8-254)

1шт.

5

529381R96

COVER ASSY

COVER - rear frame (Without hyd draft control) Includes: Ref. 6 - 13

1шт.

6

24469R1

PLUG,Cup, 3 1/4"

- cup, 3-1/4 inch

2шт.

7

373553R1

PLUG,Cup, 7/8"

- cup, 7/8 inch

1шт.

8

386194R1

PLUG,Cup, 3/4"

- cup, 3/4 inch

1шт.

9

41600D

PLUG,Cup, 1 1/8"

- cup, 1-1/8 inch

1шт.

10

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

3шт.

11

231-1408

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

3шт.

12

531144R1

STUD

- top cover, short

2шт.

13

531143R2

STUD

- top cover, long

2шт.

14

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

15

120377

NUT,3/8" - 16, Gr 5

4шт.

16

179888

LEVER

BOLT - hex, 1/2 NC x 1-7/8 inch

4шт.

17

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

- hex, 1/2 NC x 1-5/8 inch

2шт.

18

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

20

179846

LEVER

- hex, 3/8 NC x 1-7/8 inch, grade 5

11шт.

21

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

22

536855R1

PLUG

- o-ring boss, 3/4 inch NF

1шт.

23

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

1шт.

24

444697

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch NPTF

1шт.

24

444698

PLUG

- hex socket, 3/8 inch NPTF, Serial Range: (Optional-444697)

1шт.

25

9410359

PLUG

- o-ring boss, 1/2 inch OD tube

1шт.

26

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

1шт.

27

20953R1

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - automotive square, 1-1/4 inch NPTF

1шт.
