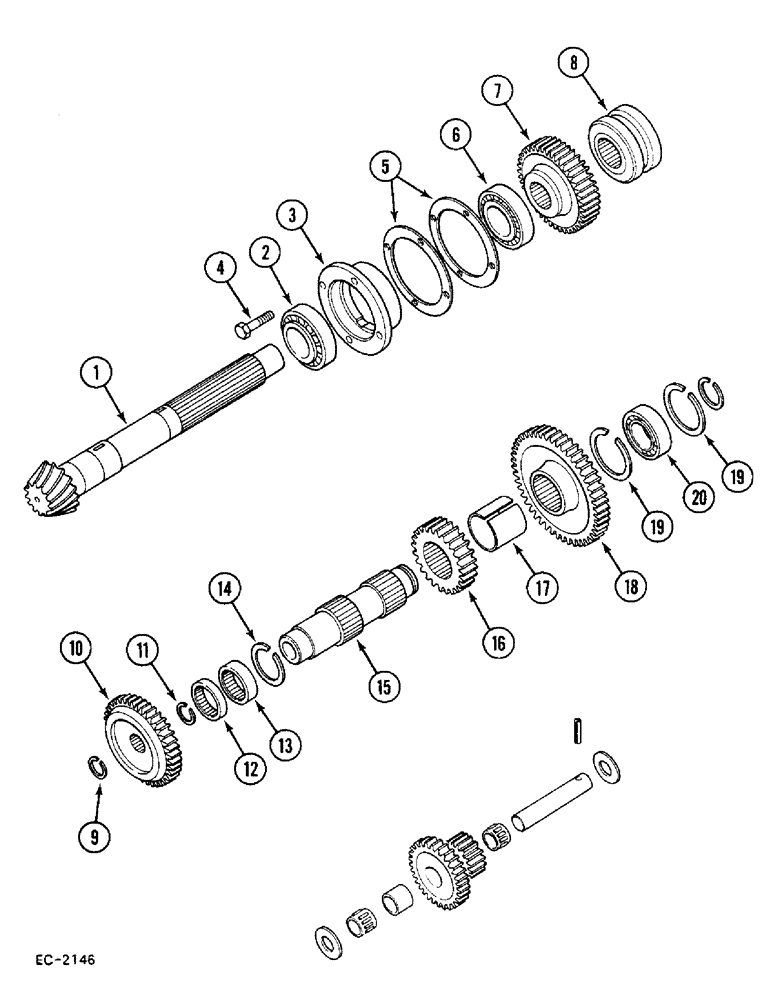

Запчасти Case 380B (6-186) - RANGE TRANSMISSION, IN REAR FRAME (06) - POWER TRAIN

1

99449C1

GEAR, BEVEL

GEAR - bevel, matched set with shaft, 12/53 teeth, Start Serial: 18001

1шт.

1

1954073C1

GEAR

- bevel, matched set, Serial Range: -18001

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSEMBLY - bearing - main shaft rear

1шт.

2

399824R91

ROLLER BEARING

ASSEMBLY - bearing, Serial Range: (Optional-399823R91)

1шт.

2

1502181C91

BALL BEARING

ASSEMBLY - bearing, Serial Range: (Optional-399823R91)

1шт.

3

399825R1

BEARING CUP

CAGE - bearing

1шт.

4

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

4шт.

5

65423C1

SHIM KIT

PACKAGE - shim, main shaft bearing cage, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM

2шт.

NSS

NOT SOLD SEPARAT

SHIM

5шт.

6

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSEMBLY - bearing - main shaft front

1шт.

6

399822R91

ROLLER BEARING

ASSEMBLY - bearing, Serial Range: (Optional-399821R91)

1шт.

6

1502180C91

BALL BEARING

ASSEMBLY - bearing, Serial Range: (Optional-399821R91)

1шт.

7

1286470C1

GEAR

- forward/reverse sliding, 42 teeth

1шт.

8

1277137C1

COLLAR ASSY.

COLLAR - high speed shift

1шт.

9

533266R1

RING, SNAP

RING - retaining

1шт.

10

404218R1

GEAR

- pump drive, 55 teeth, Serial Range: -18001

1шт.

10

94404C1

PINION

GEAR - pump drive, 55 teeth, Start Serial: 18001

1шт.

11

399837R1

SNAP RING,#118, 1.121", Ext

RING - retaining

1шт.

12

527747R91

BEARING, NEEDLE

BEARING - needle, pump drive gear

1шт.

12

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING - needle, Serial Range: (Optional-527747R91)

1шт.

13

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING - needle, countershaft, Serial Range: -18001

1шт.

13

94376C91

NEEDLE BEARING,47.625 mm ID x 57.162 mm OD x 25.4 mm

- needle, countershaft, Start Serial: 18001

1шт.

14

398264R1

SNAP RING,#215, 2.026", Ext

RING - retaining

1шт.

15

404096C1

COUNTERSHAFT - range transmission, Serial Range: -18001

1шт.

15

94403C1

SHAFT

COUNTERSHAFT - range transmission, Start Serial: 18001

1шт.

16

103150C1

PINION

GEAR - lo range driving, 24 teeth

1шт.

17

399835R1

BUSHING

- countershaft gears

1шт.

18

404097R1

GEAR

- constant mesh, 46 teeth

1шт.

19

399832R1

RING, SNAP

RING - retaining, countershaft bearing

2шт.

20

G10418

BEARING, BALL

BEARING - ball

1шт.

20

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

BEARING - ball (Optional to G10418)

1шт.

20

71069C91

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

BEARING - ball (Optional to G10418)

1шт.

20

360635R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

20

528101R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

20

528102R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

20

3047867R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-G10418)

1шт.

20

3069304R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-G10418)

1шт.
