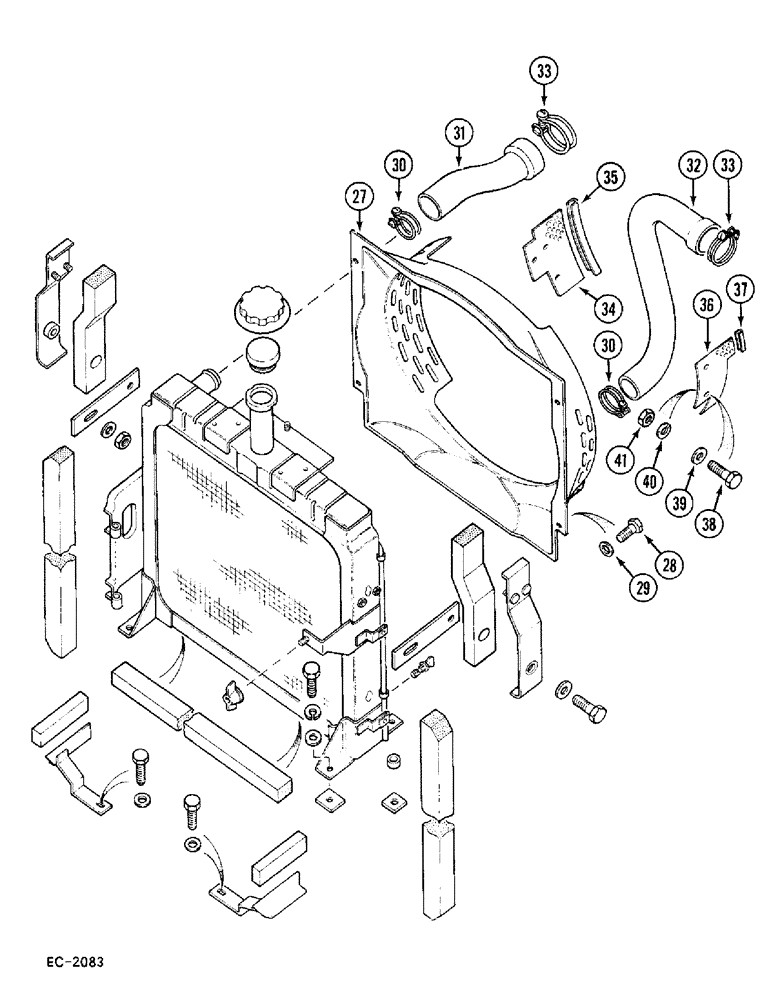

Запчасти Case 380B (2-04) - RADIATOR AND CONNECTIONS (CONTD) (02) - ENGINE

27

527475R3

HOUSING

- fan

1шт.

28

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

29

95-11028

WASHER,1/4"

- plain, 1/4 inch

4шт.

30

39149H

HOSE CLAMP

CLAMP - hose

2шт.

30

705935R91

HOSE CLAMP

CLAMP - hose, Serial Range: (Optional-39149H)

2шт.

31

1502065C1

RADIATOR HOSE,1.50" ID, 2.00" ID x 8.98"

1.50" ID, 2.00" mm ID X 8.98", Inlet

1шт.

32

402189R1

LARGE HOSE,1.50" ID, 2.00" ID x 10.39", SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A OR SAE 20R4, CLASS R, GRADE 1A, SAE 20R4 CLASS D1, Outlet 1.50" ID, 2.00" ID x 10.39", SAE 20R2

1шт.

33

39205H

CLAMP

- hose

2шт.

33

706082R91

CLAMP

- hose, Serial Range: (Optional-706082R91)

2шт.

34

99768C1

GUARD

SCREEN - finger guard, right

1шт.

35

NSS

NOT SOLD SEPARAT

STRIP - edging, 13.4 inch (Cut from 1265283C1)

1шт.

35

1265283C1

STRIP

- edging (Bulk length)

1шт.

36

99767C1

GUARD

SCREEN - finger guard, left

1шт.

37

NSS

NOT SOLD SEPARAT

STRIP - edging, 2.5 inch (Cut from 1265283C1)

1шт.

37

1265283C1

STRIP

- edging (Bulk length)

1шт.

38

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, M6 x 12 mm, class 8.8

5шт.

39

30325R1

WASHER,M6 x 13 x 2, HT

- M6 x 13 x 2, HT

5шт.

40

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

5шт.

41

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

5шт.
