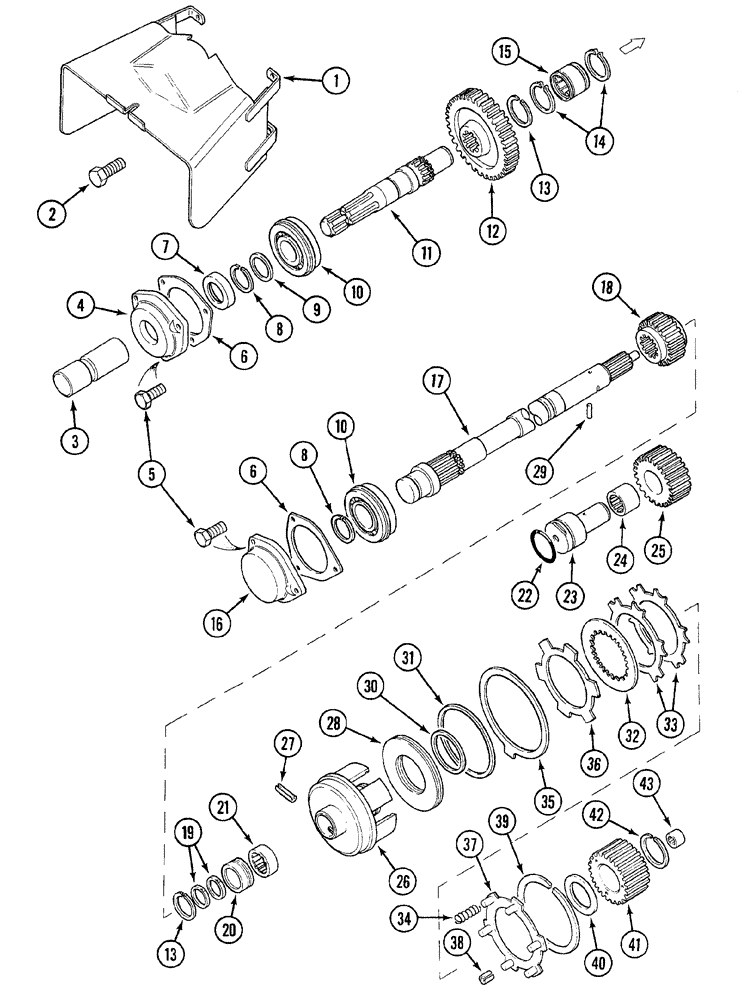

Запчасти Case 380B (6-52) - INDEPENDENT POWER TAKE OFF (06) - POWER TRAIN

1

401734R1

GUARD ASSY.

SHIELD IPTO safety

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

3054841R2

TUBE

CAP - protection, IPTO safety

1шт.

4

1500086C1

FLANGED BEARING

bearing, IPTO shaft

1шт.

5

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

6

1970891C1

GASKET

flange, rear frame IPTO cover

2шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

output shaft

1шт.

8

607186R1

SNAP RING,#156, Ext

2шт.

9

1500085C1

WASHER

thrust

1шт.

10

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

output shaft

2шт.

10

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

(Optional to ST236)

2шт.

10

533615R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST236)

2шт.

10

71268C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST236)

2шт.

10

67655C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST236)

2шт.

10

85657H

BEARING, BALL

, Serial Range: (Optional-ST236)

2шт.

11

1500087C1

SHAFT

upper, IPTO output

1шт.

12

404237R1

PINION

GEAR - upper driven, 36 teeth

1шт.

13

336000R1

SNAP RING,#175, 1.640", Ext

retaining, external, 1.64 inch

2шт.

14

202307R1

SNAP RING,#206, Ext

Retaining, 1.906"

2шт.

15

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

needle, top shaft

1шт.

16

66191C1

FLANGED BEARING

bearing, IPTO shaft

1шт.

17

99463C1

SHAFT

ASSEMBLY - driving, IPTO

1шт.

18

404233R1

PINION

GEAR - drive, lower shaft, 22 teeth

1шт.

19

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

shaft sealing

2шт.

20

93506C1

BUSHING

lower shaft

1шт.

21

93500C91

NEEDLE BEARING,37.033 mm ID x 52.0065 mm OD x 22.06 mm

needle, lower shaft

1шт.

21

93501C91

NEEDLE BEARING,37.03mm ID x 51.99mm OD x 21.94mm W

needle (Optional to 93500C91)

1шт.

22

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

23

401726R1

SHAFT

IPTO idler

1шт.

24

570450R91

NEEDLE BEARING

needle, idler shaft

1шт.

24

528105R91

BEARING, NEEDLE

, Serial Range: (Optional-570450R91)

1шт.

25

401727R1

PINION

GEAR - idler, 24 teeth

1шт.

26

1335402C1

CUP

IPTO clutch

1шт.

27

617941R1

PIN,5/16" x 2", Coiled

1шт.

28

401722R1

PISTON

clutch

1шт.

29

932169R1

LOCK PIN,M4 x 10, Slotted

Spring

1шт.

30

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston, inner

1шт.

Part of P/N 66193C91 Service Kit

1шт.

31

401724R1

SEAL,0.551" ID x 0.07" Width

piston, outer

1шт.

Part of P/N 66193C91 Service Kit

1шт.

32

NSS

NOT SOLD SEPARAT

PLATE - clutch driven (Order kit 66193C91)

5шт.

Part of P/N 66193C91 Service Kit

1шт.

33

NSS

NOT SOLD SEPARAT

PLATE - clutch separator (Order kit 66193C91)

8шт.

Part of P/N 66193C91 Service Kit

1шт.

34

66182C1

SPRING

piston return

6шт.

Part of P/N 66193C91 Service Kit

1шт.

35

82349C1

RING

IPTO brake

1шт.

36

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

37

66186C92

PLATE ASSY.

clutch backing

1шт.

38

19555R1

PIN,5/16" x 1", Coiled

6шт.

39

401720R1

CIRCLIP

retaining, backing plate

1шт.

40

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

clutch hub

1шт.

41

66183C2

HUB ASSY.,45T

clutch

1шт.

42

401756R1

SNAP RING,#206, 1.936", Ext

retaining, external, 1.936 inch

1шт.

43

82351C91

NEEDLE BEARING

needle, IPTO driven shaft

1шт.

66193C91

PACKAGE

KIT - service, clutch plate (Includes: Ref. 30, 31, 32, 33 and 34)

1шт.
