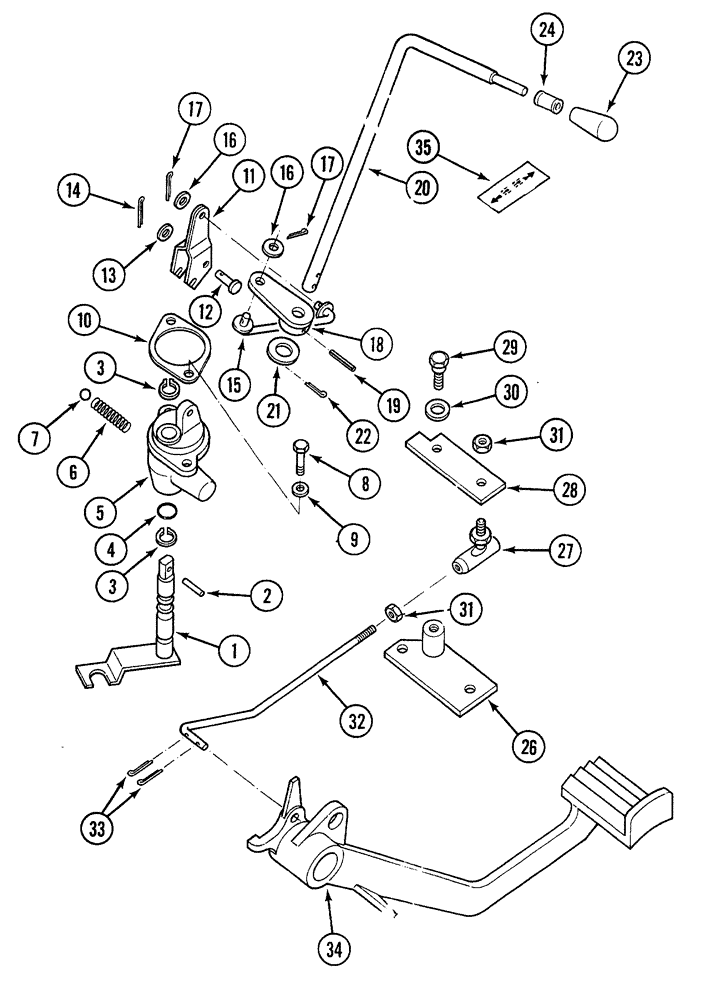

Запчасти Case 380B (6-48) - FORWARD AND REVERSE CONTROL (06) - POWER TRAIN

1

531553R1

LEVER ASSY.

lockout control

1шт.

2

19878R1

DOWEL,3/16" x 1"

PIN hardened, 3/16 x 1 inch

1шт.

3

309032R1

SNAP RING,#62, Ext

#62, Ext

2шт.

4

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

5

402595R2

SUPPORT

control shaft

1шт.

6

402596R1

SPRING

control

1шт.

7

17014R1

BALL

7/16 inch diameter, grade 25 metal

1шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

9

92-11031

LOCK WASHER,5/16"

2шт.

10

401623R1

GASKET

control shaft support

1шт.

11

1282951C1

LEVER

BELLCRANK ASSEMBLY - forward and reverse control

1шт.

12

22731D

SPLIT PIN/SAFETY PIN

clevis, 1/4 x 29/32 inch

1шт.

13

95-31027

WASHER,1/4"

flat, 17/64 x 5/8 x 3/64 inch

1шт.

14

32-410

COTTER PIN,1/16" x 5/8"

1шт.

15

98803C3

ROD

ASSEMBLY - control

1шт.

16

95-11028

WASHER,1/4"

flat, 9/32 x 5/8 x 1/16 inch

2шт.

17

32-812

COTTER PIN,1/8" x 3/4"

2шт.

18

98858C1

ARM ASSY.

control

1шт.

19

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

20

3121402R1

ROD

control handle

1шт.

21

95-81195

WASHER,0.53" ID x 1" OD x 0.06" Thk

plain, 17/32 x 1.00 x 3/64 inch

1шт.

22

32-812

COTTER PIN,1/8" x 3/4"

1шт.

23

1536683C1

HANDLE GRIP

KNOB ASSEMBLY - control handle

1шт.

24

1536684C1

SPACER

RING - star, tolerence

1шт.

26

528942R1

PLATE ASSY.

mounting

1шт.

27

442720

BALL JOINT

JOINT - ball, 5/16 inch NF, type C

1шт.

27

310673R1

BALL JOINT

5/16 inch NF, type A, Serial Range: (Optional-442720)

1шт.

27

310673R91

BALL JOINT

5/16 inch NF, type G, Serial Range: (Optional-442720)

1шт.

28

1282952C1

STRIP

locking

1шт.

29

399509R1

BOLT,Shldr, Hex, 3/8" - 16 x 1", W/ Wshr

BOLT - shoulder

1шт.

30

495-81008

WASHER,.469" x 3/4" x .060"

flat, 29/64 x 3/4 x 3/64 inch

1шт.

30

495-81153

WASHER,.469" x 3/4" x .030"

flat, 29/64 x 3/4 x 1/32 inch

1шт.

31

25-115

NUT,5/16"-24, G5

Hex

2шт.

32

528946R2

ROD

lockout

1шт.

33

32-812

COTTER PIN,1/8" x 3/4"

2шт.

34

1500212C93

PEDAL ASSY.

clutch, with bushing (See Figure 6-36)

1шт.

35

533593R2

PRODUCT GRAPHIC

DECAL - forward and reverse

1шт.
