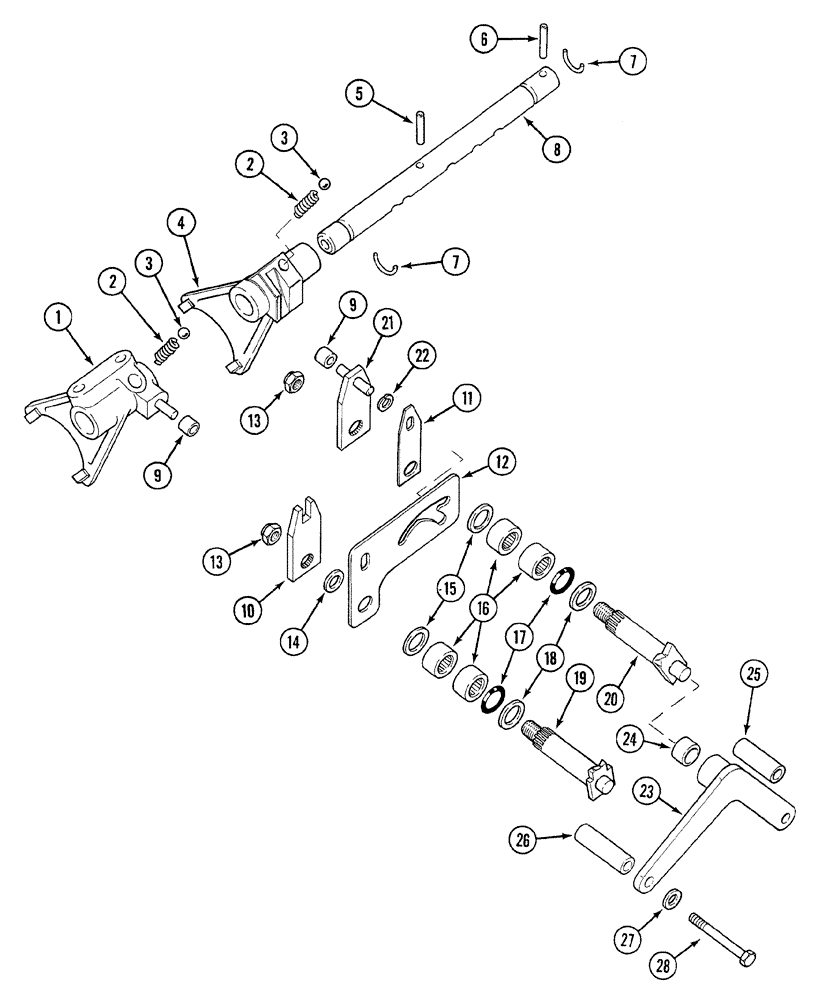

Запчасти Case 380B (6-44) - TRANSMISSION RANGE SHIFT CONTROL (INTERNAL) - WITHOUT FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN

1

1286428C1

FORK

ASSEMBLY - front

1шт.

2

103062C1

SPRING

poppet ball

2шт.

3

17013R1

BALL,13/32" Dia

2шт.

4

1970929C1

FORK

ASSEMBLY - range shift, rear

1шт.

5

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

148501C1

RING, SNAP

RING SNAP retaining

2шт.

8

1286415C1

RAIL

range shift forks

1шт.

9

1286423C1

BUSHING

range shift pin

2шт.

10

1286421C1

ARM

range shift, inner

1шт.

11

1536038C1

STRIP

PLATE - retainer

1шт.

12

1970921C1

PLATE, LOCKING

range interlock

1шт.

13

19605R1

LOCK NUT,1/2"-13, GB

hex, 1/2 inch NC

2шт.

13

131-208

SPECIAL NUT,1/2"-13

hex, 1/2 inch NC (Optional to 19605R1)

2шт.

14

95-81022

WASHER,0.78" ID x 1.5" OD x 0.03" Thk

flat, 0.781 x 1.5 x 0.027 inch

1шт.

15

95-81022

WASHER,0.78" ID x 1.5" OD x 0.03" Thk

flat, 0.781 x 1.5 x 0.027 inch

1шт.

15

95-81023

WASHER,25/32" x 1 1/2" x .060"

flat, 0.781 x 1.5 x 0.054 inch

1шт.

16

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

4шт.

17

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

18

95-81022

WASHER,0.78" ID x 1.5" OD x 0.03" Thk

flat, 0.781 x 1.5 x 0.027 inch

1шт.

19

1536657C1

ARM ASSY.

range shift (H/N)

1шт.

20

1536518C1

ARM ASSY.

range shift (L/R)

1шт.

21

1970933C1

ARM ASSY.

range shift

1шт.

22

27889R1

SNAP RING,#37, .341", Ext

retaining, external, 0.341 inch

1шт.

23

1536289C2

SUPPORT

BRACKET ASSEMBLY - support, range outrigger

1шт.

24

1536332C1

HALF-BUSHING

HALF BUSH support bracket

1шт.

25

1536295C2

SPACER

long, outrigger bracket

1шт.

26

1536295C2

SPACER

long, outrigger bracket

1шт.

27

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

28

13-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

2шт.
