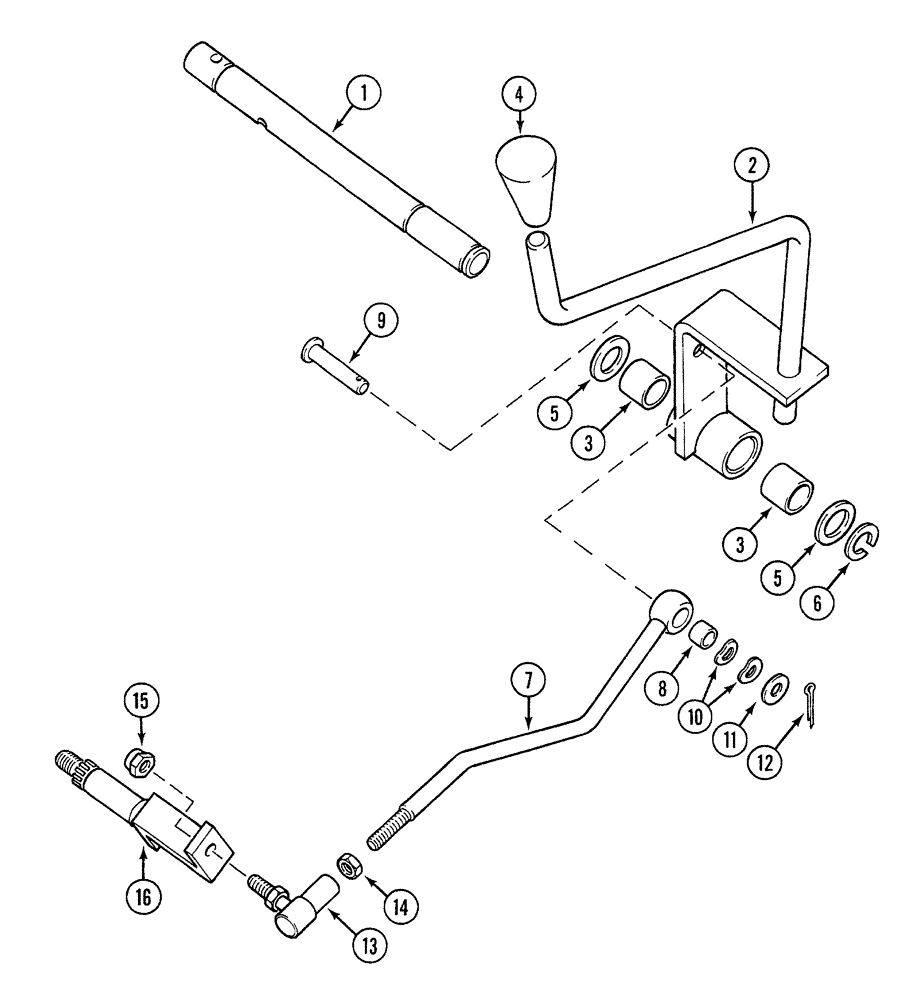

Запчасти Case 380B (6-42) - TRANSMISSION RANGE SHIFT CONTROLS - WITH FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN

1

3129270R1

SHAFT

SHAFT - idle, range shift lever

1шт.

2

3129271R94

LEVER ASSY.

range shift

1шт.

3

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

lever

2шт.

4

1332762C1

BALL KNOB

range lever

1шт.

5

615192R1

WASHER

flat, 29/64 x 1-1/4 x 1/64 inch

2шт.

6

454331R1

SNAP RING,#87, Ext

1шт.

7

1526648C1

ROD ASSY.

range shift, rear

1шт.

8

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod end

1шт.

9

865197R1

CLEVIS PIN,3/8" x 1.218"

clevis, 3/8 x 1-7/32 inch

1шт.

10

83723R1

WAVE WASHER

spring

2шт.

11

95-81079

WASHER,13/32" x 3/4" x .024"

plain, 13/32 x 5/8 x 3/64 inch

1шт.

12

32-612

COTTER PIN,3/32" x 3/4"

1шт.

13

653867C1

BALL JOINT

ASSEMBLY - ball, 3/8 inch

1шт.

14

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

15

3048059R91

LOCK NUT

3/8 inch NF

1шт.

16

1536518C1

ARM ASSY.

range shift (See Figure 6-46)

1шт.
