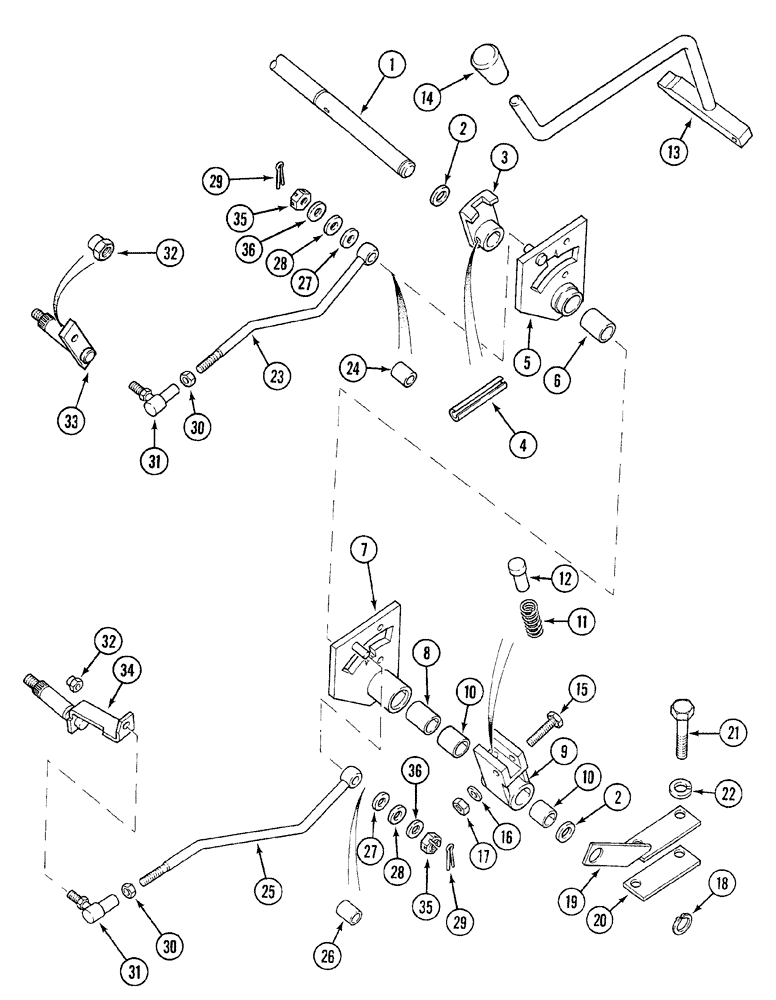

Запчасти Case 380B (6-40) - TRANSMISSION RANGE SHIFT CONTROL - WITHOUT FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN

1

3129155R2

SHAFT

SHAFT - idle, range shift lever

1шт.

2

615192R1

WASHER

flat, 28/32 x 1-1/4 x 1/32 inch

1шт.

3

98573C1

LEVER

GATE ASSEMBLY - shift

1шт.

4

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

5

1536634C1

LEVER

range shift (L/R)

1шт.

6

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

7

1536635C1

LEVER ASSY.

range shift (H/N)

1шт.

8

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

9

3129214R92

HOUSING ASSY.

selector arm

1шт.

10

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

housing

2шт.

11

71486C1

SPRING

compression

1шт.

12

22938R1

HEADED PIN,5/16" x 1/2"

1шт.

13

3129268R2

LEVER ASSY.

range shift

1шт.

14

1265216C1

BALL KNOB

range shift lever

1шт.

15

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

Selector arm pivot

1шт.

16

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16)

1шт.

17

9413979

LOCK NUT,3/8"-16, GC

hex lock, 3/8 inch NC, grade 8

1шт.

18

454331R1

SNAP RING,#87, Ext

1шт.

19

1287659C1

SUPPORT

BRACKET ASSEMBLY - shift lever

1шт.

20

1287660C1

PLATE

shim

1шт.

21

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

22

492-11062

BEARING WASHER,5/8"

2шт.

23

1536646C1

ROD ASSY.

range shift (L/R)

1шт.

24

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod end

1шт.

25

1536648C1

ROD ASSY.

range shift (H/N)

1шт.

26

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod end

1шт.

27

83723R1

WAVE WASHER

spring

2шт.

28

95-81079

WASHER,13/32" x 3/4" x .024"

flat, 13/32 x 5/8 x 3/64 inch

2шт.

29

32-612

COTTER PIN,3/32" x 3/4"

2шт.

30

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

31

653867C1

BALL JOINT

ASSEMBLY - ball, 3/8 inch, type G-4

2шт.

32

3048059R91

LOCK NUT

nylon insert, 3/8 inch NF

2шт.

33

1536518C1

ARM ASSY.

range shift (L/R) (See Figure 6-44)

1шт.

34

1536657C1

ARM ASSY.

range shift (H/N) (See Figure 6-44)

1шт.

35

425-126

SLOTTED NUT,3/8"-16, G5

hex slotted, 3/8 inch NC, grade 8

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.
