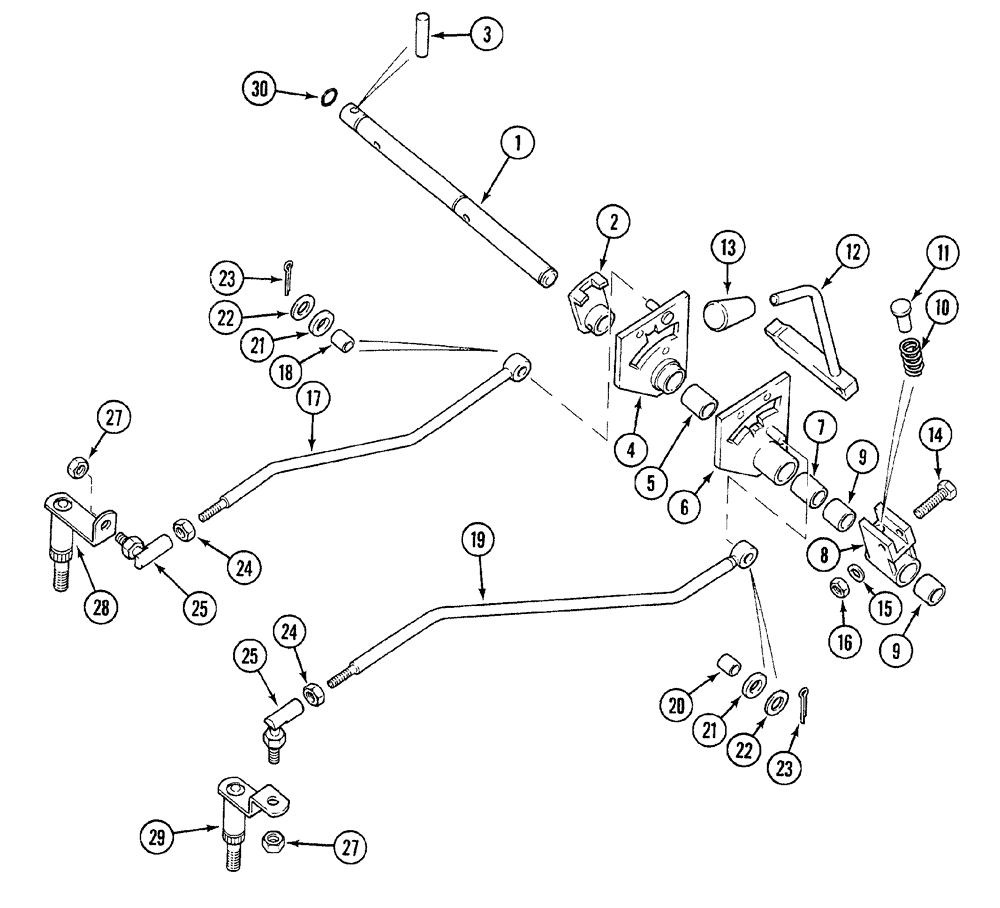

Запчасти Case 380B (6-38) - TRANSMISSION SPEED SHIFT CONTROL (06) - POWER TRAIN

1

3129155R2

SHAFT

SHAFT - idle, range shift lever

1шт.

2

3129218R2

PLATE

GATE ASSEMBLY - shift

1шт.

3

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

2шт.

4

3129211R91

LEVER ASSY.

speed shift, 1st/2nd

1шт.

5

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

6

3129217R91

LEVER ASSY.

speed shift, 3rd/4th

1шт.

7

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

8

3129214R92

HOUSING ASSY.

selector arm

1шт.

9

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

housing

2шт.

10

71486C1

SPRING

compression

1шт.

11

22938R1

HEADED PIN,5/16" x 1/2"

1шт.

12

3129265R2

LEVER

speed shift

1шт.

13

1265215C1

BALL KNOB

speed shift lever

1шт.

14

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

Selector arm pivot . .

1шт.

15

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16)

1шт.

16

9413979

LOCK NUT,3/8"-16, GC

hex lock, 3/8 inch NC, grade 8

1шт.

17

3129222R91

ROD ASSY.

speed shift, 1st/2nd

1шт.

18

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod end

1шт.

19

3129226R91

ROD ASSY.

speed shift, 3rd/4th

1шт.

20

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

rod end

1шт.

21

83723R1

WAVE WASHER

spring

2шт.

22

95-81079

WASHER,13/32" x 3/4" x .024"

flat, 13/32 x 3/4 x 1/64 inch

2шт.

23

32-612

COTTER PIN,3/32" x 3/4"

2шт.

24

1500536C1

JAM NUT

hex, jam 7/16 inch NF

2шт.

25

1500497C1

BALL JOINT

2шт.

27

231-4617

LOCK NUT,7/16"-20, GB

hex lock, 7/16 inch NF

2шт.

27

702455R1

LOCK NUT

hex lock, 7/16 inch NF, Serial Range: (Optional-274841)

2шт.

28

3129166R1

ARM ASSY.

speed shift actuating, 1st/2nd (See Figure 6-08)

1шт.

29

3129172R1

ARM ASSY.

speed shift actuating, 3rd/4th (See Figure 6-08)

1шт.

30

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.
