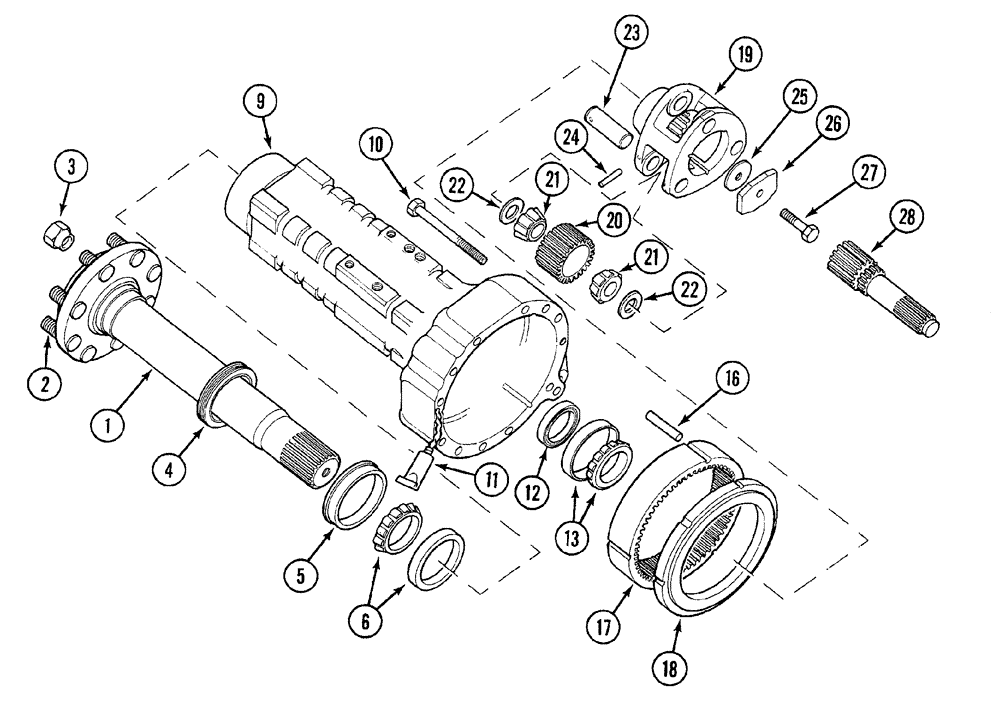

Запчасти Case 380B (6-34) - REAR AXLE AND CARRIER (06) - POWER TRAIN

1

404340R21

HALF SHAFT

AXLE ASSEMBLY - rear

2шт.

2

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT - rear wheel mounting

8шт.

3

3047575R3

NUT,Wheel, 5/8"-18

rear wheel mounting

16шт.

4

105470C1

OIL SEAL

rear axle outer

2шт.

5

399754R1

SLEEVE

SLEEVE - wear

2шт.

6

1500904C91

ROLLER BEARING

ASSEMBLY - roller, rear axle outer

2шт.

6

ST2000A

TAPERED BEARING

BEARING ASSEMBLY - roller, Serial Range: (Optional-1500904C91)

2шт.

6

102160H

BEARING ASSY

ASSEMBLY - roller, Serial Range: (Optional-1500904C91)

2шт.

6

399756R91

BEARING ASSY,2.6876" ID x 4.3307" OD x 0.8661, 0.7411"

BEARING ASSEMBLY - roller (Optional to 1500904C91)

2шт.

9

94225C1

AXLE CARRIER

rear, left hand

1шт.

9

94226C1

AXLE CARRIER

rear, right hand

1шт.

10

26-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

BOLT - hex, 5/8 NC x 4 inch, grade 8

22шт.

11

B17555

LOCTITE

SEALANT - gasket maker No. 515, 50 ml tube

1шт.

12

380200R92

OIL SEAL

oil, rear axle inner

2шт.

12

530094R1

SEAL

oil, Serial Range: (Optional-380200R92)

2шт.

13

299188R91

BEARING ASSY

ASSEMBLY - roller, rear axle inner

2шт.

13

298189R91

BEARING ASSY,2.5" ID x 4.3307" OD x 0.866"

ASSEMBLY - roller (Optional to 299188R91)

2шт.

13

1500907C91

ROLLER BEARING

ASSEMBLY - roller, Serial Range: (Optional-299188R91)

2шт.

16

529685R1

DOWEL

dowel, 3/8 x 2-1/4 inch

6шт.

17

535316R1

GEAR, RING

RING, GEAR 66 teeth

2шт.

18

114620C1

RING,260mm OD

brake outer disc

2шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - planet gear

2шт.

20

399784R2

PINION

GEAR - planet, 25 teeth

6шт.

21

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

planet gear, inner

12шт.

21

1536194C1

ROLLER BEARING,34.925 mm ID x 65.113 mm OD x 18.21 mm

(Optional to 618023R91)

12шт.

65420C1

SHIM KIT

KIT - service, planet gear shim

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch

3шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.049 inch

3шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.056 inch

3шт.

23

399788R1

PIN

planet shaft

6шт.

24

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

65422C1

SHIM KIT

KIT - service, rear axle retainer

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

3шт.

25

NSS

NOT SOLD SEPARAT

SHIM - 0.012 inch

3шт.

25

NSS

NOT SOLD SEPARAT

SHIM - 0.0299 inch

2шт.

26

399748R1

SPACER

planet carrier

2шт.

27

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

hex, 5/8 NF x 1-1/2 inch, grade 8

2шт.

28

404338R1

SHAFT

planetary drive, right hand

1шт.

28

404337R1

SHAFT

planetary drive, left hand

1шт.
