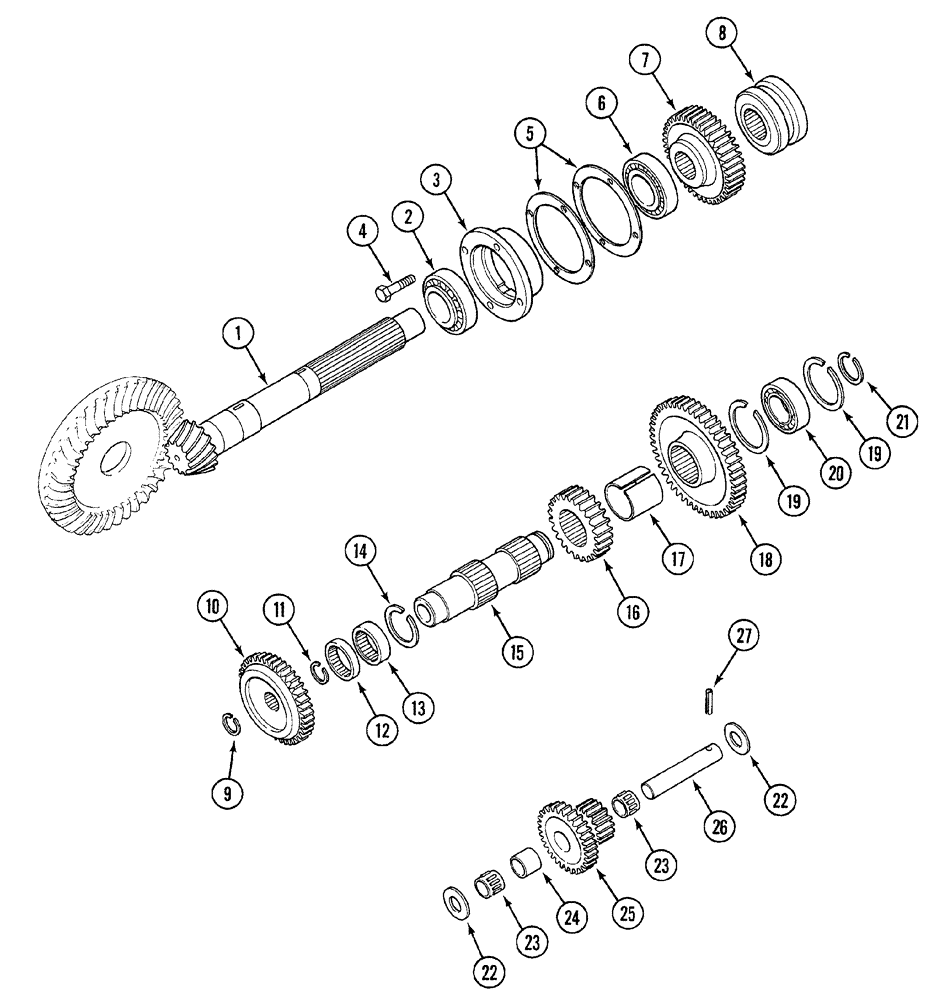

Запчасти Case 380B (6-30) - RANGE TRANSMISSION (06) - POWER TRAIN

1

99449C1

GEAR, BEVEL

BEVEL GEAR GEAR SET - bevel, with matched shaft, 12/53 teeth

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSEMBLY - main shaft rear

1шт.

2

399824R91

ROLLER BEARING

BEARING ASSEMBLY -, Serial Range: (Optional-399823R91)

1шт.

2

1502181C91

BALL BEARING

ASSEMBLY -, Serial Range: (Optional-399823R91)

1шт.

3

399825R2

BALL RACE

CAGE - bearing, main shaft

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

65423C1

SHIM KIT

KIT - service, main shaft bearing cage

1шт.

5

NSS

NOT SOLD SEPARAT

SHIM - 0.004 inch

2шт.

5

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

5шт.

6

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSEMBLY - main shaft front

1шт.

6

399822R91

ROLLER BEARING

BEARING ASSEMBLY -, Serial Range: (Optional-399821R91)

1шт.

6

1502180C91

BALL BEARING

ASSEMBLY -, Serial Range: (Optional-399821R91)

1шт.

7

1286470C1

GEAR

sliding, forward/reverse, 42 teeth

1шт.

8

1277137C1

COLLAR ASSY.

high speed shift

1шт.

9

533266R1

RING, SNAP

RING SNAP retaining, external, 0.98 inch

1шт.

10

94404C1

PINION

GEAR - pump drive, 55 teeth

1шт.

11

399837R1

SNAP RING,#118, 1.121", Ext

retaining, external, 1.121 inch

1шт.

12

527747R91

BEARING, NEEDLE

pump drive gear

1шт.

12

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

, Serial Range: (Optional-527747R91)

1шт.

13

94376C91

NEEDLE BEARING,47.625 mm ID x 57.162 mm OD x 25.4 mm

needle, countershaft

1шт.

14

398264R1

SNAP RING,#215, 2.026", Ext

retaining, external, 2.026 inch

1шт.

15

94403C1

SHAFT

counter, range transmission

1шт.

16

103150C1

PINION

GEAR - driving, lo range, 24 teeth

1шт.

17

399835R1

BUSHING

countershaft gears

1шт.

18

404097R1

GEAR

constant mesh, 46 teeth

1шт.

19

399832R1

RING, SNAP

RING SNAP retaining, countershaft bearing

2шт.

20

G10418

BEARING, BALL

transmission countershaft

1шт.

20

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

(Optional to G10418)

1шт.

20

71069C91

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

(Optional to G10418)

1шт.

20

360635R91

BEARING, BALL

, Serial Range: (Optional-G10418)

1шт.

20

528101R91

BEARING, BALL

, Serial Range: (Optional-G10418)

1шт.

20

528102R91

BEARING, BALL

, Serial Range: (Optional-G10418)

1шт.

20

3047867R91

BEARING, BALL

, Serial Range: (Optional-G10418)

1шт.

20

3069304R91

BALL BEARING

, Serial Range: (Optional-G10418)

1шт.

21

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining

1шт.

22

3112846R1

THRUST WASHER

2шт.

23

3069773R91

NEEDLE BEARING

BEARING - needle, reverse idler gear

2шт.

23

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

needle (Optional to 3069773R91)

2шт.

24

3112845R1

SPACER

idler bearing

1шт.

25

1975490C1

GEAR

reverse idler, 20/24 teeth

1шт.

26

399838R3

SHAFT

reverse idler

1шт.

27

366281R1

PIN,3/8" x 2", Coiled

1шт.
