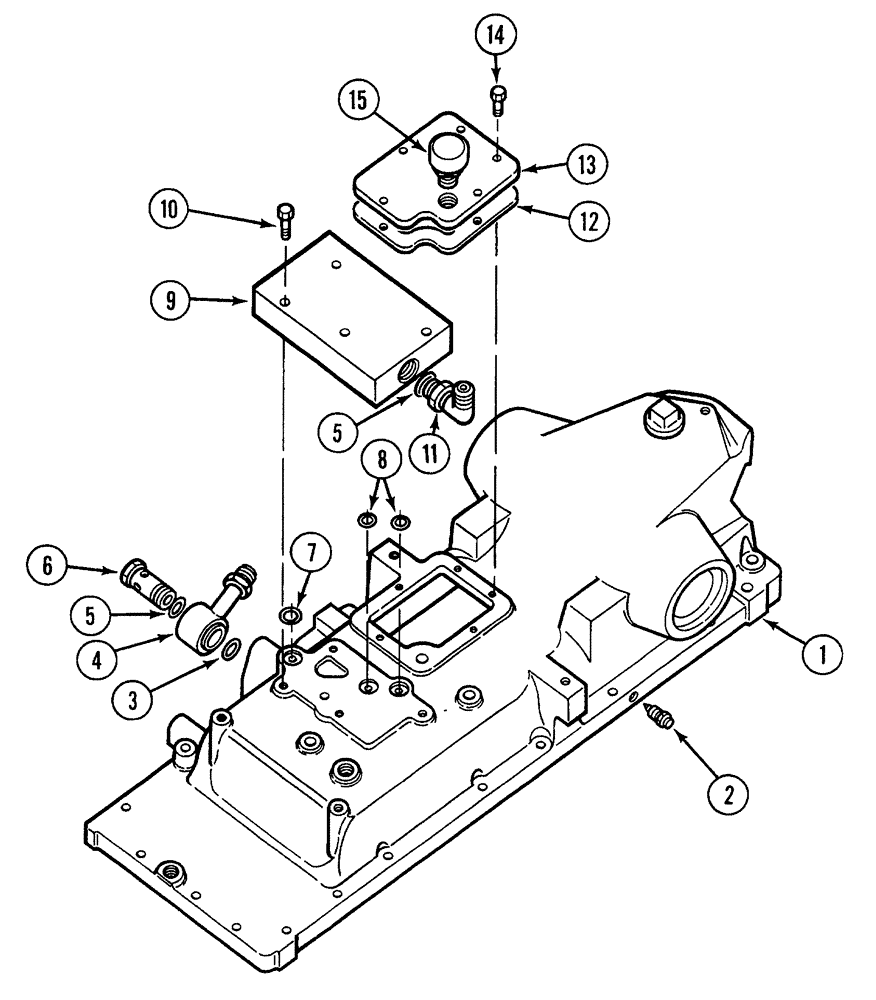

Запчасти Case 380B (6-28) - REAR FRAME - TOP COVER CONNECTIONS (06) - POWER TRAIN

1

529381R96

COVER ASSY

rear frame (See Figure 6-26)

1шт.

2

82301R1

BLEEDER,3/8" - 24 x 117mm

brake bleed

2шт.

2

3068777R1

SCREW

brake bleed (Optional to 82301R1 )

2шт.

3

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 ID x 1/16 inch wide, class 6

1шт.

4

66762C1

PIPE,0.625" OD, 3.5" Length

TUBE ASSEMBLY - inlet union

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

6

66766C1

PLUG

inlet union

1шт.

7

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

8

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

9

529382R1

MANIFOLD

auxiliary valve

1шт.

10

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8 inch NF flare x adj O-ring boss

1шт.

12

1970892C1

GASKET

linkage access cover

1шт.

13

99969C1

COVER

linkage access

1шт.

14

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

15

1971726C1

BREATHER,1/4" - 18

hydraulic unit housing, 1/4 inch PT

1шт.
