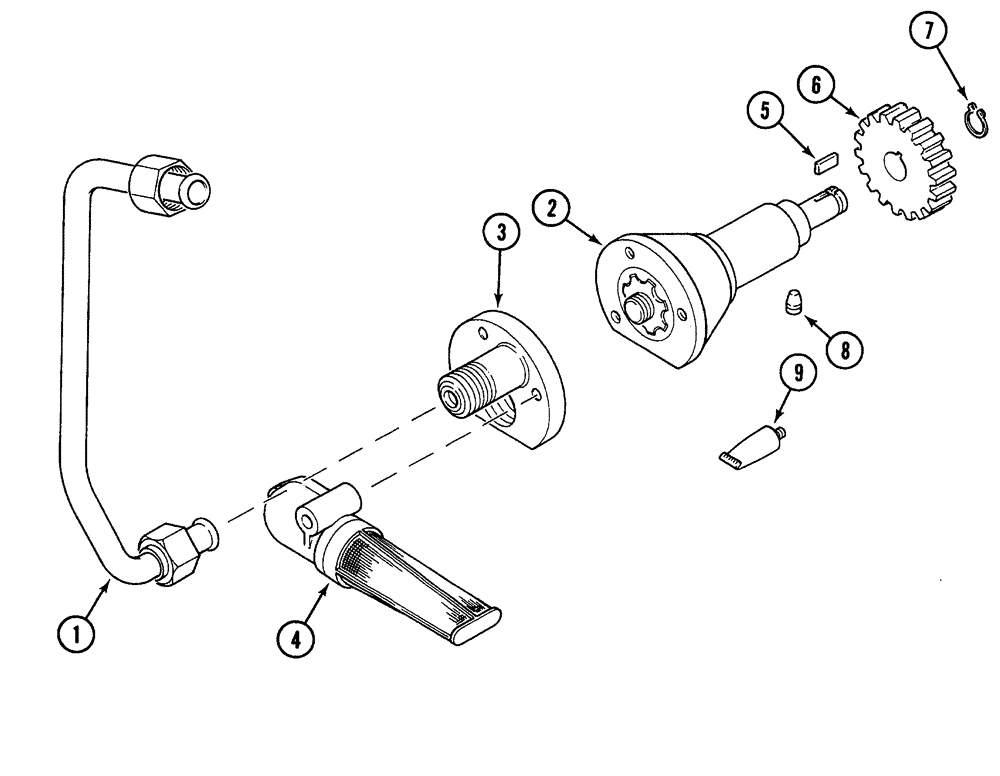

Запчасти Case 380B (6-24) - REAR FRAME - TRANSFER OIL PUMP (06) - POWER TRAIN

1

527423R1

PRESSURE PIPE

transfer pump outlet

1шт.

2

3123726R92

PUMP, HYDRAULIC

ASSEMBLY - oil transfer

1шт.

3

3123727R1

PLATE

end

1шт.

4

1282191C2

STRAINER ELEMENT

pump

1шт.

5

529100R1

BUCKET TOOTH KEY

transfer pump driven gear

1шт.

6

528095R1

PINION

GEAR - transfer pump driven, 21 teeth

1шт.

7

3042123R1

RING, SNAP

RING SNAP retaining, driven gear

1шт.

8

527424R1

SCREW

pump retaining

2шт.

9

69351C1

GLUE

FLUID - adhesive, 1 oz tube

1шт.
