(6-22) - REAR FRAME - OIL LEVEL GAUGE

Запчасти Case 380B (6-22) - REAR FRAME - OIL LEVEL GAUGE (06) - POWER TRAIN

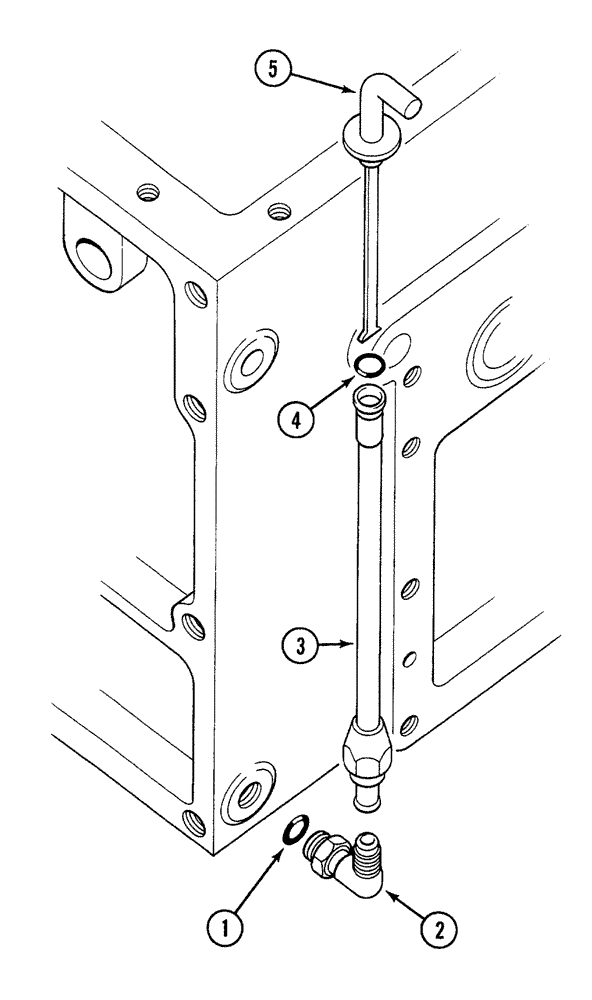

Схема запчастей Case 380B - (6-22) - REAR FRAME - OIL LEVEL GAUGE (06) - POWER TRAIN
3
2
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

3

528059R1

TUBE

rear frame oil level gauge

1шт.

4

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

5

528054R2

DIPSTICK

GAUGE ASSEMBLY - rear frame oil level

1шт.

1

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
