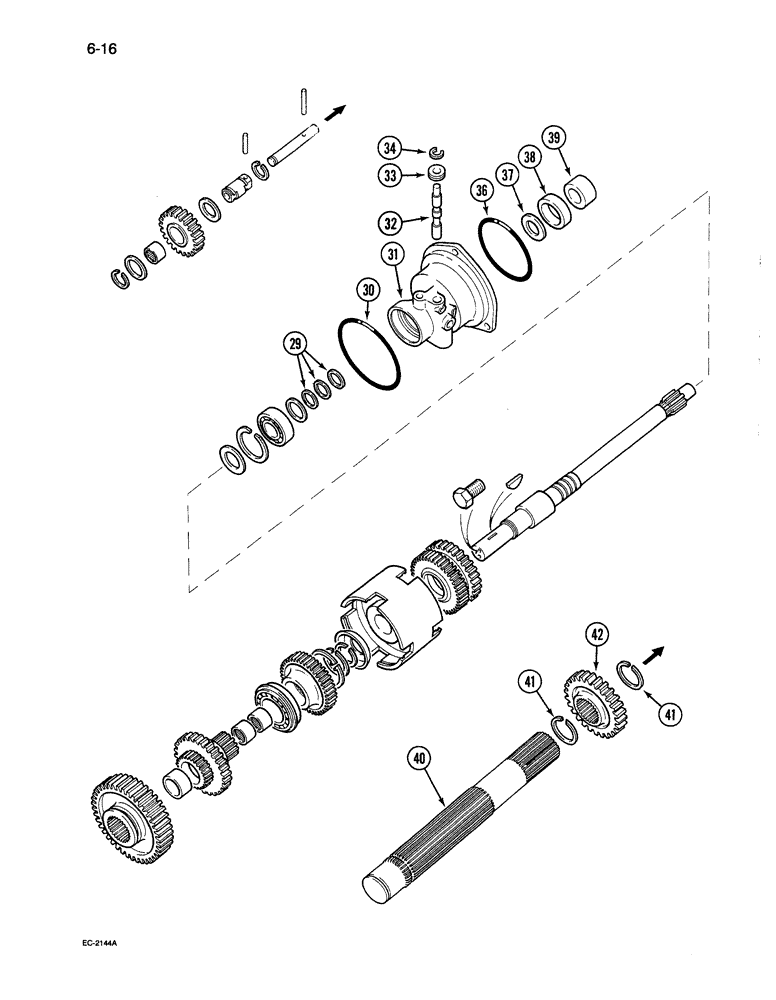

Запчасти Case 380B (6-16) - SPEED TRANSMISSION - FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN

29

85038C1

SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk

clutch shaft piston

3шт.

30

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

31

1342932C1

BEARING CARRIER

CAGE ASSEMBLY - IPTO and clutch cup retainer

1шт.

32

536974R1

STEM

forward and reverse control

1шт.

33

531539R1

COLLAR

control stem

1шт.

34

896045R1

SNAP RING,#37, Ext

1шт.

1277488C2

SEAL KIT

service, seals

1шт.

36

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - oil, clutch shaft

1шт.

38

NSS

NOT SOLD SEPARAT

SEAL - oil, IPTO drive shaft

1шт.

39

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

release sleeve

1шт.

40

404104R3

SHAFT

counter

1шт.

41

381486R1

SNAP RING,#187, 1.759", Ext

retaining, external, 1.759 inch

2шт.

42

527771R1

PINION

GEAR - forward/reverse driven 31 teeth

1шт.
