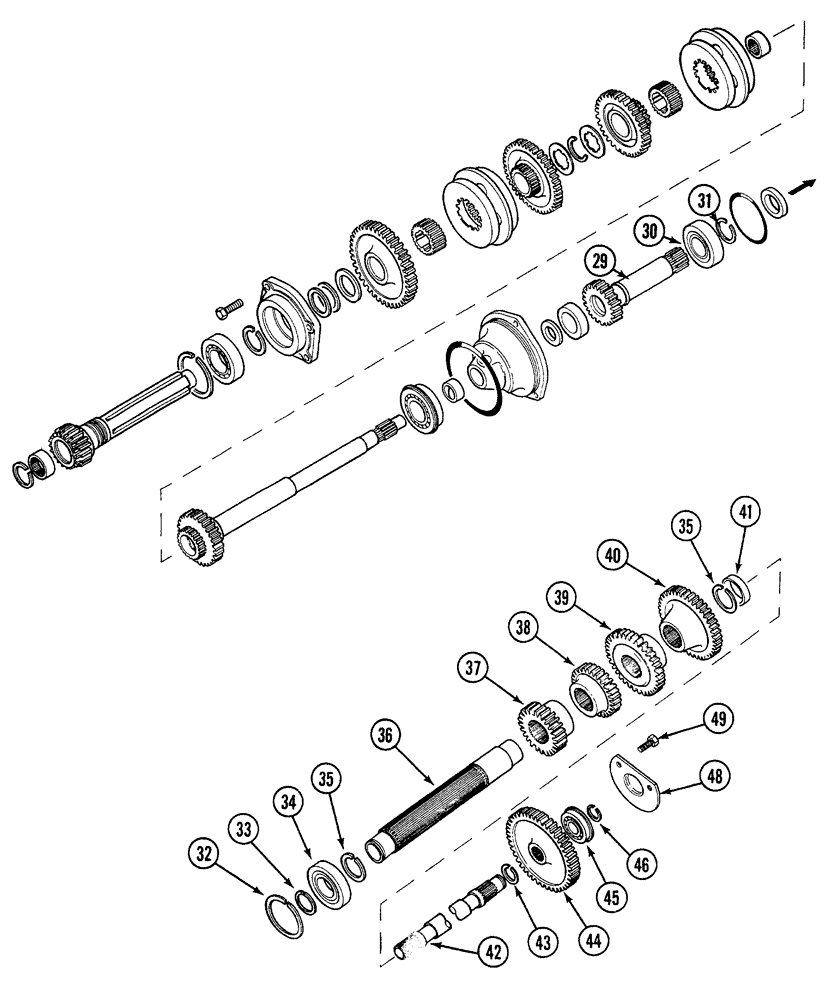

Запчасти Case 380B (6-12) - SPEED TRANSMISSION (06) - POWER TRAIN

29

1342556C2

SHAFT

drive, IPTO

1шт.

30

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

IPTO drive shaft

1шт.

30

67653C91

BEARING

ball, Serial Range: (Optional-ST342)

1шт.

30

65354C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST342)

1шт.

30

1502094C91

BALL BEARING,44.9945 mm ID x 84.9945 mm OD x 18.94 mm

ball (Optional to ST342)

1шт.

31

379511R1

SNAP RING,#177, 1.657", Ext

retaining, external, 1.657 inch

1шт.

32

574964R1

RING, SNAP

RING SNAP countershaft bearing, inner

1шт.

33

379511R1

SNAP RING,#177, 1.657", Ext

retaining, external, 1.657 inch

1шт.

34

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

countershaft

1шт.

34

13176D

BALL BEARING,2.257" ID x 3.3465" OD x 0.748"

BEARING - ball (Optional to ST201)

1шт.

34

67646C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST201)

1шт.

34

114577C91

BEARING, BALL,44.994 mm ID x 84.9925 mm OD x 18.94 mm

(Optional to ST201)

1шт.

34

452883R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST201)

1шт.

35

398264R1

SNAP RING,#215, 2.026", Ext

retaining, external, 2.026 inch

2шт.

36

404089R2

SHAFT

counter, speed transmission (See Figure 6-18)

1шт.

37

404093R1

GEAR

GEAR - 1st speed drive, 26 teeth

1шт.

38

404092R1

PINION

GEAR - 2nd speed drive, 34 teeth

1шт.

39

404091R1

PINION

GEAR - 4th speed drive, 43 teeth

1шт.

40

404090R1

PINION

GEAR - constant mesh driven, 39 teeth

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

countershaft

1шт.

41

527746R91

BEARING, NEEDLE

, Serial Range: (Optional-399820R91)

1шт.

42

99439C1

SHAFT

IPTO driven, front

1шт.

43

399837R1

SNAP RING,#118, 1.121", Ext

retaining, external, 1.121 inch

1шт.

44

1342559C2

GEAR

IPTO driven, 46 teeth

1шт.

45

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

IPTO driven shaft front

1шт.

45

67654C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST367)

1шт.

45

65353C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST367)

1шт.

45

69384C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST367)

1шт.

45

1502192C91

BALL BEARING,25 mm ID x 67.7 mm OD x 17 mm

BEARING - ball (Optional to ST367)

1шт.

45

80491C91

BEARING ASSY

ball, Serial Range: (Optional-ST367)

1шт.

46

A32438

SNAP RING

RING - retaining, IPTO driven shaft front bearing

1шт.

48

398259R1

LARGE PLATE

PLATE, LARGE RETAINER - IPTO driven shaft front bearing cap

1шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.
