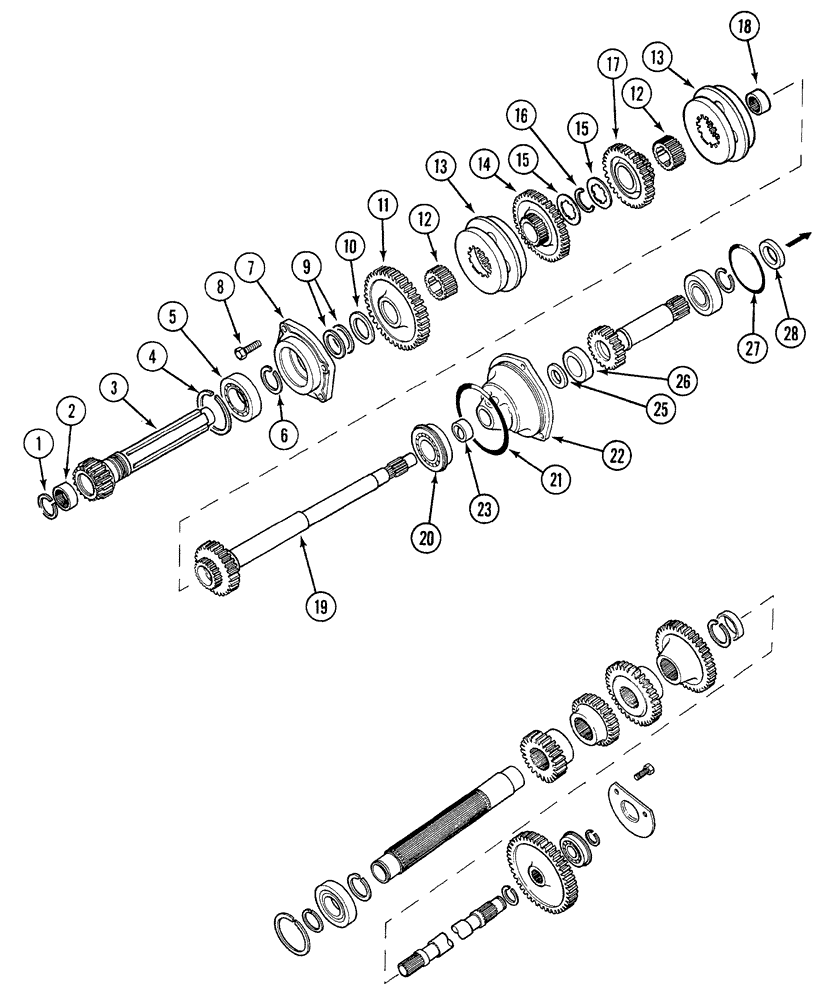

Запчасти Case 380B (6-10) - SPEED TRANSMISSION (06) - POWER TRAIN

1

66014C1

SNAP RING

internal snap

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

needle

1шт.

3

65258C1

SHAFT

main, speed transmission

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - internal snap

1шт.

5

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

main shaft

1шт.

5

71271C91

BALL BEARING

BEARING - ball (Optional to 201 61 D)

1шт.

5

704234R91

BALL BEARING

BEARING - ball (Optional to 201 61 D)

1шт.

5

304870R91

BEARING, BALL

(Optional to 201 61 D)

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining

1шт.

7

534411R1

BEARING ASSY

CAGE ASSEMBLY - main shaft bearing

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

sealing, main shaft lubrication line

2шт.

10

398332R1

WASHER

mainshaft bearing cage

1шт.

11

398331R2

PINION

GEAR - 1st speed driven, 41 teeth

1шт.

12

398325R1

HUB

speed shift, 1st/2nd

2шт.

13

65793C2

SYNCHRONIZER

with cups

2шт.

14

398330R3

PINION

GEAR - 2nd speed driven, 33 teeth

1шт.

15

398328R2

THRUST WASHER

main shaft

2шт.

16

398329R1

CIRCLIP

synchronizer locating

1шт.

17

398327R3

PINION

GEAR - 4th speed driven, 24 teeth

1шт.

18

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

1шт.

19

92717C1

SHAFT

ASSEMBLY - clutch

1шт.

20

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

clutch shaft

1шт.

20

70126C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

42347D

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

398323R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

3066860R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

3066862R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

3067617R91

BEARING, BALL

, Serial Range: (Optional-ST243)

1шт.

21

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

22

1342860C1

BALL RACE

CAGE ASSEMBLY - IPTO and clutch cup retainer (See page 6-25)

1шт.

23

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

clutch shaft

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - oil, clutch shaft (Order kit 1277488C2)

1шт.

Part of P/N 1277488C2 Service Kit

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - oil, IPTO drive shaft (Order kit 1277488C2)

1шт.

Part of P/N 1277488C2 Service Kit

1шт.

27

238-5340

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

3-3/4 x 1/8 inch wide

1шт.

Part of P/N 1277488C2 Service Kit

1шт.

28

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

release sleeve

1шт.

Part of P/N 1277488C2 Service Kit

1шт.

1277488C2

SEAL KIT

service, seals (Includes: Ref. 25, 26, 27 and 28)

1шт.
