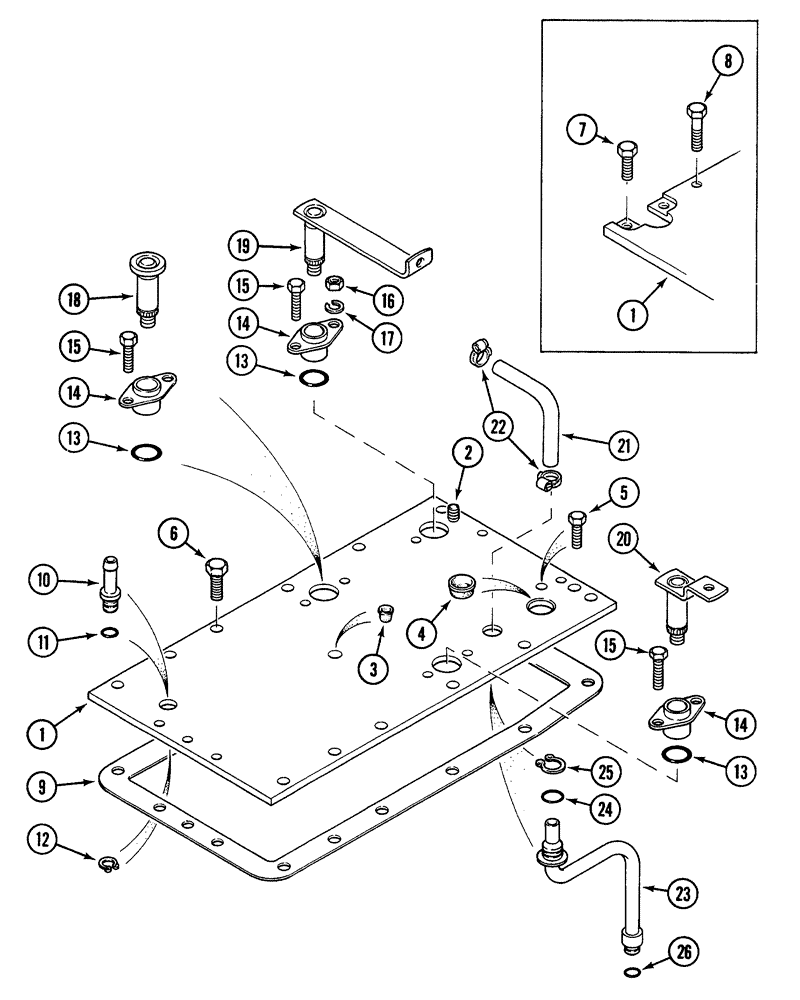

Запчасти Case 380B (6-08) - CLUTCH HOUSING - TOP COVER (06) - POWER TRAIN

1

99498C91

COVER

ASSEMBLY - clutch housing top (With forward/reverse)

1шт.

2

3129159R1

STUD

top cover

1шт.

3

24901R1

PLUG,Cup, 3/8"

cup, 3/8 inch

1шт.

4

349373R1

PLUG

cup, 1-1/4 inch

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Used with cover 99495C91

16шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used with cover 99498C9

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Used with cover 99498C91)

14шт.

9

1970894C1

GASKET

clutch housing top cover

1шт.

10

3129200R1

ADAPTER

brake return hose

1шт.

11

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

12

21332R1

SNAP RING,#68, Ext

1шт.

13

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

3шт.

14

3129165R2

HOUSING

speed shift arm

3шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

16

425-105

NUT,5/16"-18, G5

1шт.

17

92-11031

LOCK WASHER,5/16"

1шт.

18

1277030C1

PIVOT ASSY.

interlock

1шт.

19

3129166R1

ARM ASSY.

speed shift, 1st/2nd (See Figure 6-38)

1шт.

20

3129172R1

ARM ASSY.

speed shift, 3rd/4th (See Figure 6-38)

1шт.

21

1500242C1

HOSE,6.75 mm ID, 12.7 mm OD, 92 mm Length

Lubrication

1шт.

22

3125239R1

COLLAR

hose, worm drive

2шт.

23

3129164R1

TUBE ASSY.,0.25" OD, 190.5, 83 mm Length

transmission lubrication

1шт.

24

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

25

269181R1

SNAP RING,#75, Ext

#75, Ext

1шт.

26

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.
