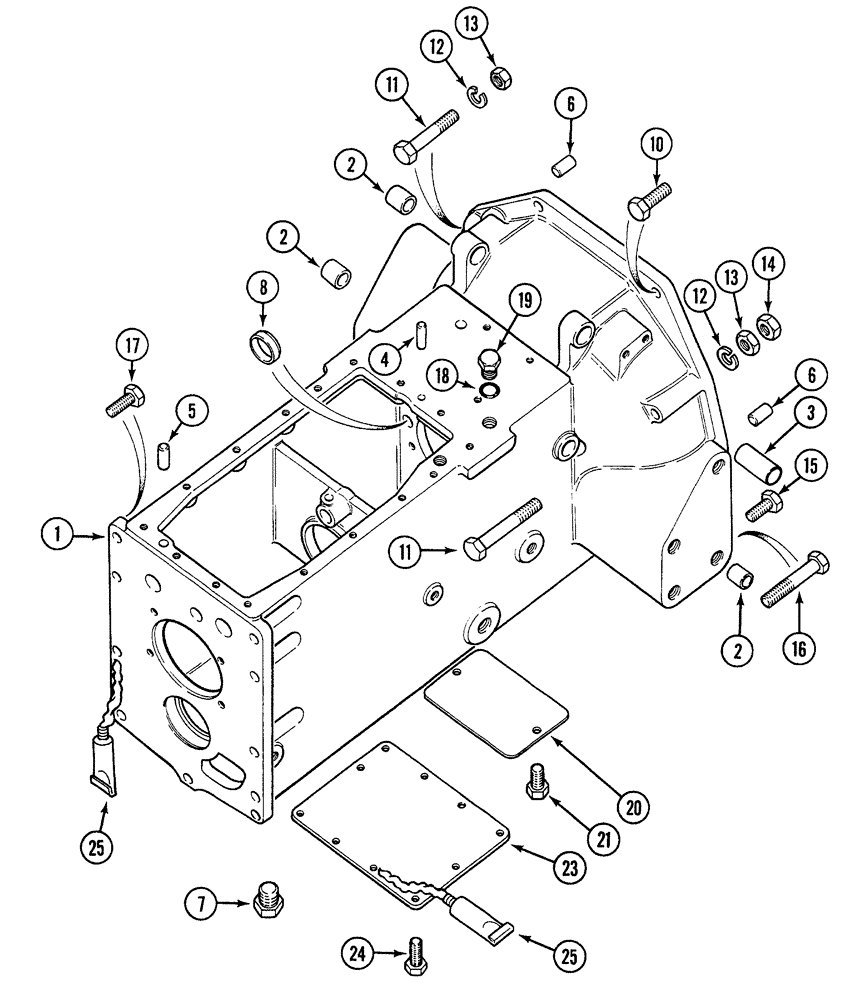

Запчасти Case 380B (6-06) - CLUTCH HOUSING (06) - POWER TRAIN

1

94294C92

HOUSING

ASSEMBLY - clutch

1шт.

2

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

clutch and brake shaft

3шт.

3

537099R1

NO LONGER SERVICED

BUSHING - left brake pedal pivot

1шт.

3

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

left brake pedal pivot, Serial Range: (Optional-537099R1)

1шт.

4

19962R1

DOWEL,3/8" x 3/4"

1шт.

5

20556R1

DOWEL,1/2" x 3/4"

1шт.

6

19904R1

DOWEL,1/2" x 1"

2шт.

7

444836

PLUG,Hex Hd, 3/4"-14

hex, 3/4 inch PT

1шт.

7

3113103R1

PLUG

hex, 3/4 inch PT, Serial Range: (Optional-444836)

1шт.

8

327411R1

PLUG,Cup, 5/8"

cup, 5/8 inch

1шт.

10

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

11

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

12

92-11050

LOCK WASHER,1/2"

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

2шт.

14

25-148

JAM NUT,Jam, 1/2"-13, G5

NC

1шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Thru spacer to clutch housing)

4шт.

16

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

(Thru pan and spacer to clutch housing)

2шт.

17

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

9шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

9410359

PLUG

hex, 3/4-16 inch O-ring boss

1шт.

20

399817R1

COVER

clutch compartment

1шт.

21

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

23

1536388C1

COVER

clutch housing bottom rear

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used with cover 1536388C1

11шт.

25

B17501

LOCTITE

SEALANT - gasket maker No. 515, 6 ml tube

1шт.
