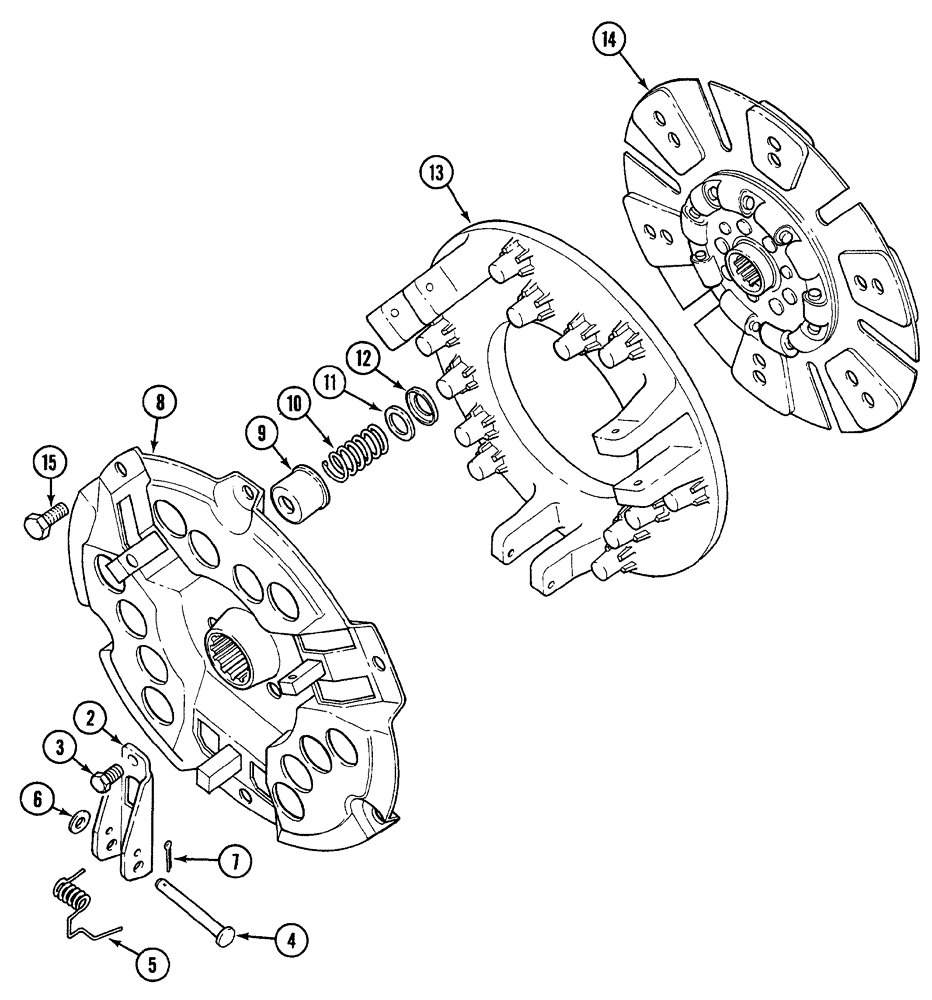

Запчасти Case 380B (6-04) - HEAVY DUTY CLUTCH - 12 INCH ROCKFORD (06) - POWER TRAIN

1944257C1

COVER ASSY

PLATE clutch pressure, remanufactured

1шт.

1944258C1

CORE-CLUTCH PLATE

RETURN NUMBER pressure (Use this part number to return clutch pressure plate core for credit)

1шт.

85025C1

CLUTCH

PLATE ASSEMBLY - pressure

1шт.

84342556R

REMAN-CLUTCH PLATE

380B (AFTER S/N JJE0001501), Reman For New PN 85025C1

1шт.

84342556C

CORE-CLUTCH PLATE

Return Number

1шт.

85120C91

PACKAGE

KIT - lever assembly

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - release (Order kit 85120C91)

3шт.

3

A25117

ADJUSTMENT SCREW,3/8" - 24 x 17/32"

adjusting

3шт.

4

149487R1

PIN

lever pivot

3шт.

5

375572R1

SPRING

lever tension

3шт.

6

95-11034

WASHER,1/4"

flat, 0.344 x 0.668 x 0.051 inch

3шт.

7

32-610

COTTER PIN,3/32" x 5/8"

3шт.

8

85148C1

PLATE

ASSEMBLY - back

1шт.

9

353316R1

SPRING CUP

12шт.

10

349934C1

SPRING

pressure plate

12шт.

11

311291C1

INSULATING WASHER

insulating

12шт.

12

311292C1

WASHER

retainer

12шт.

13

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

clutch

1шт.

14

85026C2

CLUTCH DISC

CLUTCH DISK PLATE ASSEMBLY driven

1шт.

14

1944259C1

DRIVEN PLATE

ASSEMBLY - clutch disc, remanufactured

1шт.

14

1944260C1

CORE-CLUTCH PLATE

RETURN NUMBER driven disc (Use this part number to return driven disc plate core for credit)

1шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.
