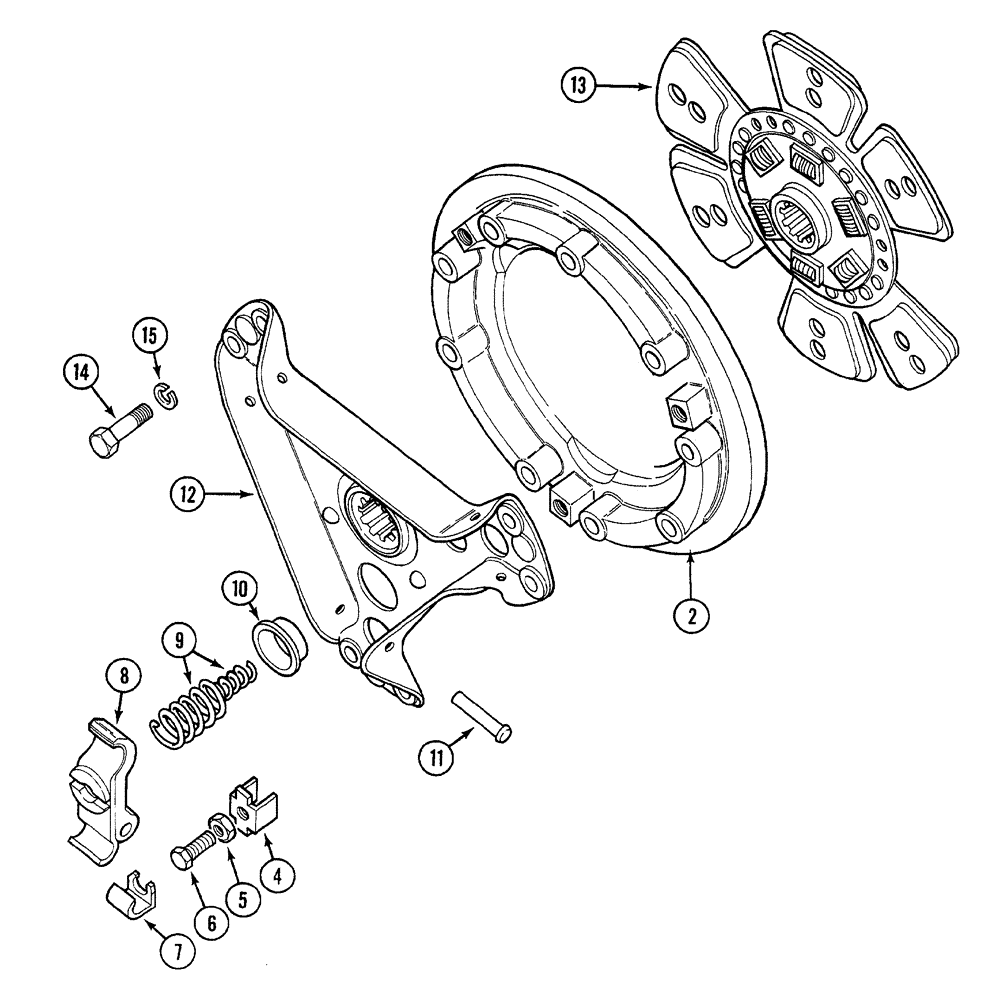

Запчасти Case 380B (6-02) - CLUTCH - 11 INCH LAYCOCK (06) - POWER TRAIN

1944250C1

REMAN-CLUTCH PLATE

Plate - clutch pressure, remanufactured

1шт.

1944251C1

CORE-CLUTCH PLATE

Return Number - pressure (Use this part number to return clutch pressure plate core for credit)

1шт.

92602C91

CLUTCH ASSEMBLY

PLATE pressure

1шт.

92605C1

DISC

KIT - pressure plate assembly

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - pressure (Order kit 92605C1)

1шт.

92607C1

PACKAGE

KIT - adjusting screw and clip

1шт.

4

NSS

NOT SOLD SEPARAT

CLIP - lug (Order kit 92607C1)

3шт.

5

NSS

NOT SOLD SEPARAT

LOCKNUT - adjusting screw (Order kit 92607C1)

3шт.

6

NSS

NOT SOLD SEPARAT

SCREW - adjusting (Order kit 92607C1)

3шт.

7

NSS

NOT SOLD SEPARAT

CLIP - return (Order kit 92607C1)

3шт.

8

NSS

NOT SOLD SEPARAT

LEVER - release (Order kit 92605C1)

3шт.

9

NSS

NOT SOLD SEPARAT

SPRING - pressure (Order kit 92605C1)

3шт.

10

NSS

NOT SOLD SEPARAT

CUP - spring (Order kit 92605C1)

3шт.

11

NSS

NOT SOLD SEPARAT

PIN - pivot (Order kit 92605C1)

3шт.

12

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - clutch (Order 92605C1)

1шт.

13

3121507R94

CLUTCH DISC

CLUTCH DISK PLATE ASSEMBLY - driven

1шт.

13

1944253C1

REMAN-CLUTCH PLATE

Assembly - clutch disc, remanufactured

1шт.

13

1944254C1

DRIVEN PLATE

Return Number - clutch disc (Use this part number to return driven disc plate core for credit)

1шт.

14

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

15

92-11031

LOCK WASHER,5/16"

6шт.
