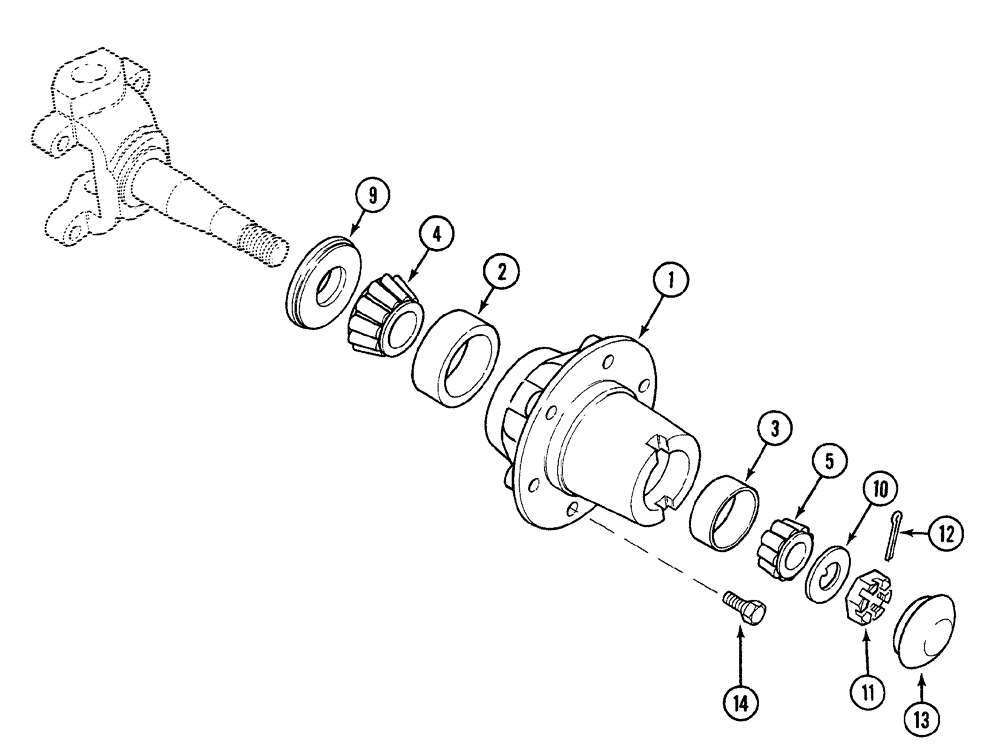

Запчасти Case 380B (5-24) - WHEEL HUB - SWEPT BACK CAST FRONT AXLE (05) - STEERING

1

378401R21

HUB

ASSEMBLY - front wheel

2шт.

2

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

inner

1шт.

Part of P/N 65990C91 Service Kit

1шт.

2

455672R1

BEARING

cup, inner, Serial Range: (Optional-ST954)

1шт.

2

168422R1

BEARING CONE,1.625" ID x 3.4375" OD x 1.1875"

BEARING - cup, inner (Optional to ST954)

1шт.

2

PO14039

BEARING

cup, inner, Serial Range: (Optional-ST954)

1шт.

2

1536184C1

BEARING, CUP

inner, Serial Range: (Optional-ST954)

1шт.

3

20646DA

TAPERED BEARING,1.125" ID x 2.484" OD x 0.937"

outer

1шт.

Part of P/N 65990C91 Service Kit

1шт.

3

118301R1

BEARING, CUP

outer, Serial Range: (Optional-20646DA)

1шт.

3

10101V

BEARING CUP

BEARING - cup, outer, Serial Range: (Optional-20646DA)

1шт.

4

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

inner

2шт.

Part of P/N 65990C91 Service Kit

1шт.

4

455671R91

BEARING CONE

BEARING - cone, inner, Serial Range: (Optional-ST2005A)

2шт.

4

168421R91

ROLLER BEARING,1.75" ID x 3.4375" OD x 1.1875"

cone, inner (Optional to ST2005A)

2шт.

4

M93599

BEARING CONE

BEARING - cone, inner, Serial Range: (Optional-ST2005A)

2шт.

4

1536185C1

ROLLER BEARING

inner, Serial Range: (Optional-ST2005A)

2шт.

5

ST2034

TAPERED BEARING,1.125" ID x 2.484" OD x 0.9375"

cone, outer

2шт.

Part of P/N 65990C91 Service Kit

1шт.

5

118032R91

ROLLER BEARING

cone, outer, Serial Range: (Optional-ST2034)

2шт.

5

M73211

BEARING ASSY

cone, outer, Serial Range: (Optional-ST2034)

2шт.

9

378402R11

RETAINER

felt, hub

2шт.

Part of P/N 65990C91 Service Kit

1шт.

9

97739HX

RING

RETAINER - felt, Serial Range: (Optional-378402R11)

2шт.

10

97788HA

WASHER,1.033" ID x 2.125" OD x 2.03"

adjusting nut

2шт.

Part of P/N 65990C91 Service Kit

1шт.

11

25-1316

NUT,1"-14, G5

Bearing Adj.

2шт.

12

32-828

COTTER PIN,1/8" x 1 3/4"

1/8" x 1 3/4"

2шт.

13

378814R1

CAP

hub front wheel

2шт.

14

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - wheel mounting

2шт.

65990C91

PACKAGE

KIT - service, front wheel bearings (Includes: Ref. 2, P/N ST954; Ref. 3, P/N 20646DA; Ref. 4, P/N ST2005A; Ref. 5, P/N ST2034; Ref. 9, P/N 378402R11 and Ref. 10)

1шт.
